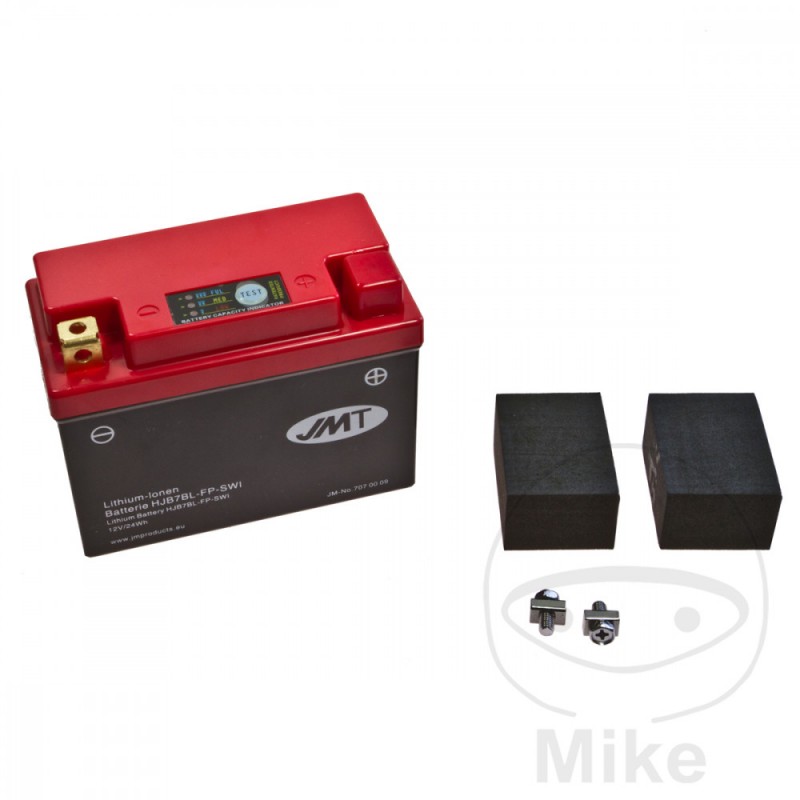

JMT Lithium ion battery with indicator HJB7BL-FP 707.00.09

High-tech lithium-ion batteries from JMT for your motorcycle.

State-of-the-art batteries recognizable by the red casing cover.

Spacer(S)

The battery is equipped with one or more spacers, which are glued under the battery with the supplied adhesive strip, so that the battery fits exactly in the battery box.

Water resistant (W)

The battery is completely waterproof and will not be damaged when the motorcycle is high pressure cleaned.

Indicator (I)

All batteries are equipped with a battery status indicator.

Just press the test button. If all 3 blue LEDs light up, the battery is fully charged (full). If only 2 LEDs light up, it is only half charged (medium). At the latest, when only one LED is on (low), the battery should be charged.

By replacing a standard lead-acid battery with a JMT lithium-ion battery, you can save up to 5kg in weight without significant effort.

The following advantages speak in favor of JMT lithium-ion batteries:

- Approximately 1/3 the weight of a comparable lead-acid battery.

- Unbeatable cost / weight ratio

- It can be installed in any position, since there is no acid.

- does not contain heavy metals

- Balanced discharge / charge of all cells by balancers.

- fast charging with high charging current possible (up to 90% in 6 min)

- very low self-discharge (maximum 5% per month)

- even at high temperatures it remains a good performance up to 60 ° C

- Safe technology and long service life.

Lead-acid batteries can only use 30% of their capacity due to their specific properties.

while almost 100% of the capacity is available for lithium-ion batteries.

For this reason, the lithium versions of JMT batteries require only 1/3 the capacity of a comparable lead-acid battery for the same starting power.

An integrated processor ("balancer") also ensures a uniform state of charge for all cells.

The dimensions of the lithium ion batteries match the dimensions of the original lead-acid batteries using adapters.

The connections are identical, so the battery can be replaced in a few minutes without any further adjustment.

Please note that only suitable chargers can be used for charging. We recommend JMP chargers.

For maximum recommended charging currents, see technical data below

Under no circumstances should chargers that attempt to desulfurize deep discharge batteries below 10 volts with a voltage greater than 14.9 volts be used before actual charging begins.

The maximum charging voltage of 14.9 volts must never be exceeded.

The manufacturer guarantees a sufficient starting capacity down to -5 degrees Celsius.

TECHNOLOGY

JMT lithium ion batteries use iron phosphate (LiFePO4) as the cathode material and use the lithium polymer process in their manufacturing.

As a result, they cannot catch fire or explode in normal operation.

The technology and manufacturing process guarantee the highest safety standard for lithium batteries.

- Maintenance-free 12V lithium-ion battery.

- Energy 24.0 Wh

- Dimensions in mm 120x60x92.

- Recommended charging current 3 A

- Maximum charging current for fast charging 18 A

- Weight 0.5 kg.

- Cold start current 140 A

Comparable in dimensions and connections with:

Yuasa manufacturer number

YB7C-A

12N7A-3A

12N7CZ 3D
VOLTAGE: 12V
CAPACITY: 2AH (10H)
ENERGY CAPACITY: 24WH
VERSION: LITHIUM
ON: YES
CCA AS MANUFACTURER: 120 A
SAE CHECKED WITH JMP-TESTER: 175 A
DIN TESTED WITH JMP-TESTER: 160 A
IN CHECKED WITH JMP-TESTER: 95 A
Length: 120mm
WIDTH: 60MM
HEIGHT: 92MM
READY WEIGHT: 0.5KG
ACID PACK INCLUDED: NO
TYPE OF CONNECTION: FROM ABOVE
TERMINAL/TERMINAL/POSITIVE POLE: FRONT RIGHT
TERMINAL/TERMINAL/NEGATIVE POLE: FRONT LEFT
GAS DRAIN: WITHOUT


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:

COMPATIBLE WITH Yamaha BL 125 Beluga 9,5 CV, 7 kw 1cil. 50W 51F Bastidores: 50W henceforth09101-50W henceforth11000 1985-1989
COMPATIBLE WITH Yamaha TW 125 H Trailway 12 CV, 8,7 kw 1cil. DE011 5EK1 Bastidores: DE011 henceforth00301-- 1999
COMPATIBLE WITH Yamaha TW 125 H Trailway 12 CV, 8,7 kw 1cil. DE011 5EK3 Bastidores: DE011 henceforth09747-- 2000
COMPATIBLE WITH Yamaha TW 125 H Trailway 12 CV, 8,7 kw 1cil. DE011 5EK5 Bastidores: DE011 henceforth19542-- 2001
COMPATIBLE WITH Yamaha TW 125 N Trailway 80 Km/h 12 CV, 8,7 kw 1cil. DE012 5EK2 Bastidores: DE012 henceforth00301-- 1999
COMPATIBLE WITH Yamaha TW 125 N Trailway 80 Km/h 12 CV, 8,7 kw 1cil. DE012 5EK4 Bastidores: DE012 henceforth01270-- 2000
COMPATIBLE WITH Yamaha TW 125 N Trailway 80 Km/h 12 CV, 8,7 kw 1cil. DE012 5EK6 Bastidores: DE012 henceforth01510-- 2001
COMPATIBLE WITH Yamaha TW 200 E Trailway 16 CV, 11,7 kw 1cil. 3AW 10D8 Bastidores: 3AW-118626-- 2008-2015
COMPATIBLE WITH Yamaha TW 200 E Trailway 16 CV, 11,7 kw 1cil. 3LY 3LY1 Bastidores: 3LY henceforth00101-- 1989-1993
COMPATIBLE WITH Yamaha TW 200 E Trailway 16 CV, 11,7 kw 1cil. 3LY 3LY2 Bastidores: 3LY henceforth03101-3LY henceforth05999 1994
COMPATIBLE WITH Yamaha TW 200 E Trailway 16 CV, 11,7 kw 1cil. 3XT 3XTD Bastidores: 3XT henceforth08595-- 2003
COMPATIBLE WITH Yamaha TW 200 E Trailway 16 CV, 11,7 kw 1cil. 3XT 3XTE Bastidores: 3XT henceforth08847-- 2004
COMPATIBLE WITH Yamaha TW 200 E Trailway 16 CV, 11,7 kw 1cil. 3XT 3XTF Bastidores: 3XT henceforth09401-- 2005
COMPATIBLE WITH Yamaha TW 200 E Trailway 16 CV, 11,7 kw 1cil. 3XT 3XTG Bastidores: 3XT henceforth10175-- 2006
COMPATIBLE WITH Yamaha TW 200 E Trailway 16 CV, 11,7 kw 1cil. 3XT 3XTH Bastidores: 3XT henceforth11053-- 2007
COMPATIBLE WITH Yamaha TW 200 Trailway 16 CV, 11,7 kw 1cil. 2JL 2JL Bastidores: 2JL henceforth00101-- 1987-1990
COMPATIBLE WITH Yamaha TW 200 Trailway 16 CV, 11,7 kw 1cil. 2JL 4CS1 Bastidores: 2JL henceforth11101-- 1991
COMPATIBLE WITH Yamaha XC 125 Beluga 8,7 CV, 6,4 kw 1cil. 3TE 3TE1 Bastidores: 3TE henceforth09101-3TE henceforth10901 1990-1992
COMPATIBLE WITH Yamaha XC 125 Beluga 8,7 CV, 6,4 kw 1cil. 3TE 3TE3 Bastidores: 3TE henceforth53101-- 1993-1995
