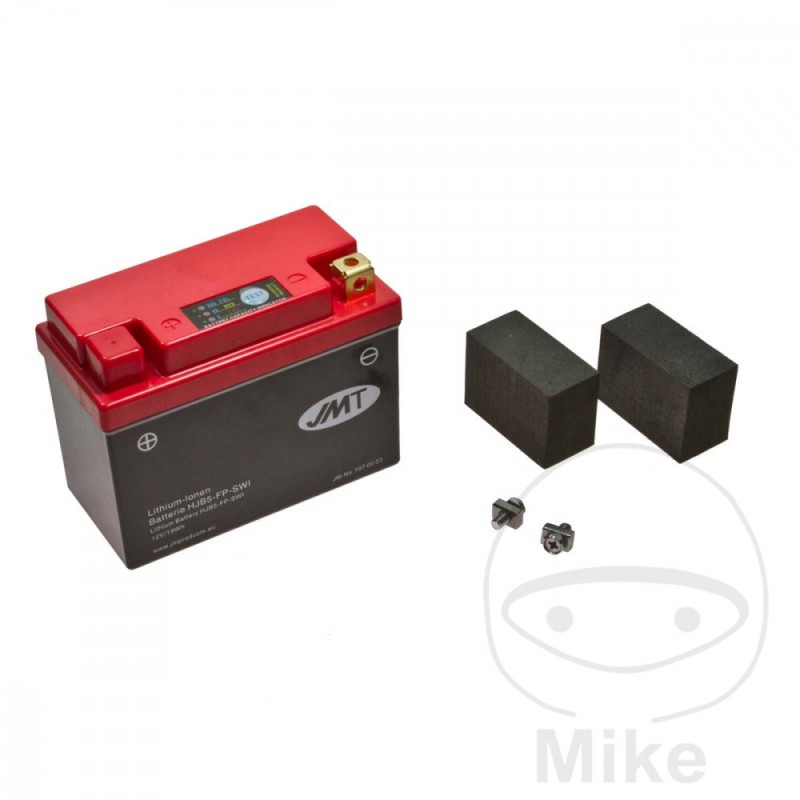

JMT Lithium ion battery with indicator HJB5-FP 707.00.03

High-tech lithium-ion batteries from JMT for your motorcycle.

State-of-the-art batteries recognizable by the red casing cover.

Spacer(S)

The battery is equipped with one or more spacers, which are glued under the battery with the supplied adhesive strip, so that the battery fits exactly in the battery box.

Water resistant (W)

The battery is completely waterproof and will not be damaged when the motorcycle is high pressure cleaned.

Indicator (I)

All batteries are equipped with a battery status indicator.

Just press the test button. If all 3 blue LEDs light up, the battery is fully charged (full). If only 2 LEDs light up, it is only half charged (medium). At the latest, when only one LED is on (low), the battery should be charged.

By replacing a standard lead-acid battery with a JMT lithium-ion battery, you can save up to 5kg in weight without significant effort.

The following advantages speak in favor of JMT lithium-ion batteries:

- Approximately 1/3 the weight of a comparable lead-acid battery.

- Unbeatable cost / weight ratio

- It can be installed in any position, since there is no acid.

- does not contain heavy metals

- Balanced discharge / charge of all cells by balancers.

- fast charging with high charging current possible (up to 90% in 6 min)

- very low self-discharge (maximum 5% per month)

- even at high temperatures it remains a good performance up to 60 ° C

- Safe technology and long service life.

Lead-acid batteries can only use 30% of their capacity due to their specific properties.

while almost 100% of the capacity is available for lithium-ion batteries.

For this reason, the lithium versions of JMT batteries require only 1/3 the capacity of a comparable lead-acid battery for the same starting power.

An integrated processor ("balancer") also ensures a uniform state of charge for all cells.

The dimensions of the lithium ion batteries match the dimensions of the original lead-acid batteries using adapters.

The connections are identical, so the battery can be replaced in a few minutes without any further adjustment.

Please note that only suitable chargers can be used for charging. We recommend JMP chargers.

For maximum recommended charging currents, see technical data below

Under no circumstances should chargers that attempt to desulfurize deep discharge batteries below 10 volts with a voltage greater than 14.9 volts be used before actual charging begins.

The maximum charging voltage of 14.9 volts must never be exceeded.

The manufacturer guarantees a sufficient starting capacity down to -5 degrees Celsius.

TECHNOLOGY

JMT lithium ion batteries use iron phosphate (LiFePO4) as the cathode material and use the lithium polymer process in their manufacturing.

As a result, they cannot catch fire or explode in normal operation.

The technology and manufacturing process guarantee the highest safety standard for lithium batteries.

- Maintenance-free 12V lithium-ion battery.

- Recommended charging current 1.0 A

- Maximum charging current for fast charging 8 A

Comparable in dimensions and connections with:

Yuasa manufacturer number

12N5-4B

12N5.5-4A
VOLTAGE: 12V
CAPACITY: 1.60 AH (10H)
ENERGY CAPACITY: 19.20WH
VERSION: LITHIUM
ON: YES
CCA AS MANUFACTURER: 96 A
PRÜFNORM DES HERSTELLERS: SAE
SAE CHECKED WITH JMP-TESTER: 180 A
DIN TESTED WITH JMP-TESTER: 170 A
IN TESTED WITH JMP-TESTER: 100 A
Length: 120mm
WIDTH: 60MM
HEIGHT: 127
READY WEIGHT: 0.4KG
ACID PACK INCLUDED: NO
TYPE OF CONNECTION: FROM ABOVE
TERMINAL/TERMINAL/POSITIVE POLE: FRONT LEFT
TERMINAL/TERMINAL/NEGATIVE POLE: FRONT RIGHT
GAS DRAIN: WITHOUT
NORMA DE PRUEBA DEL FABRICANTE: SAE


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:

COMPATIBLE WITH Kawasaki H2 750 A Mach 4 74 CV, 54 kw 3cil. H2F Bastidores: H2F-23671-H2F-32200 1973
COMPATIBLE WITH Kawasaki H2 750 B Mach 4 74 CV, 54 kw 3cil. H2F Bastidores: H2F-32201-H2F-42546 1974
COMPATIBLE WITH Kawasaki H2 750 C Mach 4 71 CV, 52 kw 3cil. H2F Bastidores: H2F-42547-- 1975
COMPATIBLE WITH Kawasaki H2 750 Mach 4 74 CV, 54 kw 3cil. H2F Bastidores: H2F henceforth0001-H2F-23670 1972
COMPATIBLE WITH Kawasaki KH 250 B 26 CV, 19 kw 3cil. KH250B 1 Bastidores: KH250B henceforth00001-KH250B henceforth08600 1976
COMPATIBLE WITH Kawasaki KH 250 B 26 CV, 19 kw 3cil. KH250B 2 Bastidores: KH250B henceforth08601-- 1977-1980
COMPATIBLE WITH Kawasaki KH 400 A 36 CV, 26 kw 3cil. S3F 3 Bastidores: S3F-26200-S3F-33600 1976
COMPATIBLE WITH Kawasaki KH 400 A 36 CV, 26 kw 3cil. S3F 4 Bastidores: S3F-33601-- 1977-1978
COMPATIBLE WITH Kawasaki S1 250 A Mach 1 28 CV, 20,6 kw 3cil. S1F Bastidores: S1F henceforth4691-S1F-12000 1973
COMPATIBLE WITH Kawasaki S1 250 B Mach 1 28 CV, 20,6 kw 3cil. S1F Bastidores: S1F-12001-S1F-16299 1974
COMPATIBLE WITH Kawasaki S1 250 C Mach 1 28 CV, 20,6 kw 3cil. S1F Bastidores: S1F-16300-- 1975
COMPATIBLE WITH Kawasaki S1 250 Mach 1 28 CV, 20,6 kw 3cil. S1F Bastidores: S1F henceforth0001-S1F henceforth4690 1971-1972
COMPATIBLE WITH Kawasaki S2 350 A Mach 2 41 CV, 30 kw 3cil. S2F Bastidores: S2F henceforth0000-- 1973
COMPATIBLE WITH Kawasaki S2 350 Mach 2 41 CV, 30 kw 3cil. S2F Bastidores: S2F henceforth0001-- 1972
COMPATIBLE WITH Kawasaki S3 400 A Mach 2 40 CV, 29 kw 3cil. S3F Bastidores: S3F-14300-S3F-26199 1975
COMPATIBLE WITH Kawasaki S3 400 Mach 2 40 CV, 29 kw 3cil. S3F Bastidores: S3F henceforth0001-S3F-14299 1974
COMPATIBLE WITH Yamaha MT 125 15 CV, 11 kw 1cil. RE114 5D7C Bastidores: RE114 henceforth00101-- 2014-2015
COMPATIBLE WITH Yamaha MT 125 15 CV, 11 kw 1cil. RE114 5D7L Bastidores: RE114 henceforth00109-- 2014-2015
COMPATIBLE WITH Yamaha MT 125 15 CV, 11 kw 1cil. RE114 BR31 Bastidores: RE114-100102-- 2016
COMPATIBLE WITH Yamaha MT 125 15 CV, 11 kw 1cil. RE114 BR33 Bastidores: RE114-100101-- 2016
COMPATIBLE WITH Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE115 5D7D Bastidores: RE115 henceforth00091-- 2014-2015
COMPATIBLE WITH Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE115 5D7M Bastidores: RE115 henceforth00090-- 2014-2015
COMPATIBLE WITH Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE115 BR32 Bastidores: RE115-105101-- 2016
COMPATIBLE WITH Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE115 BR34 Bastidores: RE115-100101-- 2016
COMPATIBLE WITH Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE292 BR35 Bastidores: RE292 henceforth00095-- 2017
COMPATIBLE WITH Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE292 BR36 Bastidores: RE292 henceforth10101-- 2018
COMPATIBLE WITH Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE292 BR37 Bastidores: RE292 henceforth22351-- 2019
COMPATIBLE WITH Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE392 B6G1 Bastidores: RE392 henceforth00060-- 2020
COMPATIBLE WITH Yamaha MT 125 A MTN125-A ABS 15 CV, 11 kw 1cil. RE402 B6G2 Bastidores: RE402 henceforth00080-- 2021
COMPATIBLE WITH Yamaha WR 125 R 15 CV, 11 kw 1cil. - 22BB Bastidores: --- 2014-2017
COMPATIBLE WITH Yamaha WR 125 R 15 CV, 11 kw 1cil. DE071 22B1 Bastidores: DE071 henceforth01912-- 2009
COMPATIBLE WITH Yamaha WR 125 R 15 CV, 11 kw 1cil. DE071 22B3 Bastidores: DE071 henceforth00029-- 2010
COMPATIBLE WITH Yamaha WR 125 R 15 CV, 11 kw 1cil. DE071 22B5 Bastidores: DE071 henceforth05401-- 2011-2012
COMPATIBLE WITH Yamaha WR 125 R 15 CV, 11 kw 1cil. DE071 22B7 Bastidores: DE071 henceforth07401-- 2013
COMPATIBLE WITH Yamaha WR 125 X 15 CV, 11 kw 1cil. DE072 22B2 Bastidores: DE072 henceforth00801-- 2009
COMPATIBLE WITH Yamaha WR 125 X 15 CV, 11 kw 1cil. DE072 22B4 Bastidores: DE072 henceforth00026-- 2010
COMPATIBLE WITH Yamaha WR 125 X 15 CV, 11 kw 1cil. DE072 22B6 Bastidores: DE072 henceforth08401-- 2011-2012
COMPATIBLE WITH Yamaha WR 125 X 15 CV, 11 kw 1cil. DE072 22B8 Bastidores: DE072 henceforth12401-- 2013
COMPATIBLE WITH Yamaha WR 125 X 15 CV, 11 kw 1cil. DE072 22BC Bastidores: DE072 henceforth22401-- 2014-2017
COMPATIBLE WITH Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D78 Bastidores: RE111 henceforth00073-- 2014
COMPATIBLE WITH Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7K Bastidores: RE111 henceforth00070-- 2014
COMPATIBLE WITH Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7P Bastidores: RE111 henceforth06102-- 2015
COMPATIBLE WITH Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7R Bastidores: RE111 henceforth06101-- 2015
COMPATIBLE WITH Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7S Bastidores: RE111 henceforth11101-- 2016
COMPATIBLE WITH Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7W Bastidores: RE111 henceforth11102-- 2016
COMPATIBLE WITH Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE112 5D7E Bastidores: RE112 henceforth00098-- 2015
COMPATIBLE WITH Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE112 5D7T Bastidores: RE112 henceforth04102-- 2016
COMPATIBLE WITH Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE112 5D7X Bastidores: RE112 henceforth04101-- 2016
COMPATIBLE WITH Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE291 BR61 Bastidores: RE291 henceforth00092-- 2017
COMPATIBLE WITH Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE291 BR62 Bastidores: RE291 henceforth10101-- 2018
