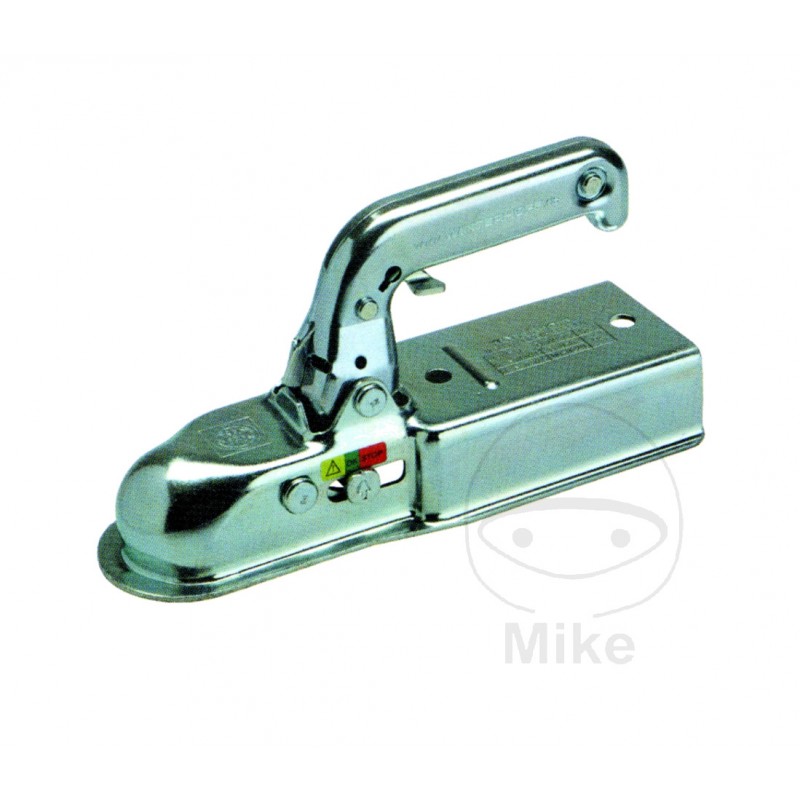

WINTERHOFF Ball Head Hitch 800 KG 70 MM 3380064

WINTERHOFF WW 8-H Ball Coupling - Sheet steel model, available in many designs for all drawbar connections. Practical one-handed operation. Large handle. Handle with integrated safety to prevent accidental opening. The connector bracket can be mounted on the handle. Multifunction display on the side of the housing for monitoring: Coupling: open/closed; Wear: clutch/ball. The coupling opens by tilting the handle forward. Clutch engages by pushing down or applying pressure. CE Approval No. 00-0229 e4. Anti-theft protection: Mortise lock in the handle. Technical Specifications: Drawbar - Ø: 70 mm (angled). Towing capacity: 800 kg. Permissible vertical load: 75 kg. Holes: 11 mm. Connection: 90 mm.
Shape: angle
ZUGROHR (DEICHSEL): 70 MM
SCREWED IN: FROM ABOVE
HOLE SPACING: 90 MM
HOLE: 11MM
ACHLAST: 800 KG
STÜTZLAST: 75 KG
