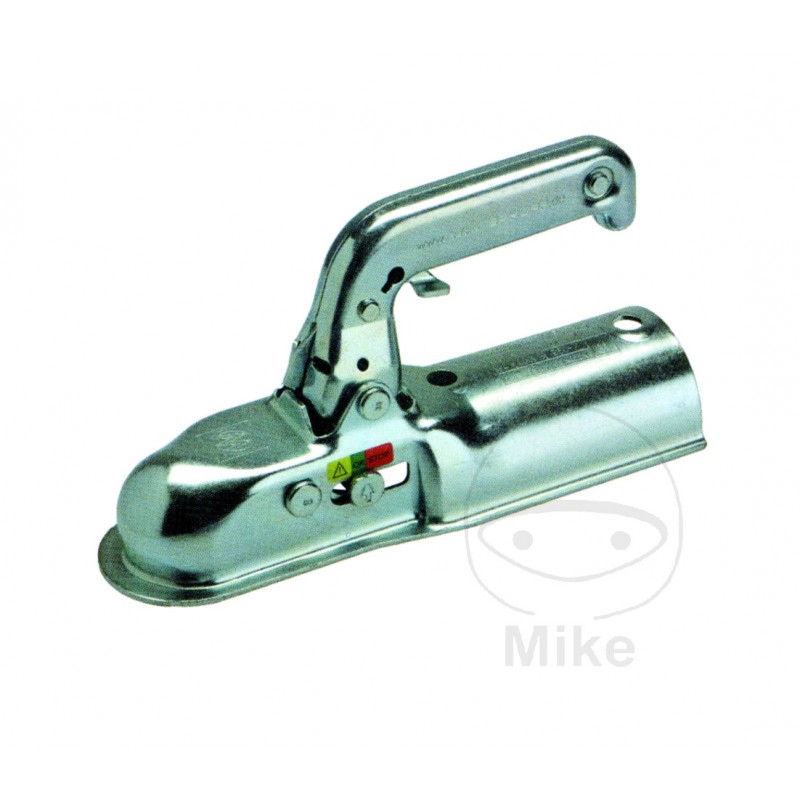

WINTERHOFF Ball Head Hitch 800 KG 70 MM 3380061

WINTERHOFF WW 8 Ball Coupling - Sheet steel model, available in many designs for all drawbar connections. Practical one-handed operation. Large handle. Handle with integrated safety to prevent unintentional opening. The connector bracket can be mounted on the handle. Multifunction display on the side of the housing for monitoring: Coupling: open/closed; Wear: clutch/ball. The coupling opens by tilting the handle forward. Clutch engages by pushing down or applying pressure. CE Approval No. 00-0229 e4. Anti-theft protection: Mortise lock in the handle. Technical Specifications: Version: C. Drawbar - Ø: 70 mm. Towing load: 800 kg. Permissible vertical load: 75 kg. Holes: 12.5 mm. Connection: 90 mm.
FORMA: REDONDO
ZUGROHR (DEICHSEL): 70 MM
SCREWED IN: FROM ABOVE
HOLE SPACING: 90 MM
HOLE: 12.5MM
ACHLAST: 800 KG
STÜTZLAST: 75 KG
