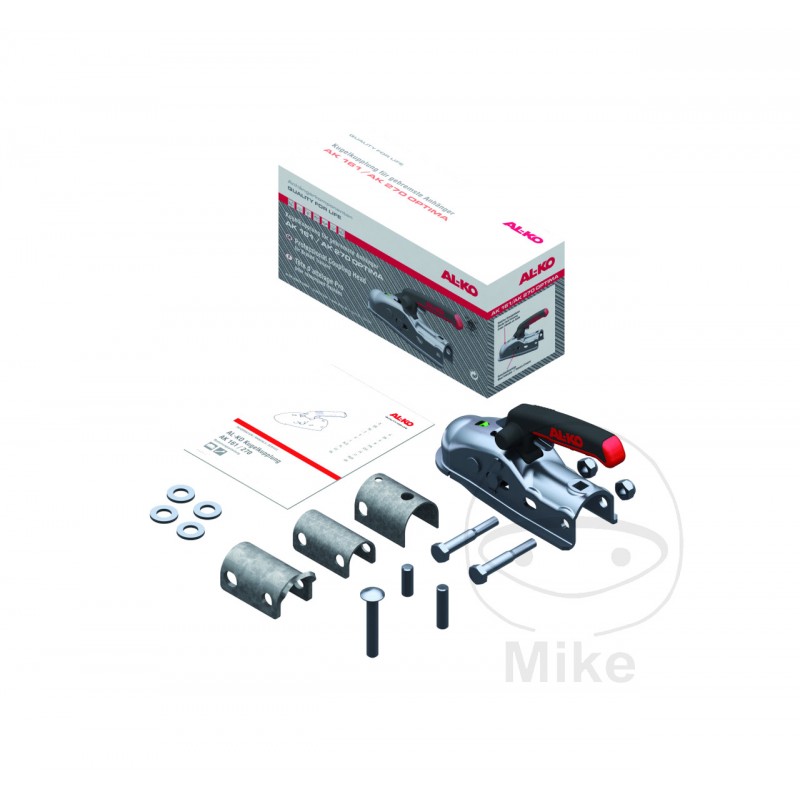

AL-KO Ball Head Hitch 2700KG 35/40/45/50/54 MM 3381571

AL-KO AK 270 Ball Coupling Suitable for all common towing devices up to 2300 kg (with AL-KO up to 3000 kg) with horizontal or transverse holes. Safety display: If the green cylinder is visible in the coupled state, the coupling is correctly positioned on the trailer hitch of the towing vehicle. Wear indicator: An additional display on the coupling handle shows whether: A) the wear limit of the towing vehicle's ball hitch or B) the trailer hitch has been reached. Flat handle: The handle complies with the latest regulations and is very flat, so the tailgate can be opened without damage, even on towing vehicles with a low loading sill. Mounting: As with all AL-KO couplings, assembly is very simple. The old coupling is unscrewed and the new one is screwed on with two screws. Technical specifications: Total permissible weight (with AL-KO): up to 2300 (2700) kg Support load: 120 kg D-value: 31.0 kN Holes: horizontal and cross Material: sheet steel Weight: 1.8 kilograms Dimensions (see image 2) Connection A Ø: 35 + 50 mm (horizontal) / 45 + 50 (transverse) mm Connection B: 50 + 54 mm (horizontal) / 40 (transverse) mm Connection C: 11 mm (horizontal) / 18 (transverse) mm Length D: 168 mm
FORMA: REDONDO
ZUGROHR (DEICHSEL): 35, 40, 45, 50, 54 MM
SCREWED: FROM THE SIDE, FROM ABOVE
HOLE SPACING: 40, 54 MM
HOLE: 12.5MM
ACHLAST: 2700 KG
STÜTZLAST: 120 KG
