HIGHSIDER Side Mount Headlight Headlamp FRAME-R1 11 1122906002

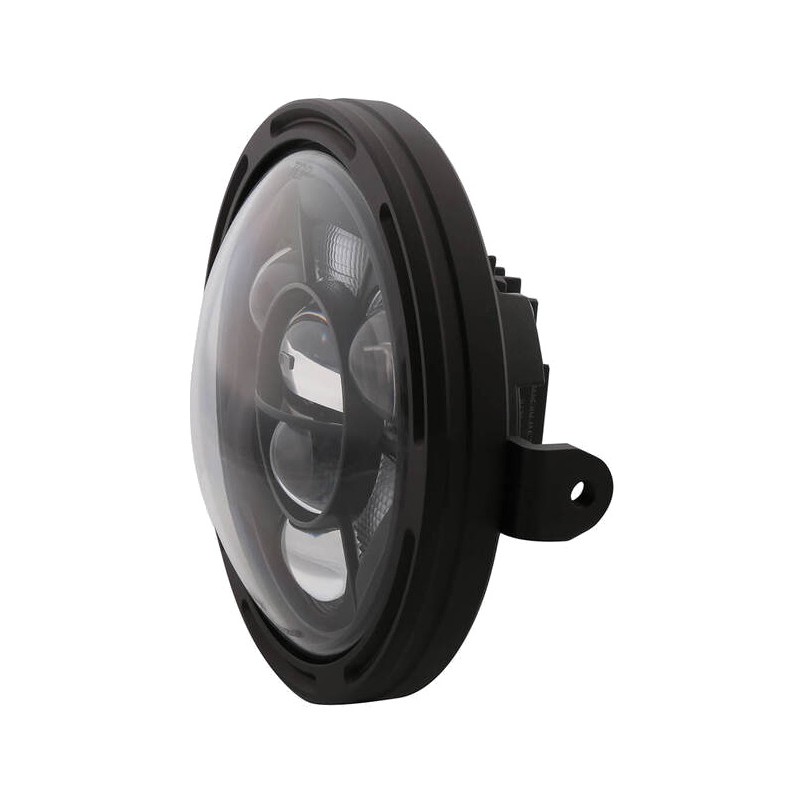

HIGHSIDER Frame-R1 Type 11 7 Inch LED Headlight. Assembly without casing, approved.

Every inch counts to get the headlight as snug as possible between the two fork tubes. MAXIMUM REDUCTION was the premise on which the development of the innovative Frame headlight support was based. With the refined aluminum ring, for the first time it is possible to freely mount various LED headlamp optics in a vertical position on the motorcycle. By deliberately dispensing with the headlight housing, an unbeatably narrow mounting position is possible and, in addition, better cooling of the LED unit is achieved. On many motorcycles, the H4 or H7 bulb shines more or less flickering. Seeing better often also means being seen better, which is not unimportant as summer turns to autumn and cars are increasingly equipped with bright daytime running lights. Whether as a replacement to improve visibility at night, to make you more recognizable during the day or to give your bike a nicer look, if you are looking for a stylish and innovative electric headlight, the Frame-R1 LED Headlight is an excellent choice. The integrated LED daytime running light on the Type 11 is the perfect way to improve visibility during the day. Ellipsoidal lenses combined with powerful LEDs turn night into day, combining a strong safety plus with a unique polarizing look. The headlight is available with bottom or side mounting.

The side mount brackets can be mounted in three positions, thus compensating for the 32mm mounting depth and 46mm width.

Characteristic:

7 inch round headlight with CNC mounting ring and mounting kit.

Mounts WITHOUT headlight housing

improves cooling

Many installation options

flat installation

Modern, elegant-innovative look

Transparent crystal

reflector black

The reflector emits an asymmetric luminous flux, approved only for right-hand traffic

High beam, low beam, position light and daytime running light function

Approved, you do not have to register anything

Give your motorcycle its own unmistakable style! The unusual design and the perfect technology of the HIGHSIDER headlight series will make your motorcycle an absolute eye-catcher.

Dimensions:

A diameter = 170 mm

GA diameter = 165mm

Diameter I = 160 mm

T = 60 mm

R = 9mm

Total depth from glass to cooling fins: 99.10 mm

Connections:

Power input: 3-pin connector

Black wire = ground (-)

White wire = dipped beam (+)

blue cable = high beam (+)

TFL

Black wire = ground (-)

Brown wire = daytime running lights (+)

Gray wire = parking light (+)

Content: 1 unit
DIAMETER Ø (MM): 170
PACKAGING: PER UNIT
POSITION: FORWARD
LIGHT TYPE: LED
