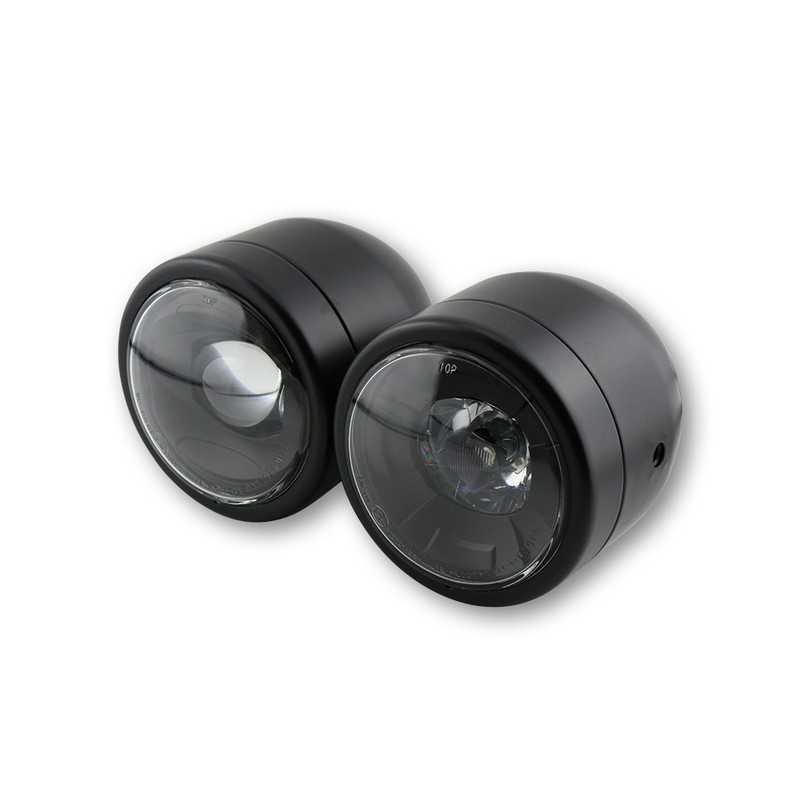

SHINYO Side Mount Dual Headlight LED 1108493001VAR

SHIN YO Led headlight Twin with low beam and high beam, the Led headlight set in a sturdy metal housing for side mounting gives your bike the special look. The 4 inch low beam and driving lamp is universally usable for all motorcycle conversions.

Available in chRome-plated and black version, E-tested.

It is necessary to connect a parking light separately, as this is not integrated in any of the headlights.



Dimensions:

Height: 107 mm

Width: 215 mm

Depth: 130 mm

Depth from thread: 60 mm

Diameter Inserts: 91 mm

Cable length: approx. 600 mm



Housing:

material: metal

fixing: lateral



Connections:

white = dipped beam (+)

blue = high light (+)

green = ground (-)

With wiring harness and 3-pin plug for H4



Scope of delivery: 1 piece



Note:

Without parking light, please order separately if necessary.



Daytime running lights/parking light combinations:

Article no. 222-503 SHIN YO Led daytime running light with parking light function, black with universal holder

article no. 222-511 HIGHSIDER Led daytime running light PENTA with 5 Leds, parking light function



parking light:

article no. 223-323 SHIN YO Universal TRI-Led parking light with holder and self-adhesive foil

article no. 223-324 SHIN YO Mini Led parking light, round, lens diameter 14.8 mm

article no. 223-325 SHIN YO Universal Led parking light, lens diameter 23 mm

article no. 223-330 SHIN YO Led parking light, round, diameter 24.7 mm, with universal holder

article no. 223-330 223-331 SHIN YO Led parking light, round, diameter 24.7 mm, with M12 screw

article no. 223-358 SHIN YO Led parking light Micro PIN for installation, tinted glass

article no. 223-359 SHIN YO Led parking light MODUL 2 with 2 SMDs, oval, tinted glass, for installation
DIÁMETRO Ø (MM): 90
APPROVAL: CE APPROVAL
COMPOSITION: STEEL
COVER COLOR: TRANSLUCENT
PACKAGING: PER UNIT
COLOUR: CHROME
POSITION: FRONT
LIGHT TYPE: LED
ANCHURA (MM): 215
POSITION: FORWARD
ANCHURA (MM): 218
