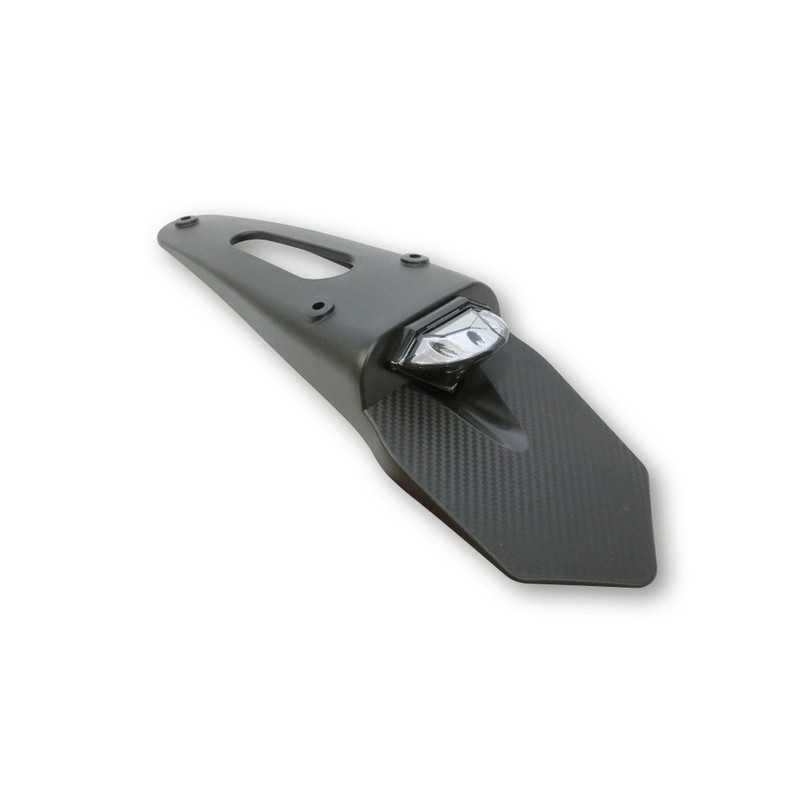

SHINYO Taillight with universal rear plastic LED 1107757

SHIN YO LED taillight with rear plastic

Diamond taillight with tinted glass, rear plastic and splash guard. Suitable for universal mounting using black plastic at the rear of the vehicle, E-tested.



Dimensions rear plastic

Width: 95 mm

Length (top to taillight): 200 mm



Dimensions splash guard

Width: 110 mm

Length: 130 mm

Distance of the three mounting holes: 65 mm to the two parallel holes at the bottom and from there 145 mm each to the upper hole.



Dimensions taillight

Width: 65 mm

Height: 45 mm

Depth: 38 mm



Connections:

Black wire = ground (-)

Red cable= Stoplight (+)

Yellow Wire = Tail Light (+)



Scope of supply:

1 piece



Note: Without license plate light
APPROVAL: CE APPROVAL
COMPOSICIÓN: ABS
COVER COLOR: TRANSLUCENT
PACKAGING: PER UNIT
COLOUR: SMOKED
POSICIÓN: TRASERO
LIGHT TYPE: LED
ANCHURA (MM): 45
LONGITUD (MM): 65
