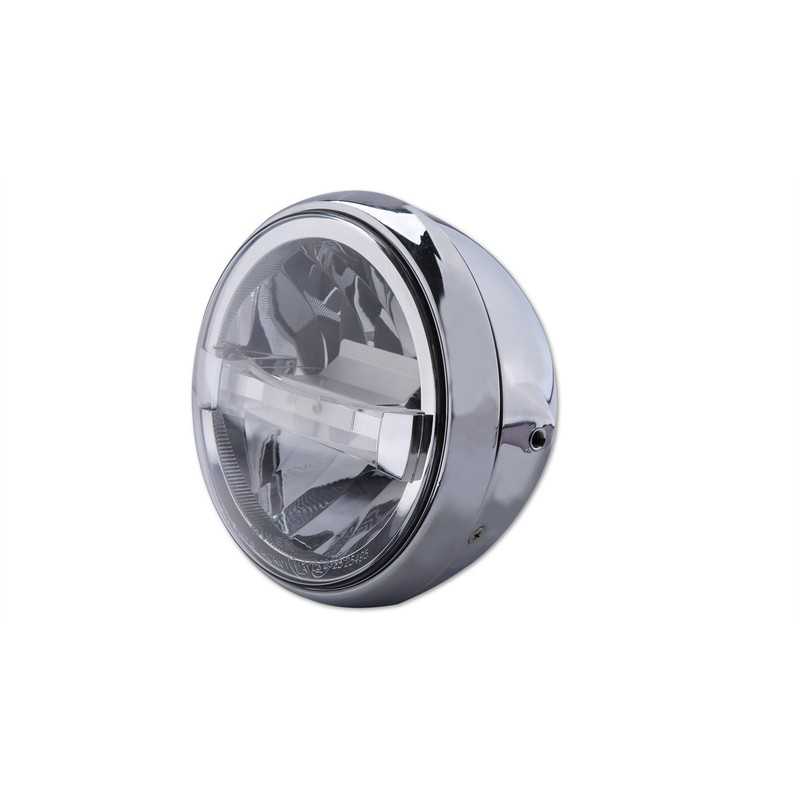

HIGHSIDER spotlight LED BRITISH-STYLE TYPE 4 1108703001VAR

Puristically shaped headlight with metal housing for lateral mounting. The simple design is ideal for classics, roadsters and customized bikes.

The chrome-plated reflector with clear glass also has a high beam, low beam, parking and daytime running light function. The daytime running light and position light are mounted in a central strip, so that a very beautiful optical image is created - the dipped beam lights up above the strip, the main beam light correspondingly below. The reflector emits an asymmetrical luminous flux - only approved for right-hand traffic -, E-examined.

Our highlights give your bike an unmistakable style! The unusual design and the perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions:

Housing diameter (hole spacing at the same time): 190 mm

Heating insert diameter: 178 mm

housing depth: 140 mm

Distance between mounting holes - Housing front edge: approx. 47 mm

Distance between mounting holes - Housing end: approx. 80 mm

Diameter cable guide: 35 mm

Fixing: side with M8 threaded screws

Connections:

Black wire = ground (-)

Blue wire = low beam (+), power consumption at 12V: 1.8A, 22W

Yellow wire = high beam (+), power consumption at 12V: 1.3A, 13W

Black wire = ground (-)

TFL:

Black wire = ground (-)

Red cable = daylight (+), consumption at 12V: 1.2A, 14W

White cable = position light (+), power consumption at 12V: 0,2A, 2,4W

scope of supply: 1 piece incl. 3 pin connector

Optional available:

headlight insert TYPE 4, chrome, art. no.No.: 226-018

Notes:

- Use asymmetrical, approved for right-hand traffic only.

- The enclosed 3-pole standard plug must be installed by the customer after reflector installation.

View of plug contacts:

Driving light (yellow) = right-hand

Dipped beam (blue) = top

ground (black) = left-hand

DIÁMETRO Ø (MM): 190
APPROVAL: CE APPROVAL
COMPOSITION: STEEL
COVER COLOR: TRANSLUCENT
PACKAGING: PER UNIT
COLOUR: BLACK
POSITION: FORWARD
LIGHT TYPE: LED
