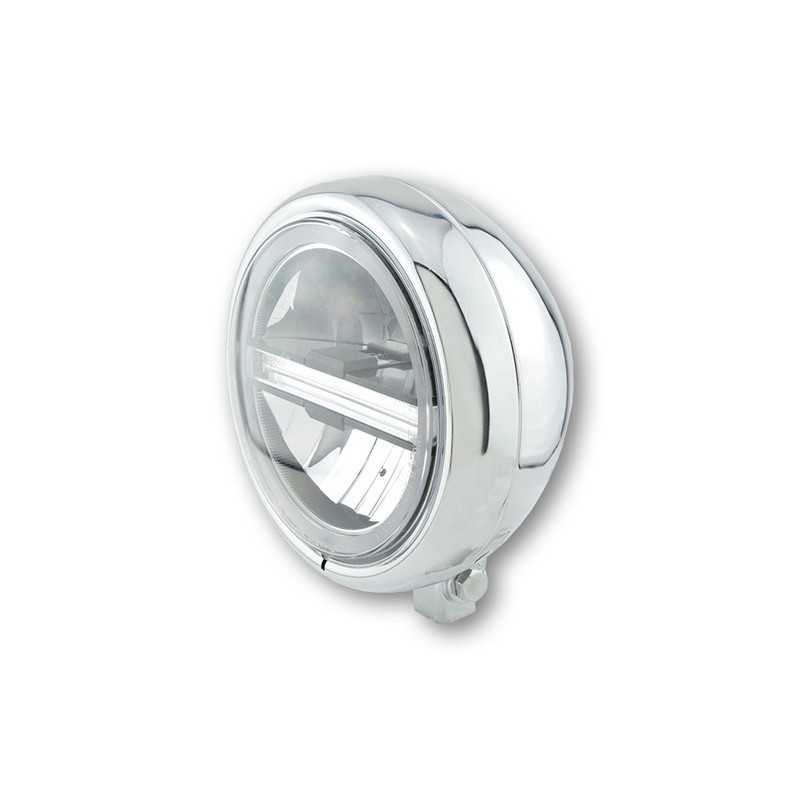

HIGHSIDER HEADLIGHT, FRONT 5 3/4" LED PECOS TYPE 6 TFL 1108622001VAR

HIGHSIDER 5 3/4 inch LED headlight PECOS TYPE 6 with TFL, black matt or chrome, E-approved

Puristically shaped main headlight with metal housing for lower mounting. The PECOS TYP 6 is characterised by the latest lighting technology and the extraordinary lighting design. The special feature of this LED headlight is the additional equipment with daytime running light and parking light ring. The daytime running light for even greater visibility in road traffic is located in the centrally positioned strip. In the upper half of the headlamp the dipped beam lights up and when the main beam is switched on both halves light up.

Stunning - give your bike a distinctive style! The unusual design and perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Features:

- Bulb: LED

- Glass: clear

- Chrome reflector with TFL/DRL and parking light ring

- Mounting point: bottom

Dimensions:

Case diameter: 165mm

Depth: 135mm

Connections:

Power input: 3-pin connector

white = dipped beam (+)

blue = high light (+)

green = ground (-)

Red = TFL/DRL (+) to ignition plus

Brown = parking light (+)

Scope of delivery: 1 piece

Optional Orderable:

- Order. No.: 208-108 HIGHSIDER DRL CONTROL- BOX CB1 , Daytime running light control box for vehicles without light switch, 12V

- Best. No.: 240-044 Light switch on/off with clamp for handlebar mounting

Note:

If it should happen with this product in connection with the HIGHSIDER DRL CONTROL BOX CB1 (208-108) that the headlight does not switch daytime running light after starting the engine, please proceed as follows:

Install the enclosed 120 Ohm resistor as indicated in the instructions.

Now the headlight should also switch the daytime running light.

DIAMETER Ø (MM): 165
APPROVAL: CE APPROVAL
COMPOSITION: STEEL
COVER COLOR: TRANSLUCENT
PACKAGING: PER UNIT
COLOUR: CHROME
POSITION: FORWARD
LIGHT TYPE: LED
WIDTH (MM): 165
