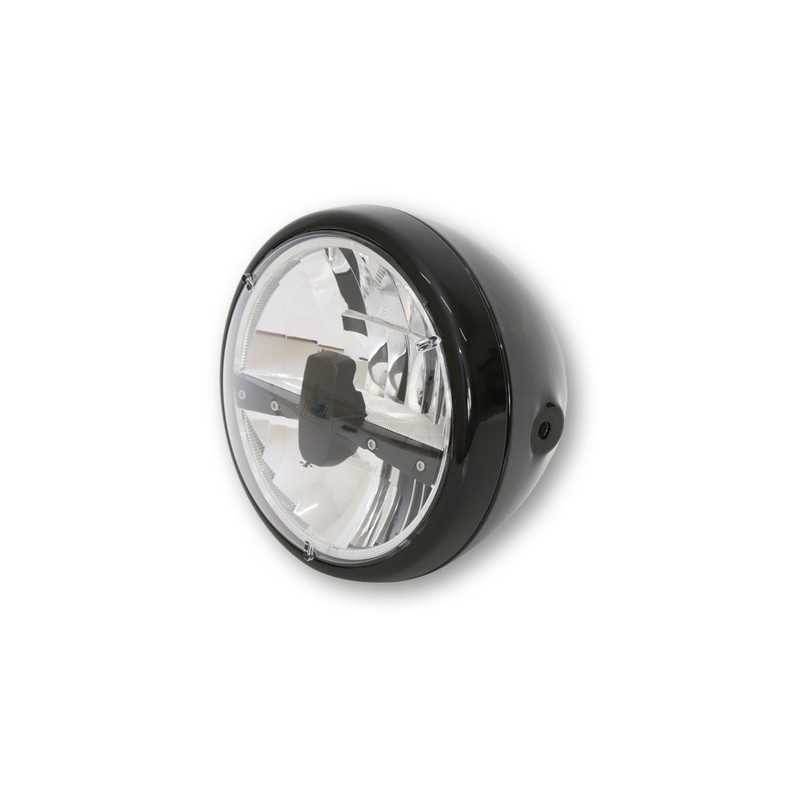

HIGHSIDER HEADLIGHT, FRONT 7" LED RENO TYPE 3 1108616001VAR

HIGHSIDER 7 inch LED spotlight RENO TYP 3 for side mounting n innovative power LED spotlight with sidelight function and clear glass. The oval metal case features a chrome-plated, asymmetrical - right-hand traffic only - reflector, E-approved. Our highlights give your bike an unmistakable style! The fancy design and the perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Maße headlights: Housing diameter: 200 mm Headlight insert diameter: 178 mm Housing depth: 160 mm Distance between mounting holes (center - center): 170 mm Distance between mounting hole (center) and housing end: approx. 90 mm Fixing: lateral with M8 threaded bolts Connections: 3-pin type A female connector 210 mm cable length (included) Green cable = ground (-) Blue cable = high beam (+) White cable = low beam (+) At the reflector in the headlight housing: Black cable = ground (-) Red cable = low beam (+), power consumption: at 12 volts 18 watts, approx. 1132 lumens.

DIÁMETRO Ø (MM): 200
APPROVAL: CE APPROVAL
COMPOSITION: STEEL
COVER COLOR: TRANSLUCENT
PACKAGING: PER UNIT
COLOUR: BLACK
POSITION: FORWARD
LIGHT TYPE: LED
