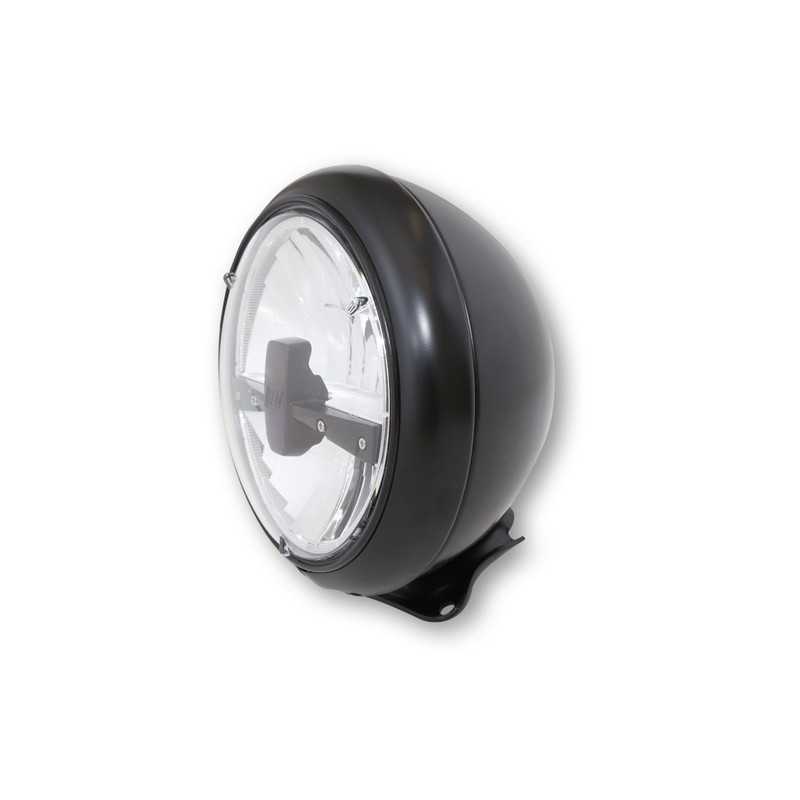

HIGHSIDER HEADLIGHT, FRONT 7" LED HD STYLE TYPE 3 1108615002

HIGHSIDER 7-inch LED headlight HD-STYLE TYPE 3 for lower mounting n Stylish-innovative power LED headlight in a puristic design with sidelight function and round, clear glass. The metal case is available in black or chrome, the bezel and asymmetric insert are chrome plated, E-marked and approved for right-hand traffic only. The bright joy gives your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlamp series make it a highlight in any case! Dimensions: Case diameter: 220 mm Headlight insert diameter: 178 mm Depth: 155 mm Distance between mounting holes on bracket (center - center): 65 mm Connections on reflector in headlight housing: Black cable = Ground (-) Red cable = Low beam (+), power consumption: at 12 Volt 18 Watt, approx. 1132 Lumen. White cable = high beam (+), power consumption: at 12 Volt 30 Watt, approx. 1770 Lumen. Brown cable = parking light (+), power consumption: at 12 Volt 0.7 Watt Available in different colors. Scope of supply: 1 piece including mating plug (connecting plug) with 210 mm cable, for H4 halogen bulbs, connections: Green cable = ground (-) Blue cable = high beam (+) White cable = low beam (+) Note 1: Asymmetrical use, approved for right-hand traffic only. Note 2: If this headlight is to be installed on a BMW R nine T 2017, the additional resistor with article number 207-032 is required. Optionally available replacement insert chrome: Item no.: 226-014

DIÁMETRO Ø (MM): 220
APPROVAL: CE APPROVAL
COMPOSITION: STEEL
COVER COLOR: TRANSLUCENT
PACKAGING: PER UNIT
COLOUR: BLACK
POSITION: FORWARD
LIGHT TYPE: LED
