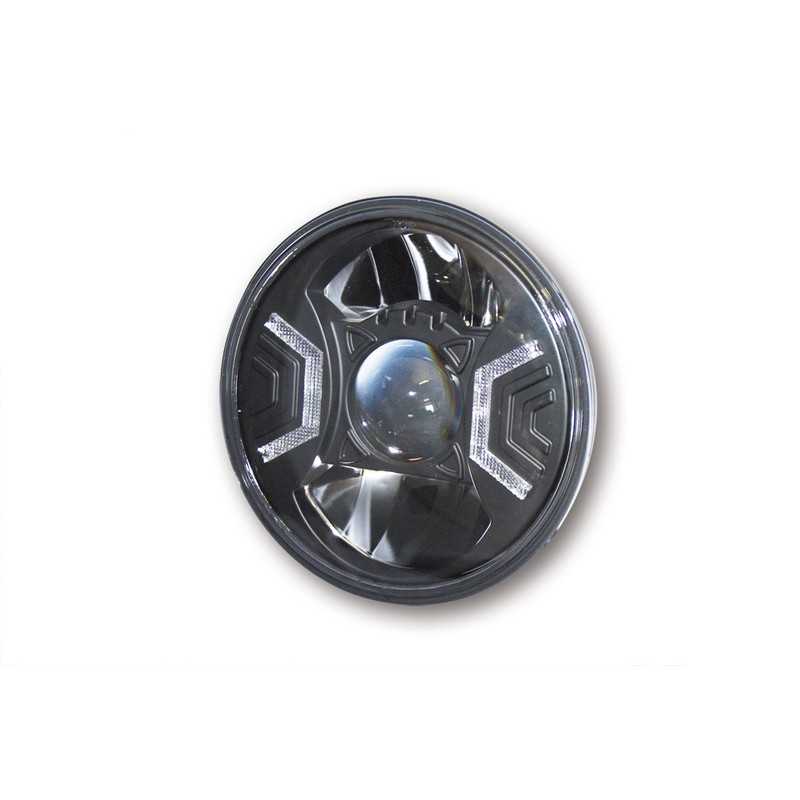

HIGHSIDER headlight head light LED TYPE 2 7" 1108024

HIGHSIDER 7" LED Headlight Insert TYPE 2 This round, black or chrome reflector has high beam, low beam and parking light functions and emits an asymmetrical luminous flux - only approved for right-hand traffic - E-approved. See and be seen Give your bike an unmistakable style! The fancy design and the perfect technology of the HIGHSIDER headlight series make it a highlight! Maße: Diameter A = 176 mm Diameter GA = 165 mm Diameter I = 160 mm Diameter Heat sink K = 99 mm T = 81 mm R = 8 mm Technical data: Power consumption at 12,5 Volt DC: Dipped beam: approx. 1.6 amperes (20 watts). 12 volts 1450 lumens Only the upper reflector and the middle ellipsoid insert are lit. High beam: approx. 1.6 amperes (20 watts). 12 volts 1582 lumens Only the upper and lower reflectors are lit. The middle ellipsoid insert stops when the headlight flashes. Connections: The following 3 cables end in a combination plug: Black = ground (-) Red = plus high beam (+). Blue = Plus low beam (+). Additional 2 cables for parking light: Black = Ground (-) Red = Parking light (+) White= Connection for control indicator (can be used optionally) Scope supplied: 1 piece Notes: Asymmetrical use, approved for right-hand traffic only. The reflector can also be ordered complete with black housing: Art.-No. 223-184 and 223-131.
APPROVAL: CE APPROVAL
COVER COLOR: TRANSLUCENT
LIGHT TYPE: LED
