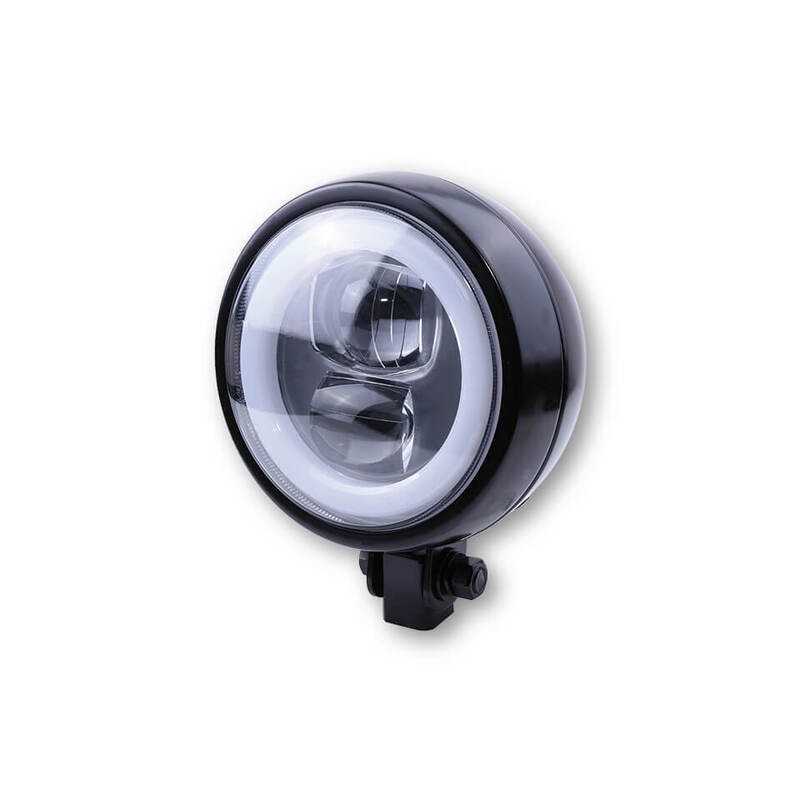

HIGHSIDER HEADLIGHT, FRONT LED FLAT TIPO 9 1111113

HIGHSIDER 12 cm LED headlight FLAT TYPE 9 with parking light ring, E-approved

Smallbut still robust. Powerful LED technology solidly packed in a steel housing with round shape and flat back. Tested main headlamp with high beam, low beam and parking light function.The dipped beam is at the bottom and the main beam at the top. The LED parking light is ring-shaped and encloses the reflector, forming a ring of light.


Dimensions:

Diameter of housing: 138 mm

Diameter of insert: 120 mm

Depth of housing: 95 mm

Fastening: Version lateral M8Thread, L:16 mm or variant below M10 screw, L:25 mm

Weight: 0,992 kg

Connections:

Power consumption: 3-pin connector

Red = high beam (+)

white = dipped beam (+)

Green = Position light (+)

black = Mass (-)

APPROVAL: CE APPROVAL
COMPOSITION: STEEL
COVER COLOR: TRANSLUCENT
COLOUR: BLACK
POSITION: FORWARD
LIGHT TYPE: LED
