HIGHSIDER HEADLIGHT, FRONT 5 3/4 LED TIPO 6 1108028

HIGHSIDER 5 3/4 inch LED main headlamp unit TYPE 6, E-approved

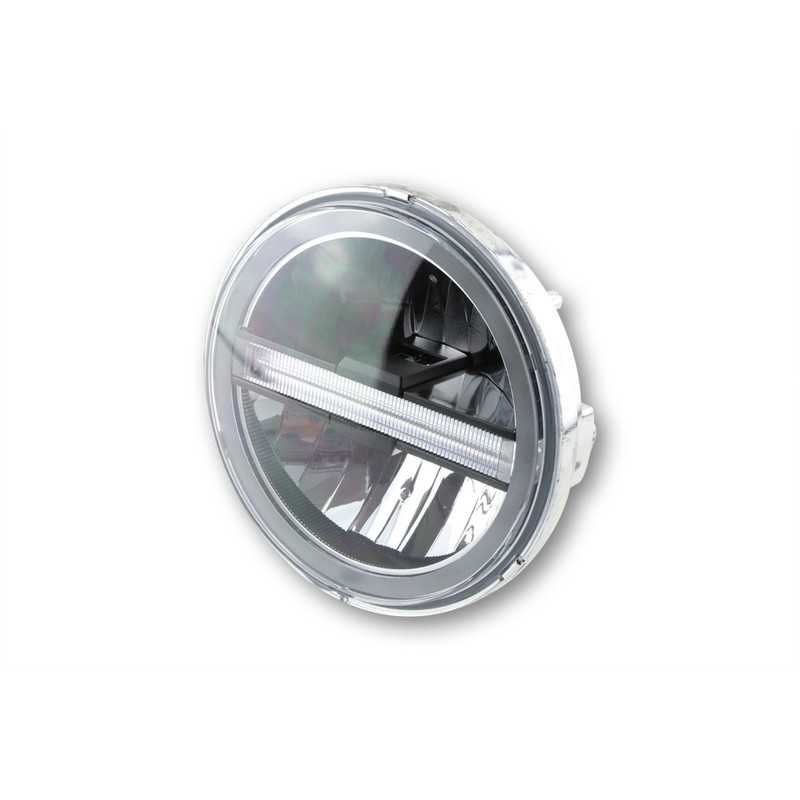

This round, chrome-plated reflector has high beam, low beam, daytime running light and a parking light ring. The daytime running light is located in the middle of the strip and the dipped beam is in the upper half of the insert. When the main beam is switched on, both halves light up.



Our highlights - give your bike your distinctive style! The unusual design and the perfect technology of the HIGHSIDER headlight series makes your bike a highlight in any case!



Dimensions:

Diameter A = 143 mm

Diameter GA = 133 mm

Diameter I = 131 mm, T = 70 mm, R = 13 mm

Cable length: 400 mm



Power consumption: (3 Pin connector)



Connections:

white = dipped beam (+)

Blue = main beam (+)

green = ground (-)

Red = TFL/DRL (+) to ignition plus

Brown = parking light (+)



Supplied: 1 piece incl. 1x plug housing



Note:

Daytime running lights can also be used on vehicles without a light switch. For this purpose, e.g. gram. B. The following components are required:



- Best. No.: 240-044 LIGHT ON/OFF SWITCH

- Order no. No.: 208-108 HIGHSIDER DRL CONTROL- BOX CB1 (switches between low beam and daytime running light)
APPROVAL: CE APPROVAL
COVER COLOR: TRANSLUCENT
LIGHT TYPE: LED
