HIGHSIDER HEADLIGHT, FRONT 7 LED TIPO 4 1108027

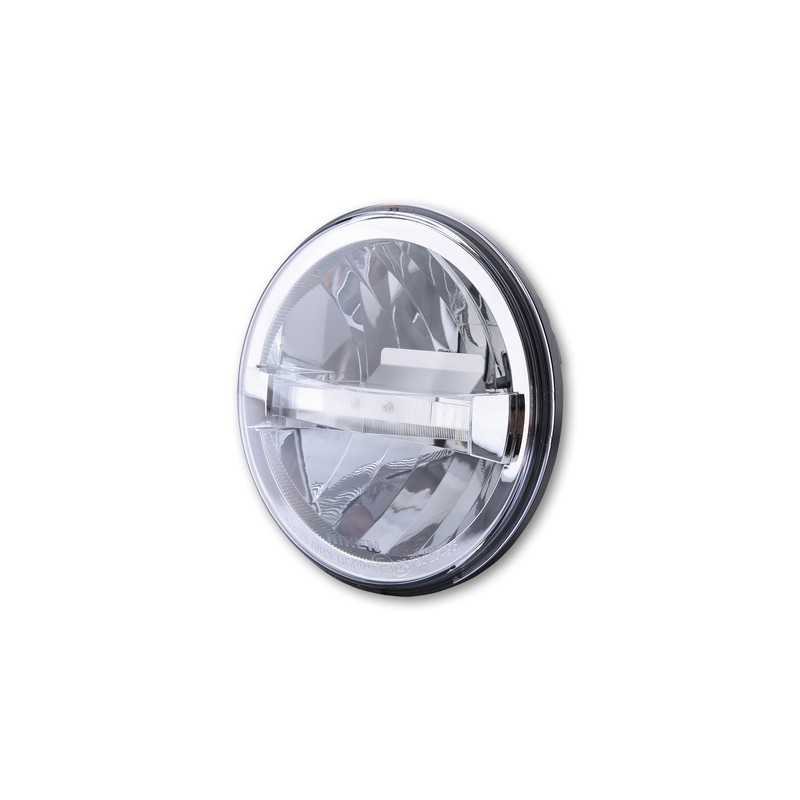

This round, chrome-plated reflector with clear glass has a high beam, low beam, parking and daytime running light function. The daytime running light and position light are mounted in a central strip, so that a very beautiful optical image is created - the dipped beam lights up above the strip, the main beam light correspondingly below. The reflector emits an asymmetrical luminous flux - only approved for right-hand traffic -, E-examined.



Our highlights give your bike your unmistakable style! The unusual design and the perfect technology of the HIGHSIDER headlight series will definitely make your bike a highlight!



Dimensions:

Diameter A = 177 mm

Diameter GA = 168 mm

Diameter I = 160 mm

T = 61 mm

R = 10 mm



Connections:

Black wire = ground (-)

Blue wire = low beam (+), power consumption at 12V: 1.8A, 22W

Yellow cable = high beam (+), power consumption at12V: 1.3A, 13W

Black wire = ground (-)

TFL:

Black wire = ground (-)

Red cable = daylight (+), consumption at 12V: 1.2A, 14W

White cable = position light (+), power consumption at 12V: 0,2A, 2,4W



Scope of delivery: 1 piece



Optionally available:

Complete HIGHSIDER spotlights with this reflector

- 7 inch LED spotlight RENO TYPE 4, chrome, Art.-No.:223-152

- 7 inch headlight HD-STYLE, chrome, item no.: 223-154

- 7 inch headlight BRITISH-STYLE, chrome, item no.: 223-154

- 7 inch headlight BRITISH-STYLE, chrome, item no.: 223-154

- 7 inch headlight BRITISH-STYLE, chrome, item no.: 223-154

- 7 inch headlight BRITISH-STYLE, chrome, item no.: 223-154

- 7 inch headlight BRITISH-STYLE, chrome, item no.No.: 223-156



Note 1:

- Use asymmetrical, approved for right-hand traffic only.

- The enclosed 3-pole standard plug must be installed by the customer after installing the reflector.

View of plug contacts:

Driving light (yellow) = right

Dipped beam (blue) = top

Ground (black) = left



Note 2:

Daytime running light can also be used on vehicles without light switch. The following components are required for this:

Switch: Art. Nr. 240-044

HIGHSIDER DRL CONTROL- BOX CB1 : Art. No. 208-108 (switches between low beam and daytime running light)
APPROVAL: CE APPROVAL
COVER COLOR: TRANSLUCENT
LIGHT TYPE: LED
