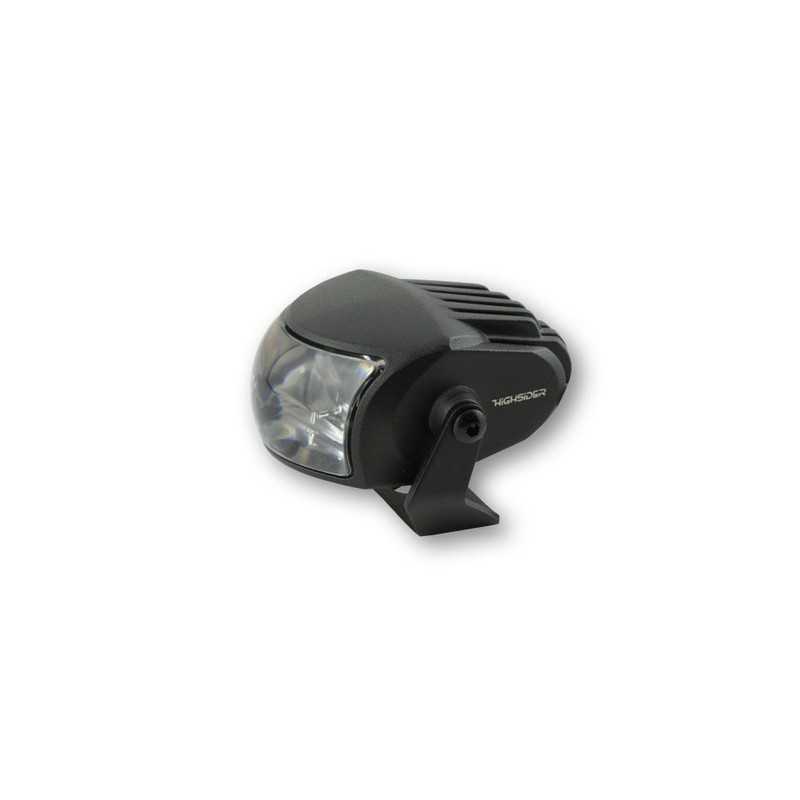

HIGHSIDER dipped beam headlamp LED COMET-LOW 1108014

HIGHSIDER LED low beam headlight COMET-LOW, E-tested



Tiny little LED low beam headlight in a matt black aluminium housing with sturdy steel bracket. Thanks to the use of modern LED technology, it is possible to achieve the smallest possible housing dimensions while at the same time achieving the highest possible luminous efficacy. The three powerful SMD LEDs with oval lens produce a symmetrical bright light for increased visibility. Another advantage is a significant reduction in the load on the alternator due to the low power consumption.



Overview special features:

- Tiny: Only 3.6 cm high and 5.5 cm wide

- Robust: Thanks to aluminum housing and holder made of steel

- Powerful SMD- LEDs for more visibility

- Sporty design and light color

- Low power consumption relieves the alternator

- Together with the COMET-HIGH a true dream team (optionally available)



Our highlights: give your bike a distinctive style! The unusual design and the perfect technology of the HIGHSIDER headlight series make it a highlight in any case!



Dimensions:

Height: 36 mm

Width: 55 mm

Depth: 70 mm

Height lens: 24 mm

Width lens: 42 mm

Mounting hole spacing: 55 mm

Mounting holes on side: M4



Box dimensions:

Width: 44.5 mm

Depth: 11 mm

Height: 17 mm

Weight: 128 g



Connections:

Red = positive (+)

The red wire connects to ignition positive (+)

Black = Ground (-)



Scope of delivery: 1 piece incl.

1x screw

1x U- washer

1x nut



Optional available:

Best. No.: 223-452 HIGHSIDER LED spotlight COMET- HIGH



Notes:

Never connect the spotlight without the supplied black electronics box (voltage control)!
APPROVAL: CE APPROVAL
COVER COLOR: TRANSLUCENT
COLOUR: BLACK
POSITION: FRONT
LIGHT TYPE: LED
POSITION: FORWARD
