HIGHSIDER HEADLIGHT, FRONT LED 7 RENO TIPO 2 1108007

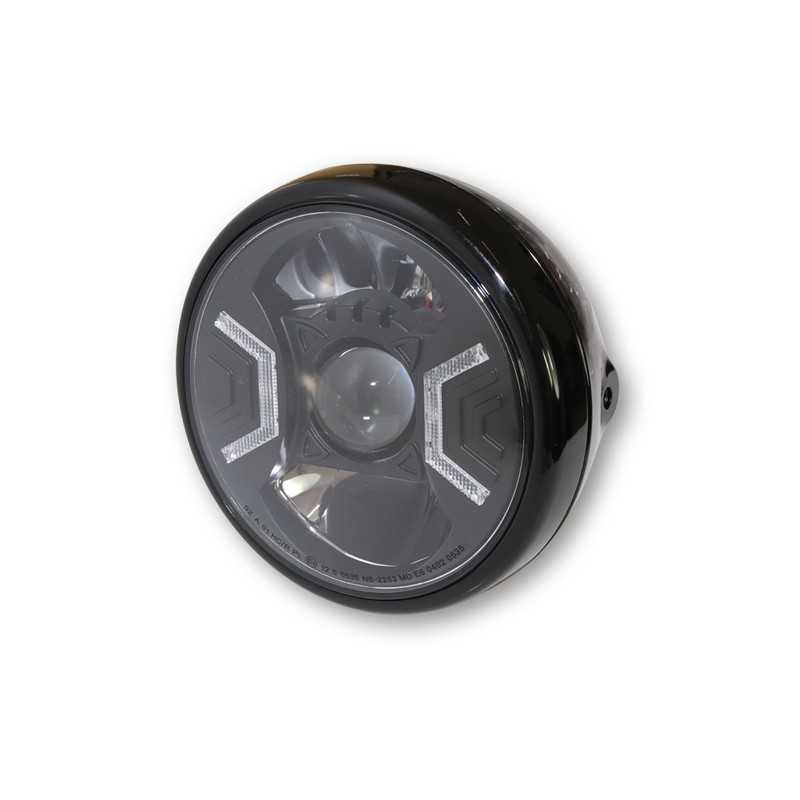

HIGHSIDER 7 inch LED headlight RENO TYPE 2 for side mounting



Innovative Power-LED headlight with parking light function and round, clear glass. The metal housing ishigh-gloss black lacquered and has a black, asymmetrical insert - approved for right-hand traffic only - or the housing is chrome-plated and has achrome-plated, asymmetrical - only approved for right-hand traffic. E-approved.



Our highlights: give your bike a distinctive style! The elegant design and the perfect technology of the HIGHSIDER headlight series make it a highlight in any case!



headlight dimensions:

housing diameter: 200mm

Headlight Insert Diameter: 178mm

housing depth: 160 mm

distance of the mounting holes (middle - middle): 170 mm

Distance from mounting hole (center) to end of housing: approx. 90mm

mounting: laterally withM8 threaded bolt



Current consumption at 12.5 Volt DC:

Dipped beam: approx. 1.6 Ampere (20 Watt).

12 Volt 1450 Lumen

High beam: approx. 1.6 Ampere (20 Watt).

12 Volt 1582 Lumen



Connectors on reflectorin headlamp housing:

Black wire = ground (-)

Red cable = High beam (+)

Blue cable = Low beam (+)

2 additional wires for parking light: Black = ground (-), Red = parking light (+)



Scope of delivery: 1 piece including mating connector (connection plug) with 210 mm cable, for H4 halogen bulbs, connections:

Green cable = ground (-)

blue cable = high beam (+)

White wire = dipped beam (+)



Note:

Application asymmetrical, approved for right-hand traffic only.
APPROVAL: CE APPROVAL
COMPOSITION: STEEL
COVER COLOR: TRANSLUCENT
COLOUR: CHROME
POSITION: FRONT
LIGHT TYPE: LED
POSITION: FORWARD
