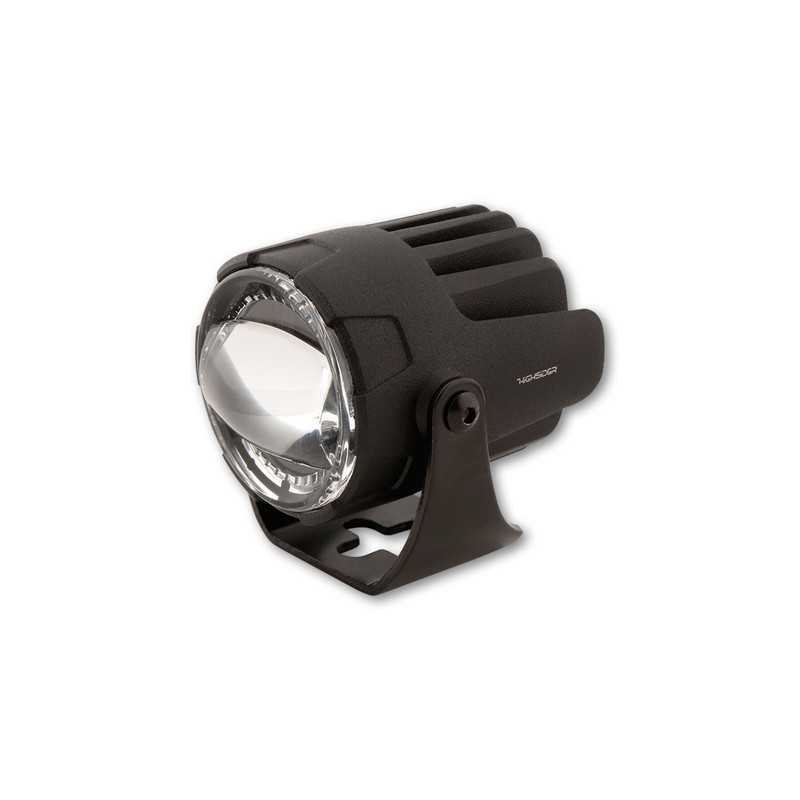

HIGHSIDER Homologated fog light FR13-FOG 1107993

The HIGHSIDER FT13- FOG is a powerful fog light in a matt black aluminium housing with a round lens.

The LED technology and the insert used create a bright light for optimal perception.

E- tested: ECE R19, F3



Dimensions:

Diameter: 55 mm

Diameter lens: 44 mm

Distance between mounting holes: 56 mm

Side mounting holes: 63.8 mm

Housing depth: 70 mm

Depth from mounting point: 62 mm

Cable length to E-box: 590 mm



housing material: aluminum

bracket material: Steel



Box dimensions:

Height: 11 mm

Width: 44.5 mm

Depth: 12mm

Weight: 0.3 Kg



Shots:

red = dipped beam (+)

Black = Ground (-)



Scope of delivery:

1 piece

1x screw

1x washer

1x nut

1x E-box



Notes:

- EMC ready

- The headlamp must never be connected without the supplied black electronic box (voltage control).
APPROVAL: CE APPROVAL
COVER COLOR: TRANSLUCENT
COLOUR: BLACK
POSITION: FRONT
LIGHT TYPE: LED
POSITION: FORWARD
