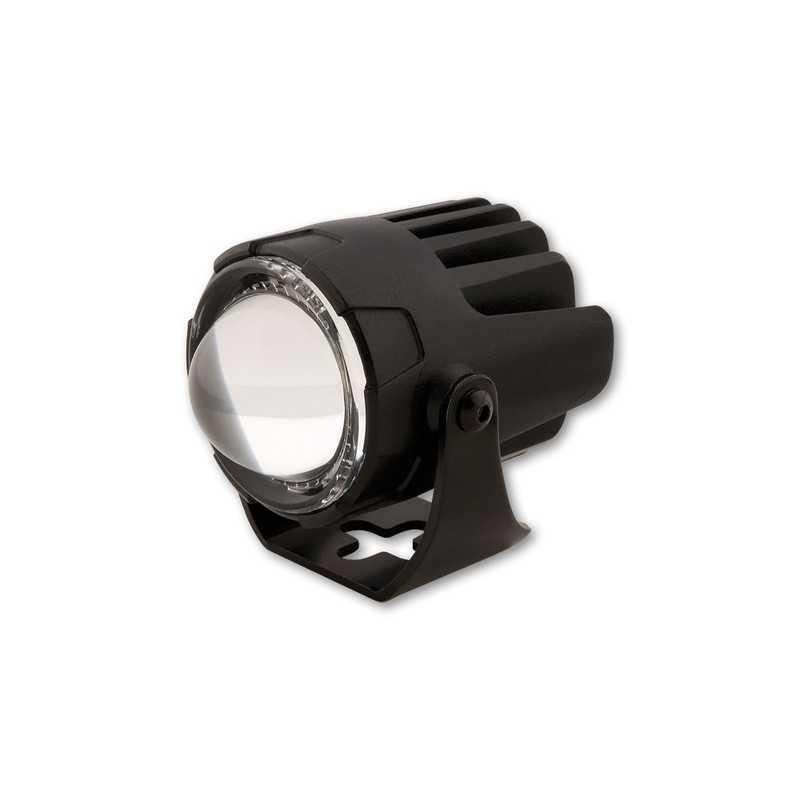

HIGHSIDER HEADLIGHT, FRONT LED FT13-HIGH 1108020

HIGHSIDER LED spotlight FT13- HIGH with parking light, E-approved



Small LED spotlight, solidly manufactured and with high light output. The FT13- HIGH is a powerful spotlight with a round lens. The matt black housing of the headlamp is made of high-quality aluminium and is equipped with a robust steel bracket. The LED technology and the insert used produce a symmetrical, bright light for optimum perception. Together with the LED low beam headlight FT13- LOW (to be ordered separately) a real dream team. The result is impressive: Ideal for conversions of all kinds and STVO-compliant thanks to the test mark.



The bright joy - give your bike your distinctive style! The unusual design and perfect technology of the HIGHSIDER headlight series will definitely make you a highlight!



Dimensions:

Diameter: 55 mm

Diameter lens: 44 mm

distance of the fixing holes: 55 mm

fixing holes on the side: M 4

depth of the housing/from fixing point: 70 mm / 40 mm



dimensions of the e-box:

width: 53.3 mm

depth: 33.5 mm

height: 16.5 mm

weight: 0.25 kg



housing material: aluminum

bracket material: Steel



Connections:

blue = high light (+)

Brown = Parking light (+)

green = ground (-)



Supply: 1 piece, including mounting material



Notes:

- EMC ready

- The headlight must never be connected without the supplied black electronic box for voltage control.
APPROVAL: CE APPROVAL
COMPOSITION: ALUMINUM
COVER COLOR: TRANSLUCENT
COLOUR: BLACK
POSITION: FRONT
LIGHT TYPE: LED
POSITION: FORWARD
