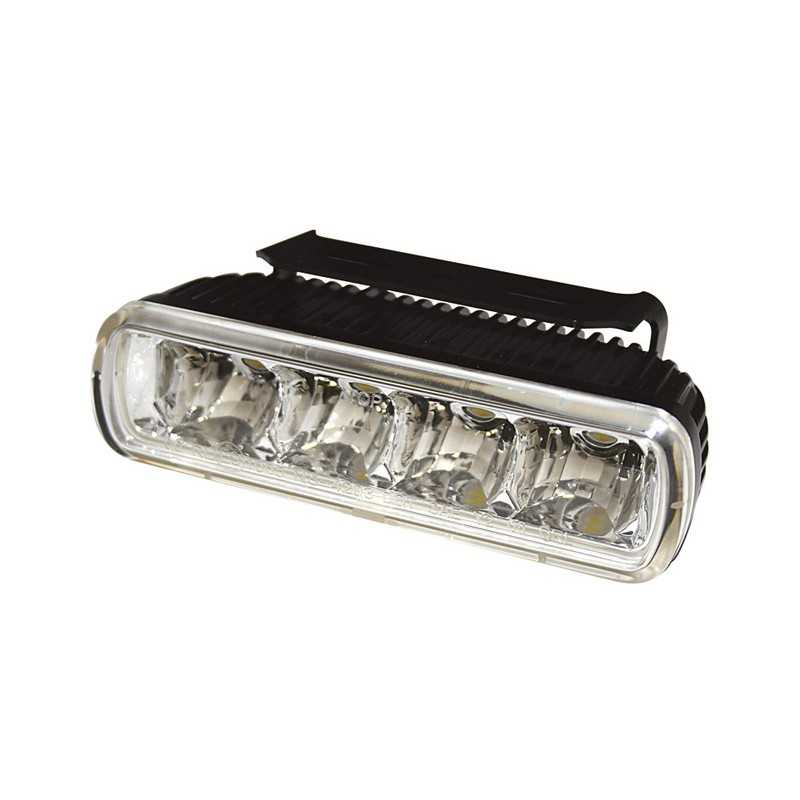

HIGHSIDER rectangular auxiliary light LED 1107994

HIGHSIDER LED daytime running light

The LED daytime running light with 4 LEDs à 1 Watt is built into a rectangular, black housing made of aluminium. The powerful LEDs significantly increase the perceptionof motorcyclists by other road users. Including universal holder, E-approved.



See and be seen - give your bike personality! The fancy design and theperfect technology of the HIGHSIDER headlight series will definitely make you a sensational highlight!



Dimensions:

Width: 145mm

Height: 40.5 mm

Depth: 66 mm



Technical specifications:

Current consumption at 12.5 Volt: only 0.3 Ampere (approx. 3.75 Watt)

Light current at 12 Volt: 215 Lumen



Connections:

Black wire: ground (-)

Red cable = plus (+), is connected to switched plus(ignition) connected.

White cable = is connected to the dipped beam control cable



Supplied with: 1 piece



Note 1 - with existing light switch:

Prerequisite forOperation of the daytime running light (TFL) is a manually switched low beam (light switch), as otherwise the function of the TFL would be cancelled.

According to the road traffic regulations, the TFL must bemust be connected so that it goes out when the main headlamp is switched on.

(Exception: Operating the headlamp flasher). The rear tail light must always remain switched on, i.e. on ignition pluslegen.



Note 2 - without existing light switch:

The daytime running light can also be used on vehicles without a light switch. The following components, for example, are required for this purpose:

Switch: art. #240-044

HIGHSIDER DRL CONTROL- BOX CB1 : Art. No. 208-108 (switches between low beam and daytime running light)
APPROVAL: CE APPROVAL
COMPOSITION: ALUMINUM
COVER COLOR: TRANSLUCENT
COLOUR: BLACK
LIGHT TYPE: LED
