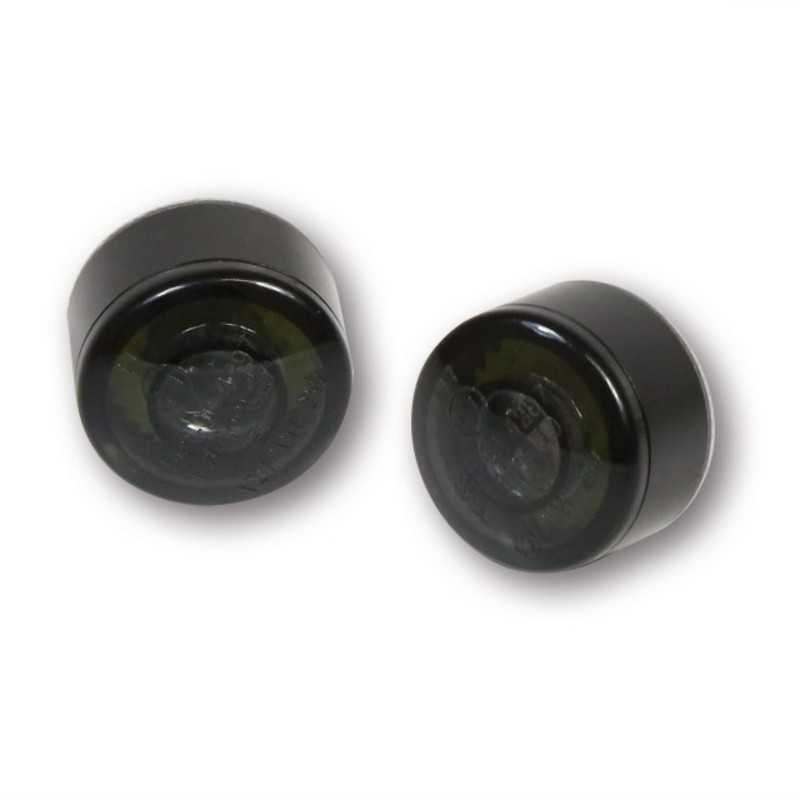

HIGHSIDER Position light with indicator LED APOLLO 1107909

HIGHSIDER APOLLO LED turn signal/position lights module



LED turn signal/position lights module suitable for recessed or surface mounting, black aluminium ring with tinted glass, E-approved.



For thisinnovative lighting technology, 2 very bright SMD LEDs are installed in the center, which enable an extremely small design. The outer ring on the other hand consists of the new COB technology (Chip On Board).The new LED chip embedding for high-power LEDs achieves a very high luminance with currently best possible efficiency and lifetime. This also allows higher light values than withconventional LEDs can be achieved. This module is supplied with a black anodized aluminum ring that fits over the base body.



In the right direction: with the innovative indicator series from HIGHSIDER. Show not only where you want to go, but also who you are.

That is trend-setting design at its best.

Dimensions:

A1: 13 mm

A2: 9 mm

D1: 22 mm

D2: 20mm



Threaded bolt: M8, length: 12 mm



Connections:

Black wire = ground (-)

Yellow cable = indicator (+)

White cable: parking light (+)



Supplied with: 1 pair



Installation location: Front Alternatively, the unit can be mounted with the aluminium ring one.g. a mounting plate can be mounted on the vehicle, see instructions Art.no. 204-170A.



Optional order:

Fitting rear light/indicator unit, article no. 254-170

Fitting indicator unit,Item no. 204-170
APPROVAL: CE APPROVAL
COMPOSITION: ALUMINUM
COVER COLOR: TRANSLUCENT
LIGHT TYPE: LED
POSITION: FRONT
COLOUR: BLACK
PACKING: PER PAIR
POSITION: FORWARD
