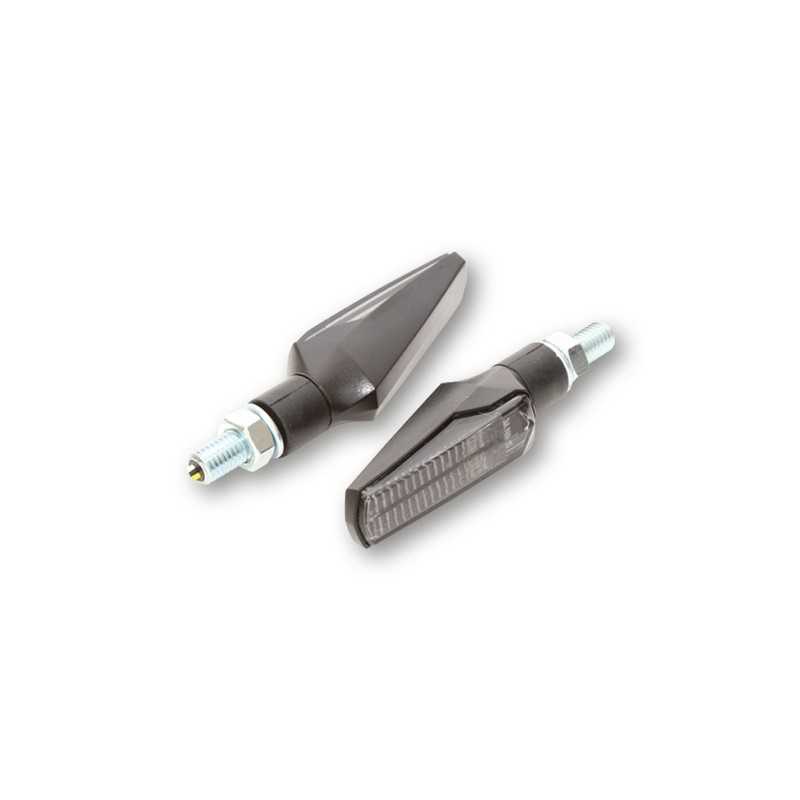

SHINYO REAR PILOT LED FINELINE 1107731

SHIN YO LED tail light, brake light, turn signal unit FINELINE with black plastic housing and rubber handle. E-approved for rear.



The FINELINE with tinted glass has a Light Guide System installed with 4 SMD LEDs. For all those who place high demands on their new light source and rely on light colour and brightness for their lighting. You will be surprised how much power and brightness comes from this future-oriented technology. The light guide system is designed to transport light from the light source to a point with minimal loss. This creates a beautiful light effect without seeing the LEDs.



Dimensions:

Width A: 58 mm

Width B (rubber shaft 12 mm): 70 mm

Height C: 17 mm

Depth D: 25 mm

Threaded bolt: M 8x 1.25



Connections:

yellow wire = tail light

blue cable = turn signal

red wire = brake light

Black wire = ground (-)



Scope of delivery: 1 pair



can be ordered optionally:

fitting LED turn signal FINELINE, article no.204-174

Fitting LED Indicator / Position Light FINELINE, Article-No.204-175
ANCHURA (MM): 17
LONGITUD (MM): 58
APPROVAL: CE APPROVAL
COMPOSICIÓN: ABS
COLOR DE CUBIERTA: AHUMADO
LIGHT TYPE: LED
POSICIÓN: TRASERO
COLOUR: BLACK
PACKING: PER PAIR
