SW-MOTECH suitcase system 45/45 L TRAX ADV PLATEADO 4052572246757

Review (0)

€1,100.00

Tax included

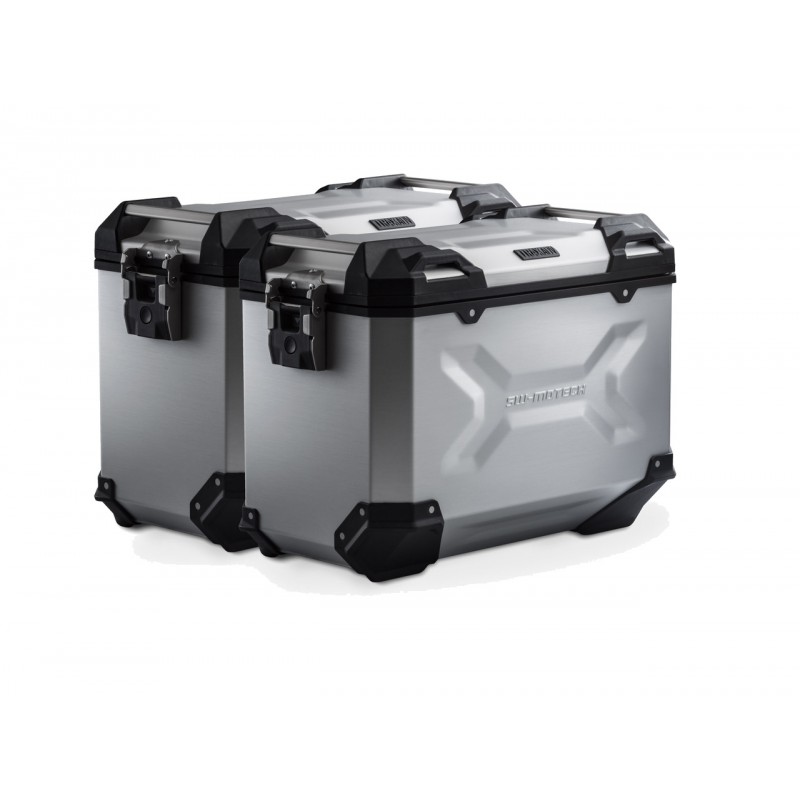

TRAX ADV aluminum case system

SW-MOTECH manufactures the custom aluminum pannier system for the Honda XL750 Transalp with the model-specific PRO side supports, which are extremely resistant.

WINNER OF THE COMPARISON TEST in MOTORRAD magazine number 05/2020. Test result: VERY GOOD

The robust TRAX ADV aluminum panniers are ideal for any type of tour: the imprints of the design contribute to the stability of the 1.5 mm thick welded aluminum frame material. The fully removable lid with anodized aluminum carry handles and quick releases make it easy to put on and take off the motorcycle case, and the beveled side edges create a high ground clearance for twisty rides. This complete solution offers all the necessary components to be able to embark on long trips with TRAX: two waterproof TRAX ADV side cases, two removable SW-MOTECH side carriers, adapter kit, lock set, opening limiter and anti-theft system at a very attractive price.

The mounts and the size of the model-specific cases are perfectly adapted to the shape of the rear end and the exhaust of the motorcycle. A motorcycle case that leaves nothing to be desired: in the development of the TRAX ADV, the focus was on stability and tightness, resistance to dust and water, as well as excellent protection. as in ease of use. Whether for off-road adventures, long tours or short tours, the premium aluminum case with a thickness of 1.5 mm is ideal for any challenge.

PRO side bag holder
- Extreme resistance thanks to its optimized shape and hard 2.5 mm steel
- Perfect fit, designed for a close fit to the vehicle
- Completely removable with the new quick releases, even more resistant
- Anti-theft system available as an option
- To fix it permanently, the quick release can be replaced by approved parts (M8)
- Numerous functional perforations compatible, among others, with the RotopaX system
- Easy mounting on the original fixing points
- Effective protection against corrosion by powder coating
- Secure attachment for TRAX, AERO and NANUK side cases as well as SysBag 15 and SysBag 30 with adapter plate
- Adapter kits also available for attaching Givi/Kappa, Krauser and Shad brand panniers
- DETAILS
- MATERIAL: STEEL
- Surface: Powder Coated
- Color: BLACK
- overall weight: AC. 4.7kg
- Extended width on motorcycle: 50.0cm
- Note
- The adapter kit, available separately, is required for aluminum cases from SW-MOTECH and other manufacturers, for AERO ABS side cases, as well as for aluminum cases from SW-MOTECH and other manufacturers. as for SysBags (SysBag 15, 30, WP L) with adapter plate.
Adapter kit for PRO side carriers
- Adapter kit for attaching TRAX or NANUK side cases to the SW-MOTECH PRO side carrier
- It is mounted in the available holes of the SW-MOTECH PRO side carrier
- For the right and left sides
- DETAILS
- Color: SILVER
- overall weight: AC. 0.3kg
TRAX ADV L aluminum case
- Model for the left side of the motorcycle
- Protection against oxidation and abrasion by anodizing
- Resistant and waterproof aluminum suitcase
- Beveled side edges for high ground clearance when cornering, extra protection thanks to fiberglass reinforced plastic corners
- Robotic welding and rivets keep moisture out
- Completely removable lid with quick closure, also when it is in use. full
- 4 large lashing points integrated into the lid design (for example for the tent bag or an additional bag)
- High stability thanks to printed design, welded edges and pre-installed support rail
- Stainless steel hinges and anodized aluminum carry handles
- Opening limiters offer additional stability when using additional luggage on the lid
- replaceable lid gasket
- The integrated membrane allows the lid to be opened easily even in the event of sudden changes in pressure and temperature.
- Quick mounting on all PRO and EVO side carriers (adapter available separately)
- Adapter kits for mounting on brackets from other manufacturers, such as Givi and Hepco & Becker, also available
- Padlock set with 6 simultaneously closing padlocks available as an option and not included in the scope of delivery
- DETAILS
- MATERIAL: ALUMINUM
- material thickness: 0.15cm
- Surface: ANODIZED
- Color: SILVER
- Dimensions: 49.0 x 28.0 x 37.0cm
- overall weight: AC. 5.4kg
- Total volume: 45.0l
- Note
- Also available as a TRAX ADV case system with two side cases, model-specific side carriers, adapters and lock set.
- Required for assembly
- Side carrier, adapter kit, TRAX lock set
TRAX ADV L aluminum case
- Model for the right side of the motorcycle
- Protection against oxidation and abrasion by anodizing
- Resistant and waterproof aluminum suitcase
- Beveled side edges for high ground clearance when cornering, extra protection thanks to fiberglass reinforced plastic corners
- Robotic welding and rivets keep moisture out
- Completely removable lid with quick closure, also when it is in use. full
- 4 large lashing points integrated into the lid design (for example for the tent bag or an additional bag)
- High stability thanks to printed design, welded edges and pre-installed support rail
- Stainless steel hinges and anodized aluminum carry handles
- Opening limiters offer additional stability when using additional luggage on the lid
- replaceable lid gasket
- The integrated membrane allows the lid to be opened easily even in the event of sudden changes in pressure and temperature.
- Quick mounting on all PRO and EVO side carriers (adapter available separately)
- Adapter kits for mounting on brackets from other manufacturers, such as Givi and Hepco & Becker, also available
- Padlock set with 6 simultaneously closing padlocks available as an option and not included in the scope of delivery
- DETAILS
- MATERIAL: ALUMINUM
- material thickness: 0.15cm
- Surface: ANODIZED
- Color: SILVER
- Dimensions: 49.0 x 28.0 x 37.0cm
- overall weight: AC. 5.4kg
- Total volume: 45.0l
- Note
- Also available as a TRAX ADV case system with two side cases, model-specific side carriers, adapters and lock set.
- Also available as a TRAX ADV case system with two side cases, model-specific side carriers, adapters and lock set.
- Required for assembly
- Side carrier, adapter kit, TRAX lock set
TRAX cylinder set with PRO anti-theft system
- 9 locks closing simultaneously
- With anti-theft system for PRO side carrier
- Compatible with side cases and top cases of the TRAX ADV and TRAX ION series
- One key for all locks
- DETAILS
- Color: BLACK
- overall weight: AC. 0.5kg
multitool keychain
- The multitool, a practical key ring
- Quick release opening for EVO and PRO side carrier
- Hex key (14 mm), ideal for many motorcycle mirrors
- Hex key in four additional sizes (8, 10, 12, 13 mm)
- Bottle opener
- key ring hole
- With laser-engraved SW-MOTECH logo
- DETAILS
- MATERIAL: STAINLESS STEEL
- Surface: brushed
- Color: SILVER
- overall weight: AC. 0.0kg

delivery content

1 x TRAX ADV L aluminum case, 45.00 l, left, silver
1 x TRAX ADV L aluminum case, 45.00 l, right, silver
2 x PRO side bag holder
2 x Adapter kit for PRO side carriers
1 x TRAX cylinder lock set with PRO anti-theft system
1 x Multitool Keychain
4 x Opening limiter
2 x Storage Bag
Assembly instructions
mounting hardware

DETAILS

Color: SILVER
overall weight: AC. 20.8kg
Total volume: 90.0 l

APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:

COMPATIBLE WITH HONDA XL750 TRANSALP (22-)
