SW-MOTECH Aluminum side cases + supports cylinder TRAX ADV 45/37L - PRO KFT08990700VAR

Review (0)

€1,100.00

Tax included

TRAX ADV aluminum case system

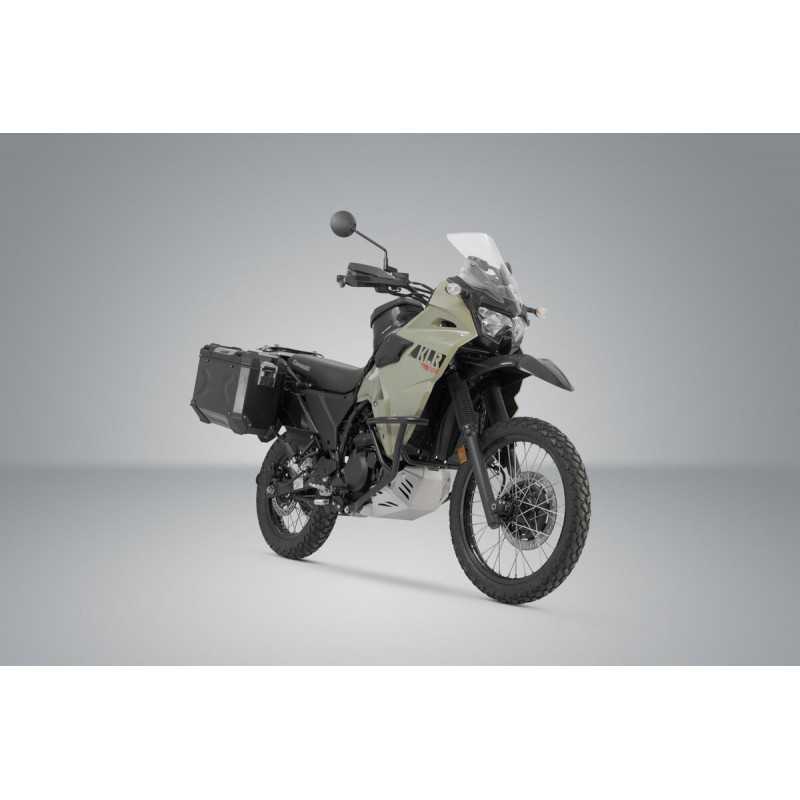

SW-MOTECH builds the perfect black aluminum case system for the Kawasaki KLR 650 (21-) with the model-specific PRO side carriers, which offer extreme load capacity.

WINNER OF THE COMPARISON TEST in MOTORRAD magazine number 05/2020. Test result: VERY GOOD

The robust TRAX ADV aluminum panniers are ideal for any type of tour: the design impressions contribute to the stability of the 1.5 mm thick welded aluminum frame material. The fully removable lid with anodized aluminum carry handles and quick releases make the motorcycle case easy to put on and take off, and the beveled side edges create high ground clearance for curvy rides. This complete solution offers all the necessary components to be able to embark on long journeys with TRAX: two waterproof TRAX ADV side cases, two removable SW-MOTECH side carriers, adapter kit, set of locks, opening limiter and anti-theft system at one very attractive price.

The mounts and the size of the model-specific cases are perfectly adapted to the shape of the rear end and the exhaust of the motorcycle. A motorcycle case that leaves nothing to be desired: when developing the TRAX ADV, the focus was on stability and tightness, dust and water resistance, as well as ease of handling. Whether for off-road adventures, long tours or short tours, the premium aluminum case with a thickness of 1.5 mm is ideal for any challenge.

PRO side bag holder
- Extreme resistance thanks to its optimized shape and hard 2.5 mm steel
- Perfect fit, designed for a close fit to the vehicle
- Completely removable with the new quick releases, even more resistant
- Anti-theft system available as an option
- To fix it permanently, the quick release can be replaced by approved parts (M8)
- Numerous functional perforations compatible, among others, with the RotopaX system
- Simple mounting on the original fixing points
- Effective protection against corrosion by powder coating
- Secure attachment for TRAX, AERO and NANUK side cases as well as SysBag 15 and SysBag 30 bags with adapter plate
- Adapter kits also available for attaching Givi/Kappa, Krauser and Shad panniers
- DETAILS
- MATERIAL: STEEL
- Surface: Powder Coated
- Color: BLACK
- overall weight: AC. 5.8kg
- Extended width on motorcycle: 51.5cm
- Note
- The separately available adapter kit is required for aluminum cases from SW-MOTECH and other manufacturers, for AERO ABS side cases as well as for SysBags (SysBag 15, 30, WP L) with adapter plate .
Adapter kit for PRO side carriers
- Adapter kit for attaching TRAX or NANUK side cases to the SW-MOTECH PRO side carrier
- It is mounted in the available holes of the SW-MOTECH PRO side carrier
- For the right and left sides
- DETAILS
- overall weight: AC. 0.3kg
TRAX ADV L aluminum case
- Model for the left side of the motorcycle
- Protects against oxidation and friction with black powder coating, easy-to-clean surface
- Resistant and waterproof aluminum suitcase
- Beveled side edges for high ground clearance when cornering, extra protection thanks to fiberglass reinforced plastic corners
- Robotic welding and rivets keep moisture out
- Fully removable lid with quick release, also when full
- 4 large lashing points integrated into the lid design (for example for the tent bag or an additional bag)
- High stability thanks to design print, welded edges and pre-installed support rail
- Stainless steel hinges and anodized aluminum carry handles
- Opening limiters offer additional stability when using additional luggage on the lid
- replaceable lid gasket
- The integrated membrane allows the lid to be opened easily even in the event of sudden changes in pressure and temperature
- Quick mounting on all PRO and EVO side carriers (adapter available separately)
- Adapter kits for mounting on brackets from other manufacturers, such as Givi and Hepco & Beckers, also available
- Padlock set with 6 simultaneously closing padlocks available as an option and not included in the scope of delivery
- DETAILS
- MATERIAL: ALUMINIUM
- material thickness: 0.15cm
- Surface: Powder Coated
- Color: BLACK
- Dimensions: 49.0 x 28.0 x 37.0cm
- overall weight: AC. 5.4kg
- Total volume: 45.0l
- Note
- Also available as a TRAX ADV case system with two side cases, model-specific side carriers, adapters and lock set.
- Required for assembly
- Side carrier, adapter kit, TRAX lock set
TRAX ADV M aluminum case
- Model for the right side of the motorcycle
- Protects against oxidation and friction with black powder coating, easy-to-clean surface
- Resistant and waterproof aluminum suitcase
- Beveled side edges for high ground clearance when cornering, extra protection thanks to fiberglass reinforced plastic corners
- Robotic welding and rivets keep moisture out
- Fully removable lid with quick release, also when full
- 4 large lashing points integrated into the lid design (for example for the tent bag or an additional bag)
- High stability thanks to design print, welded edges and pre-installed support rail
- Stainless steel hinges and anodized aluminum carry handles
- Opening limiters offer additional stability when using additional luggage on the lid
- replaceable lid gasket
- The integrated membrane allows the lid to be opened easily even in the event of sudden changes in pressure and temperature
- Quick mounting on all PRO and EVO side carriers (adapter available separately)
- Adapter kits for mounting on brackets from other manufacturers, such as Givi and Hepco & Beckers, also available
- Padlock set with 6 simultaneously closing padlocks available as an option and not included in the scope of delivery
- DETAILS
- MATERIAL: ALUMINIUM
- Surface: Powder Coated
- Color: BLACK
- Dimensions: 49.0 x 23.0 x 37.0cm
- overall weight: AC. 5.1kg
- Total volume: 37.0l
- Note
- Also available as a TRAX ADV case system with two side cases, model-specific side carriers, adapters and lock set.
- Required for assembly
- Side carrier, adapter kit, TRAX lock set
TRAX cylinder set with PRO anti-theft system
- 9 locks closing simultaneously
- With anti-theft system for PRO side carrier
- Compatible with side cases and top cases of the TRAX ADV and TRAX ION series
- One key for all locks
- DETAILS
- overall weight: AC. 0.5kg
multitool keychain
- The multitool, a practical keychain
- Quick release opening for EVO and PRO lateral support
- Hex key (14 mm), ideal for many motorcycle mirrors
- Hex key in four additional sizes (8, 10, 12, 13 mm)
- Bottle opener
- key ring hole
- With laser-engraved SW-MOTECH logo
- DETAILS
- MATERIAL: STAINLESS STEEL
- Surface: brushed
- Color: SILVER
- overall weight: AC. 0.0kg

delivery content

1 x TRAX ADV L aluminum case, 45.00 l, left, black
1 x TRAX ADV M aluminum case, 37.00 l, right, black
2 x PRO side bag holder
2 x Adapter kit for PRO side carriers
1 x TRAX locker set with PRO anti-theft system
1 x Multitool Keychain
4 x Opening limiter
2 x Storage Bag
Assembly instructions
mounting hardware

DETAILS

Color: BLACK
overall weight: AC. 19.9kg
Total volume: 82.0l

APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI KLR 650 (22-)
