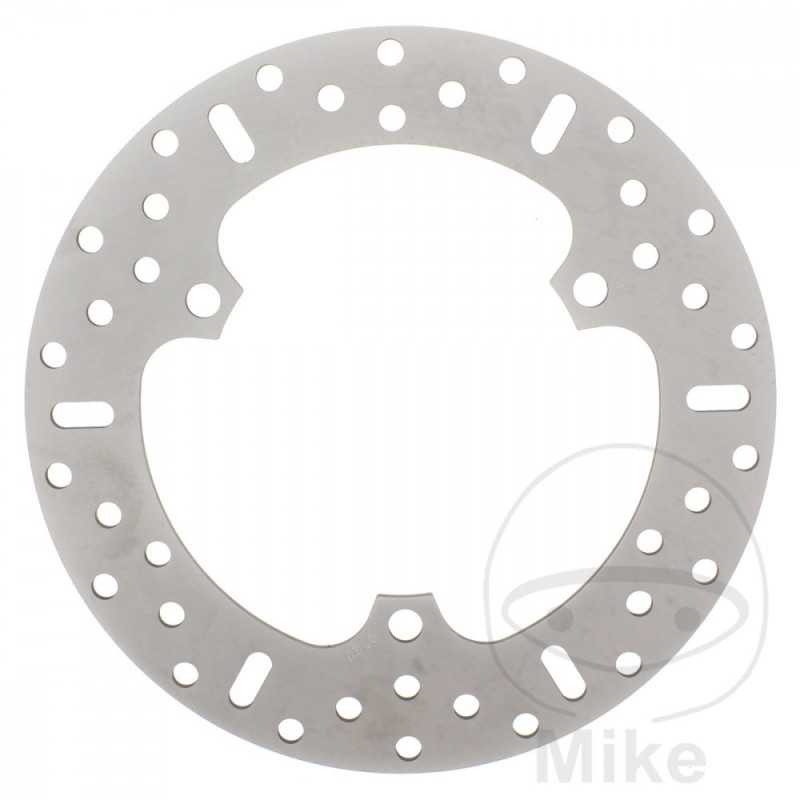

EBC Stainless steel brake disc for motorcycle SCOOTER 760.04.03

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of low carbon laminated HPSR steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC eco brake pads or EBC Double-H sintered brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 230MM
INSIDE DIAMETER: 117.8MM
CIRCLE SIZE: 136 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA MW 125 A TRICITY ABS 11 CV, 8,1 KW 1CIL. SE787 2CM2 BASTIDORES: SE787 henceforth68001-- 2015
YAMAHA MW 125 A TRICITY ABS 11 CV, 8,1 KW 1CIL. SE78K 2CMP BASTIDORES: SE78K-151501-- 2016
YAMAHA MW 125 TRICITY 11 CV, 8,1 KW 1CIL. SE782 2CM1 BASTIDORES: SE782 henceforth19204-- 2014-2015
YAMAHA MW 125 TRICITY 11 CV, 8,1 KW 1CIL. SE78F 2CMJ BASTIDORES: SE78F-131901-- 2016
