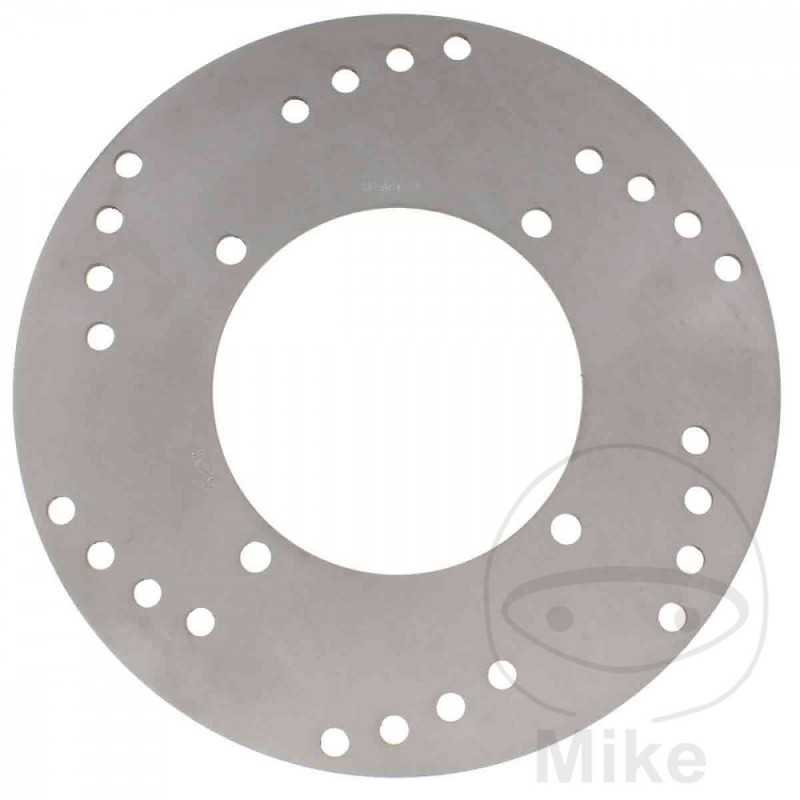

EBC Stainless steel brake disc for motorcycle 760.00.52

EBC MX brake disc for offroad / enduro and ATV. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of heat-treated carbon steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sport drivers EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 218MM
INSIDE DIAMETER: 105.2MM
CIRCLE SIZE: 124 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 8.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Polaris Ranger 500 4WD 1cil. - Bastidores: --- 2004-2005
Polaris Ranger 500 4WD 30 CV, 22 kw 1cil. - Bastidores: --- 2006-2007
Polaris Ranger 500 6WD 1cil. - Bastidores: --- 2004
Polaris Sportsman 450 4WD 1cil. - Bastidores: --- 2006-2007
Polaris Sportsman 500 4WD 1cil. - Bastidores: --- 1996
Polaris Sportsman 500 EFI 4WD 1cil. - Bastidores: --- 2006
Polaris Sportsman 500 HO 4WD 1cil. - Bastidores: --- 2003-2004
Polaris Sportsman 500 HO 4WD 1cil. - Bastidores: --- 2006-2007
Polaris Sportsman 500 HO 4WD 34 CV, 25 kw 1cil. - Bastidores: --- 2005
Polaris Sportsman 600 4WD 2cil. - Bastidores: --- 2003-2005
Polaris Sportsman 700 4WD 2cil. - Bastidores: --- 2002-2004
Polaris Sportsman 700 4WD 2cil. - Bastidores: --- 2006-2006
Polaris Sportsman 700 4WD 39,4 CV, 29 kw 2cil. - Bastidores: --- 2005
Polaris Sportsman 700 EFI 4WD 2cil. - Bastidores: --- 2006
Polaris Sportsman 700 EFI 4WD 39,4 CV, 29 kw 2cil. - Bastidores: --- 2005
Polaris Sportsman 800 EFI 4WD 2cil. - Bastidores: --- 2005-2008
