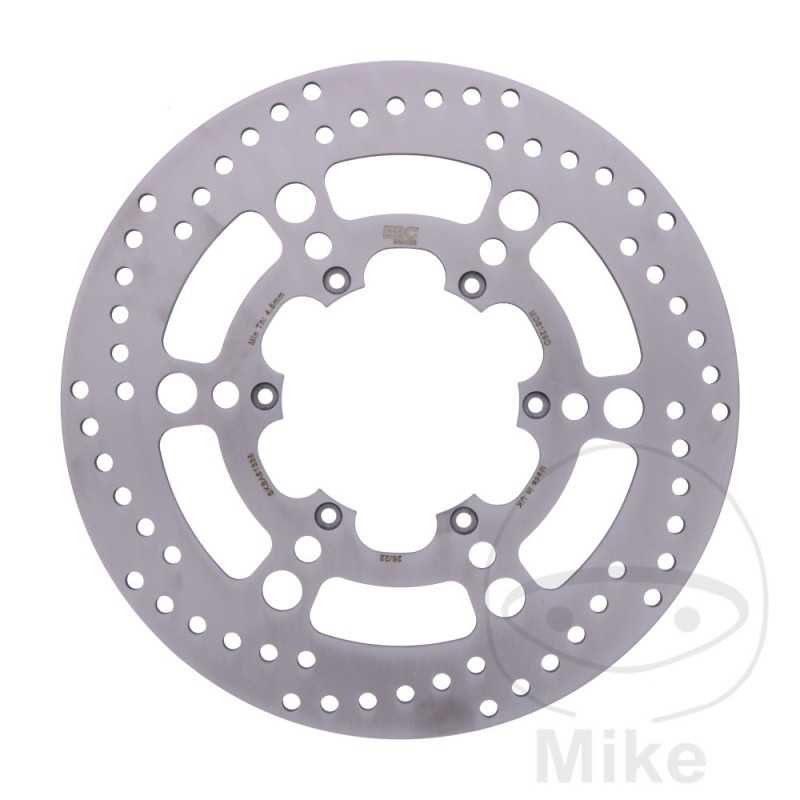

EBC motorcycle brake disc MX / ENDURO ATV 760.61.71

EBC MX brake disc for off-road motorcycles. MADE IN THE UK.

The aim of development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the contact zone of the brake pads already during braking. Only in this area can slight oxidation form after a long period of use.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Rigid brake disc.

- Made of carbon steel with heat treatment.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect it from corrosion.

- EBC recommends EBC Organic TT brake pads or, for sport riders, EBC sintered brake pads in R or MXS compound.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 105.2MM
CIRCLE SIZE: 120 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia Pegaso 650 34 CV, 25 kw 1cil. ML000/ML010/ML002 Bastidores: --- 1997-2000
Aprilia Pegaso 650 49 CV, 36 kw 1cil. ML000/ML010/ML002 Bastidores: --- 1997-2000
Aprilia Pegaso 650 Garda 34 CV, 25 kw 1cil. ML000/ML010/ML002 Bastidores: --- 1998-2000
Aprilia Pegaso 650 Garda 49 CV, 36 kw 1cil. ML000/ML010/ML002 Bastidores: --- 1998-2000
Aprilia Pegaso 650 ie 34 CV, 25 kw 1cil. RW000/RWA00/RWB00 Bastidores: --- 2001-2004
Aprilia Pegaso 650 ie 48 CV, 35 kw 1cil. RW000/RWA00/RWB00 Bastidores: --- 2003-2004
Aprilia Pegaso 650 ie 49 CV, 36 kw 1cil. RW000/RWA00/RWB00 Bastidores: --- 2001-2002
Aprilia Pegaso 650 ie Garda 34 CV, 25 kw 1cil. RW000/RWA00/RWB00 Bastidores: --- 2001-2004
Aprilia Pegaso 650 ie Garda 48 CV, 35 kw 1cil. RW000/RWA00/RWB00 Bastidores: --- 2003-2004
Aprilia Pegaso 650 ie Garda 49 CV, 36 kw 1cil. RW000/RWA00/RWB00 Bastidores: --- 2001-2002
Aprilia Pegaso 650 ie Trail 34 CV, 25 kw 1cil. VDA00 Bastidores: --- 2006
Aprilia Pegaso 650 ie Trail 34 CV, 25 kw 1cil. VDD00 Bastidores: --- 2007-2010
Aprilia Pegaso 650 ie Trail 48 CV, 35 kw 1cil. VDA00 Bastidores: --- 2006
Aprilia Pegaso 650 ie Trail 48 CV, 35 kw 1cil. VDD00 Bastidores: --- 2007-2010
Aprilia Pegaso 650 ie Tundra 48/34 CV, 35/25 kw 1cil. VD Bastidores: --- 2007-2008
Aprilia Pegaso 650 N 48/27 CV, 35/20 kw 1cil. GA Bastidores: --- 1992
Aprilia Pegaso 650 P 48/27 CV, 35/20 kw 1cil. GA Bastidores: --- 1993
Aprilia Pegaso 650 R 48/34 CV, 35/25 kw 1cil. GA Bastidores: --- 1994
Aprilia Pegaso 650 S 48/34 CV, 35/25 kw 1cil. GA Bastidores: --- 1995
Aprilia Pegaso 650 T 39/34 CV, 29/25 kw 1cil. MX Bastidores: --- 1996
