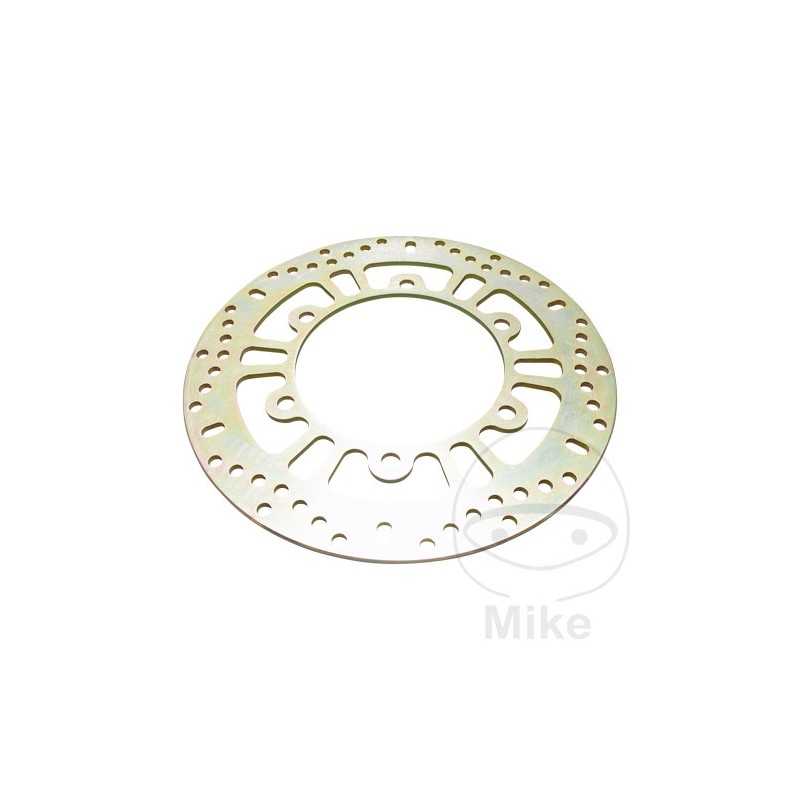

EBC BRAKE DISK 760.56.29

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is crushed in the area of the contact patch of the brake pads when braking. It is only in this area that a light oxide film with a longer service life can form.

The brake discs are drilled in the bird's swing design in order to pass through with as few holes as possible and at the same time the cleaning of the brake disc from rainwater and brake dust is optimized. The fewer holes drilled, the better the wet braking behavior and less wear.

- Brake ring milled in HPSR forged steel with low carbon content.

- Therefore, there is no distortion of the brake disc even under the highest loads.

- Without glazing of the braking surface, the coefficient of friction remains constant.

- Drilled braking surface with optimized hole pattern.

- Galvanized to protect against corrosion.

- Lower manufacturing tolerances.

- EBC recommends EBC Double-H sintered brake pads for best braking performance.

- Independent design.

GOLD COLOR
OUTSIDE DIAMETER: 270MM
INSIDE DIAMETER: 130MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki GPZ 600 R Ninja 75/50 CV, 55/37 kw 4cil. ZX600A A1 Bastidores: ZX600A henceforth00001-- 1985-1986
Kawasaki GPZ 600 R Ninja 75/50 CV, 55/37 kw 4cil. ZX600A A3 Bastidores: ZX600A henceforth46001-ZX600A henceforth54000 1987
Kawasaki GPZ 600 R Ninja 75/50 CV, 55/37 kw 4cil. ZX600A A4 Bastidores: ZX600A henceforth54001-ZX600A henceforth55800 1988
Kawasaki GPZ 600 R Ninja 81,6/50 CV, 60/37 kw 4cil. ZX600A A5 Bastidores: ZX600A henceforth55801-ZX600A-999999 1989-1990
Kawasaki GPZ 750 A Uni Trak 87 CV, 64 kw 4cil. ZX750A 3 Bastidores: ZX750A henceforth25501-- 1985
Kawasaki GTR 1000 A 100 CV, 74 kw 4cil. ZGT00A 1 Bastidores: ZGT00A henceforth00001-ZGT00A henceforth05500 1986
Kawasaki GTR 1000 A 100 CV, 74 kw 4cil. ZGT00A 2 Bastidores: ZGT00A henceforth55001-ZGT00A henceforth08000 1987-1988
Kawasaki GTR 1000 A 100 CV, 74 kw 4cil. ZGT00A 4 Bastidores: ZGT00A henceforth08001-ZGT00A henceforth09000 1989
Kawasaki GTR 1000 A 92 CV, 68 kw 4cil. ZGT00A 5 Bastidores: ZGT00A henceforth09001-ZGT00A henceforth11400 1990
Kawasaki GTR 1000 A 92 CV, 68 kw 4cil. ZGT00A 6 Bastidores: ZGT00A henceforth11401-ZGT00A henceforth14000 1991
Kawasaki GTR 1000 A 92 CV, 68 kw 4cil. ZGT00A 7 Bastidores: ZGT00A henceforth14001-ZGT00A-350000 1992-1993
Kawasaki Z 750 GP Uni Trak 87 CV, 64 kw 4cil. ZX750A A1 Bastidores: ZX750A henceforth00001-- 1983-1984
