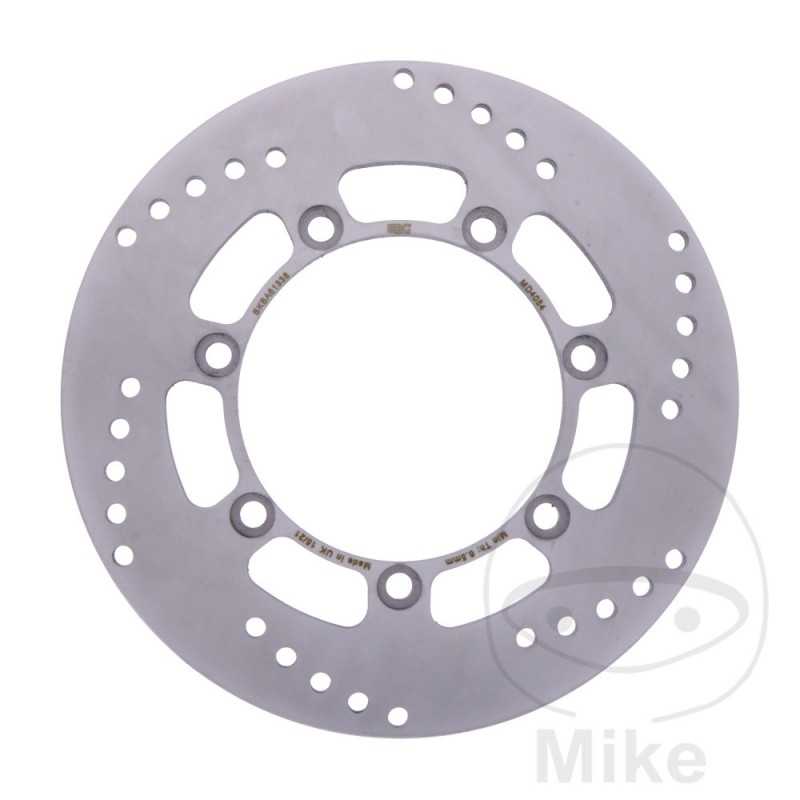

EBC BRAKE DISK 760.26.75

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTSIDE DIAMETER: 270MM
INSIDE DIAMETER: 130.2MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 7
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki GPZ 1100 B 100 CV, 74 kw 4cil. KZT10B 1 Bastidores: KZT10B henceforth00001-KZT10B henceforth10400 1981
Kawasaki GPZ 1100 B 100 CV, 74 kw 4cil. KZT10B 2 Bastidores: KZT10B henceforth10401-- 1982
Kawasaki VN-15 1500 A 50 CV, 37 kw 2cil. VNT50A 2 Bastidores: VNT50A henceforth01001-VNT50A henceforth03000 1988
Kawasaki VN-15 1500 A 50 CV, 37 kw 2cil. VNT50A 3 Bastidores: VNT50A henceforth03001-VNT50A henceforth04000 1989
Kawasaki VN-15 1500 A 50 CV, 37 kw 2cil. VNT50A 4 Bastidores: VNT50A henceforth04001-VNT50A henceforth06000 1990
Kawasaki VN-15 1500 A 69 CV, 51 kw 2cil. VNT50A 2 Bastidores: VNT50A henceforth01001-VNT50A henceforth03000 1988
Kawasaki VN-15 1500 A 69 CV, 51 kw 2cil. VNT50A 3 Bastidores: VNT50A henceforth03001-VNT50A henceforth04000 1989
Kawasaki VN-15 1500 A 69 CV, 51 kw 2cil. VNT50A 4 Bastidores: VNT50A henceforth04001-VNT50A henceforth06000 1990
Kawasaki VN-15 1500 SE B 50 CV, 37 kw 2cil. VNT50B 2 Bastidores: VNT50B henceforth00301-VNT50B henceforth02000 1988
Kawasaki VN-15 1500 SE B 50 CV, 37 kw 2cil. VNT50B 3 Bastidores: VNT50B henceforth02001-VNT50B henceforth03000 1989
Kawasaki VN-15 1500 SE B 64/50/27 CV, 47/37/20 kw 2cil. VNT50B 4 Bastidores: VNT50B henceforth03001-VNT50B henceforth05000 1990
Kawasaki VN-15 1500 SE B 64/50/27 CV, 47/37/20 kw 2cil. VNT50B 5 Bastidores: VNT50B henceforth05001-VNT50B henceforth07000 1991
Kawasaki VN-15 1500 SE B 64/50/34/27 CV, 47/37/25/20 kw 2cil. VNT50B 6 Bastidores: VNT50B henceforth07001-VNT50B-999999 1992-1994
Kawasaki VN-15 1500 SE B 69 CV, 51 kw 2cil. VNT50B 2 Bastidores: VNT50B henceforth00301-VNT50B henceforth02000 1988
Kawasaki VN-15 1500 SE B 69 CV, 51 kw 2cil. VNT50B 3 Bastidores: VNT50B henceforth02001-VNT50B henceforth03000 1989
Kawasaki Z 1000 J 98 CV, 72 kw 4cil. KZCJ1BA 1 Bastidores: KZCJ1BA henceforth00001-- 1981
Kawasaki Z 1000 J 98 CV, 72 kw 4cil. KZT00J 2 Bastidores: KZT00J henceforth07901-- 1982
Kawasaki Z 1000 K Ltd 95 CV, 70 kw 4cil. KZCK1BA 1 Bastidores: KZCK1BA henceforth00001-- 1981
Kawasaki Z 1000 R2 98 CV, 72 kw 4cil. KZT00R Bastidores: KZT00R henceforth01101-- 1983
Kawasaki Z 1100 ST 97 CV, 71 kw 4cil. KZT10A A1 Bastidores: KZT10A henceforth00001-KZT10A henceforth06700 1981
Kawasaki Z 1100 ST 97 CV, 71 kw 4cil. KZT10A A2 Bastidores: KZT10A henceforth06701-KZT10A henceforth11100 1982
Kawasaki Z 1100 ST 97 CV, 71 kw 4cil. KZT10A A3 Bastidores: KZT10A henceforth11101-- 1983
