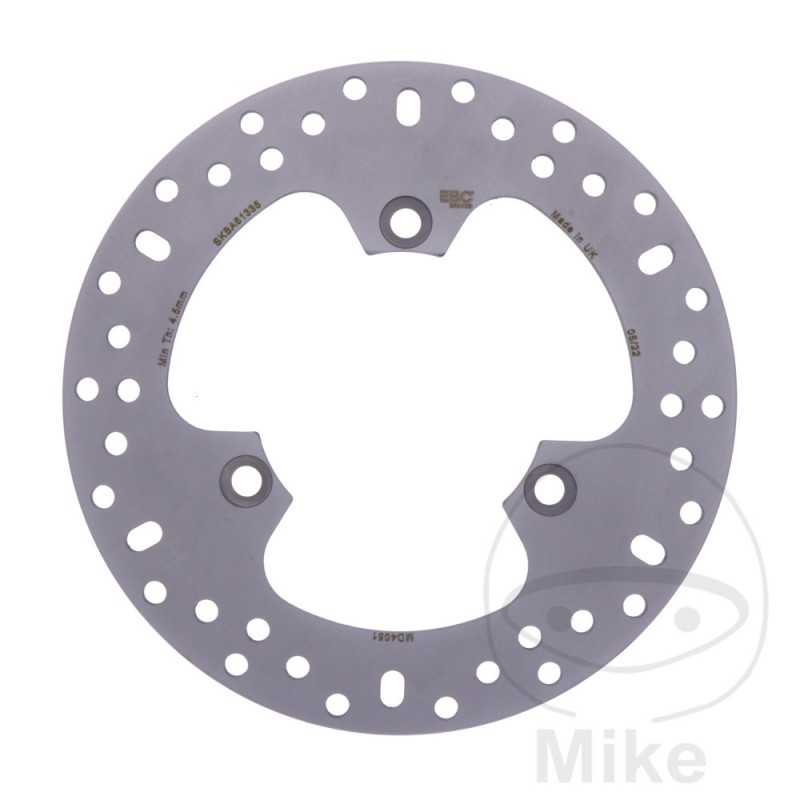

EBC BRAKE DISK 760.26.59

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 230MM
INSIDE DIAMETER: 100.2MM
CIRCLE SIZE: 120 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki GPZ 500 S 34 CV, 25 kw 2cil. EX500DEA E10 Bastidores: EX500DEA henceforth79001-EX500DEA-999999 2003
Kawasaki GPZ 500 S 34 CV, 25 kw 2cil. EX500DEA E9 Bastidores: EX500DEA henceforth70001-EX500DEA henceforth79000 2002
Kawasaki GPZ 500 S 60 CV, 44 kw 2cil. EX500D D2 Bastidores: EX500D henceforth09001-EX500D henceforth25000 1995
Kawasaki GPZ 500 S 60 CV, 44 kw 2cil. EX500D D3 Bastidores: EX500D henceforth25001-EX500D henceforth40000 1996
Kawasaki GPZ 500 S 60 CV, 44 kw 2cil. EX500D D4 Bastidores: --- 1997
Kawasaki GPZ 500 S 60 CV, 44 kw 2cil. EX500D D5 Bastidores: EX500D henceforth40001-EX500D-999999 1998
Kawasaki GPZ 500 S 60 CV, 44 kw 2cil. EX500DDA D6 Bastidores: EX500DDA-48001-EX500DDA-56000 1999
Kawasaki GPZ 500 S 60 CV, 44 kw 2cil. EX500DDA D7 Bastidores: EX500DDA-56001-EX500DDA-999999 2000-2001
Kawasaki GPZ 500 S 60 CV, 44 kw 2cil. EX500DEA E10 Bastidores: EX500DEA henceforth79001-EX500DEA-999999 2003
Kawasaki GPZ 500 S 60 CV, 44 kw 2cil. EX500DEA E9 Bastidores: EX500DEA henceforth70001-EX500DEA henceforth79000 2002
Kawasaki GPZ 500 S 60 CV, 44,1 kw 2cil. EX500D D1 Bastidores: EX500D henceforth00001-EX500D henceforth09000 1994
Kawasaki GPZ 500 S 60/50/34 CV, 44/37/25 kw 2cil. EX500DEA E7 Bastidores: EX500DEA henceforth56001-EX500DEA henceforth70000 2000-2001
Kawasaki GPZ 500 S 60/50/34/27 CV, 44/37/25/20 kw 2cil. EX500D E1 Bastidores: EX500D henceforth00001-EX500D henceforth09000 1994
Kawasaki GPZ 500 S 60/50/34/27 CV, 44/37/25/20 kw 2cil. EX500D E2 Bastidores: EX500D henceforth09001-EX500D henceforth25000 1995
Kawasaki GPZ 500 S 60/50/34/27 CV, 44/37/25/20 kw 2cil. EX500D E3 Bastidores: EX500D henceforth25001-EX500D henceforth35000 1996
Kawasaki GPZ 500 S 60/50/34/27 CV, 44/37/25/20 kw 2cil. EX500D E4 Bastidores: EX500D henceforth35001-EX500D henceforth40000 1997
Kawasaki GPZ 500 S 60/50/34/27 CV, 44/37/25/20 kw 2cil. EX500D E5 Bastidores: EX500D henceforth40001-EX500D henceforth48000 1998
Kawasaki GPZ 500 S 60/50/34/27 CV, 44/37/25/20 kw 2cil. EX500DEA E6 Bastidores: EX500DEA henceforth48001-EX500DEA henceforth56000 1999
