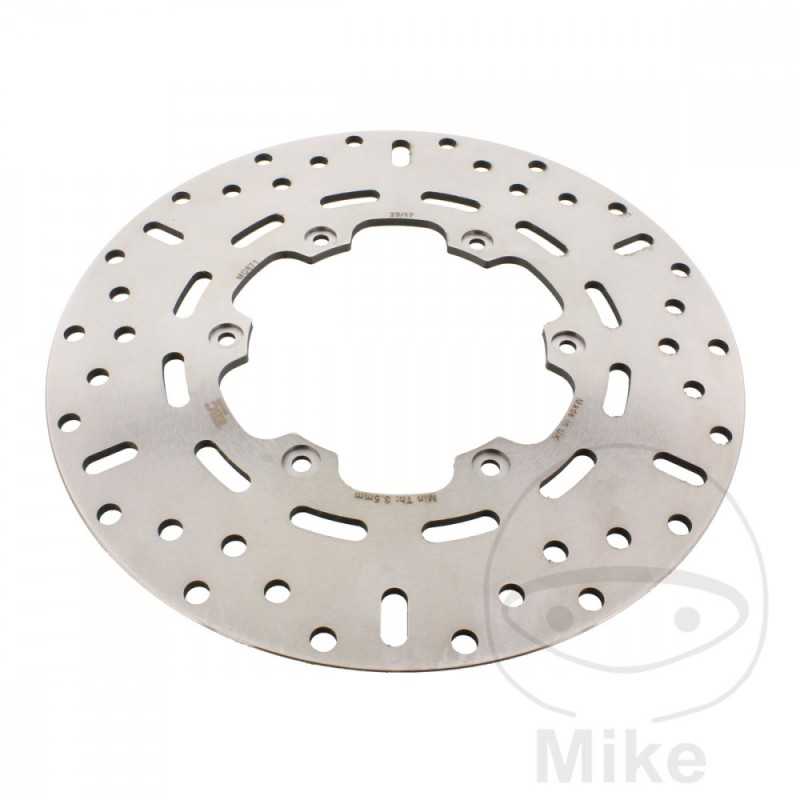

EBC BRAKE DISK 760.04.70

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.

The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered brake pads.

- Independent design.
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 111.4MM
CIRCLE SIZE: 128 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Moto Guzzi Breva 750 ie 34 CV, 25 kw 2cil. LLG00 Bastidores: --- 2003-2012
Moto Guzzi Breva 750 ie 46 CV, 34 kw 2cil. LLG00 Bastidores: --- 2003-2005
Moto Guzzi Breva 750 ie 49 CV, 36 kw 2cil. LLG00 Bastidores: --- 2006-2012
Moto Guzzi Breva 750 ie Touring 34 CV, 25 kw 2cil. LLG00 Bastidores: --- 2006-2008
Moto Guzzi Breva 750 ie Touring 49 CV, 36 kw 2cil. LLG00 Bastidores: --- 2006-2008
Moto Guzzi Nevada 750 34/46 CV, 25/34 kw 2cil. LK Bastidores: --- 2002-2004
Moto Guzzi Nevada 750 Club 34/48 CV, 25/35 kw 2cil. LF Bastidores: --- 1998-1999
Moto Guzzi Nevada 750 Club 34/48 CV, 25/35 kw 2cil. LK Bastidores: LK 11111-- 2000-2001
Moto Guzzi Nevada 750 ie Classic 34 CV, 25 kw 2cil. LME00 Bastidores: --- 2005-2008
Moto Guzzi Nevada 750 ie Classic 34 CV, 25 kw 2cil. LMG00 Bastidores: --- 2009-2011
Moto Guzzi Nevada 750 ie Classic 49 CV, 36 kw 2cil. LME00 Bastidores: --- 2005-2008
Moto Guzzi Nevada 750 ie Classic 49 CV, 36 kw 2cil. LMG00 Bastidores: --- 2009-2011
Moto Guzzi Nevada 750 ie Classic Touring 34 CV, 25 kw 2cil. LME00 Bastidores: --- 2006-2007
Moto Guzzi Nevada 750 ie Classic Touring 49 CV, 36 kw 2cil. LME00 Bastidores: --- 2006-2007
Moto Guzzi V7 750 ie Cafe Classic 34/49 CV, 25/36 kw 2cil. LWA00 Bastidores: --- 2009-2012
Moto Guzzi V7 750 ie Classic 34 CV, 25 kw 2cil. LW000/C00/J00 Bastidores: --- 2008
Moto Guzzi V7 750 ie Classic 34/49 CV, 25/36 kw 2cil. LW000/C00/J00 Bastidores: --- 2009-2012
Moto Guzzi V7 750 ie Classic 49 CV, 36 kw 2cil. LW000/C00/J00 Bastidores: --- 2008
Moto Guzzi V7 750 ie Racer 48 CV, 35,5 kw 2cil. LWB00 Bastidores: --- 2011
