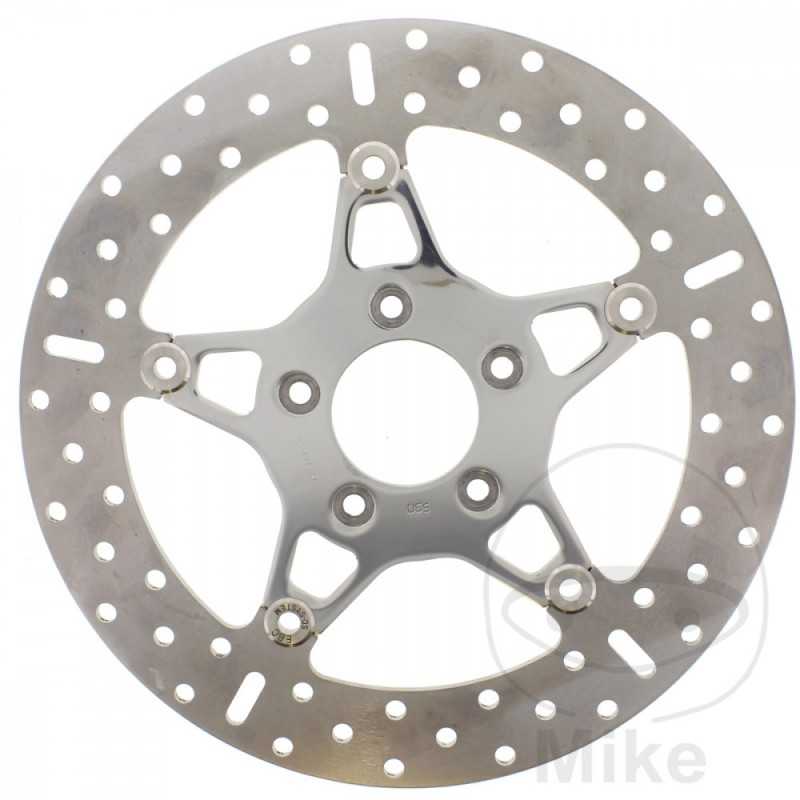

EBC BRAKE DISK 760.03.31

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 56.4MM
CIRCLE SIZE: 82.5 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Harley Davidson FLFB 1745 Softail Fat Boy ABS 87/45 CV, 64/33 kw 2cil. YFJ ST1 Bastidores: --- 2018-2020
Harley Davidson FLHTCUTG 1690 Tri Glide Ultra 87 CV, 64 kw 2cil. MAL TG1 Bastidores: --- 2014-2016
Harley Davidson FLHTCUTG 1745 Tri Glide Ultra ABS 90 CV, 66 kw 2cil. MA TG1 Bastidores: --- 2017
Harley Davidson FLHTCUTG 1868 Tri Glide Ultra ABS 88 CV, 65 kw 2cil. MAF Bastidores: --- 2021-2022
Harley Davidson FLHTCUTG 1868 Tri Glide Ultra ABS 88 CV, 65 kw 2cil. MAF TG1 Bastidores: --- 2019-2020
Harley Davidson FLHTCUTGSE 1923 CVO Tri Glide ABS 104 CV, 77 kw 2cil. TBH Bastidores: --- 2022
Harley Davidson FLHTCUTGSE 1923 CVO Tri Glide ABS 105 CV, 77 kw 2cil. TBH Bastidores: --- 2021
Harley Davidson FLHTCUTGSE 1923 CVO Tri Glide ABS 107 CV. 80 kw 2cil. TBH TG1 Bastidores: --- 2020
Harley Davidson FLRT 1745 Freewheeler ABS 88 CV, 65 kw 2cil. MC TG1 Bastidores: --- 2017
Harley Davidson FLSTF 1690 Softail Fat Boy ABS 48 CV, 34 kw 2cil. BXV FS2 Bastidores: --- 2015-2016
Harley Davidson FLSTF 1690 Softail Fat Boy ABS 75/46 CV, 55/34 kw 2cil. BXV FS2 Bastidores: --- 2017
Harley Davidson FLSTF 1690 Softail Fat Boy ABS 79 CV, 58 kw 2cil. BXV FS2 Bastidores: --- 2015-2016
Harley Davidson FLSTFB 1690 Softail Fat Boy Special ABS 48 CV, 34 kw 2cil. JNV FS2 Bastidores: --- 2015-2016
Harley Davidson FLSTFB 1690 Softail Fat Boy Special ABS 75/46 CV, 55/34 kw 2cil. JNV FS2 Bastidores: --- 2017
Harley Davidson FLSTFB 1690 Softail Fat Boy Special ABS 79 CV, 58 kw 2cil. JNV FS2 Bastidores: --- 2015-2016
Harley Davidson FXFBS 1868 Softail Fat Bob ABS 94 CV, 69 kw 2cil. YLK Bastidores: --- 2021-2022
Harley Davidson FXSB 1690 Softail Breakout ABS 44 CV, 32 kw 2cil. BFV FS2 Bastidores: --- 2013
Harley Davidson FXSB 1690 Softail Breakout ABS 75 CV, 55 kw 2cil. BFV FS2 Bastidores: --- 2013-2014
