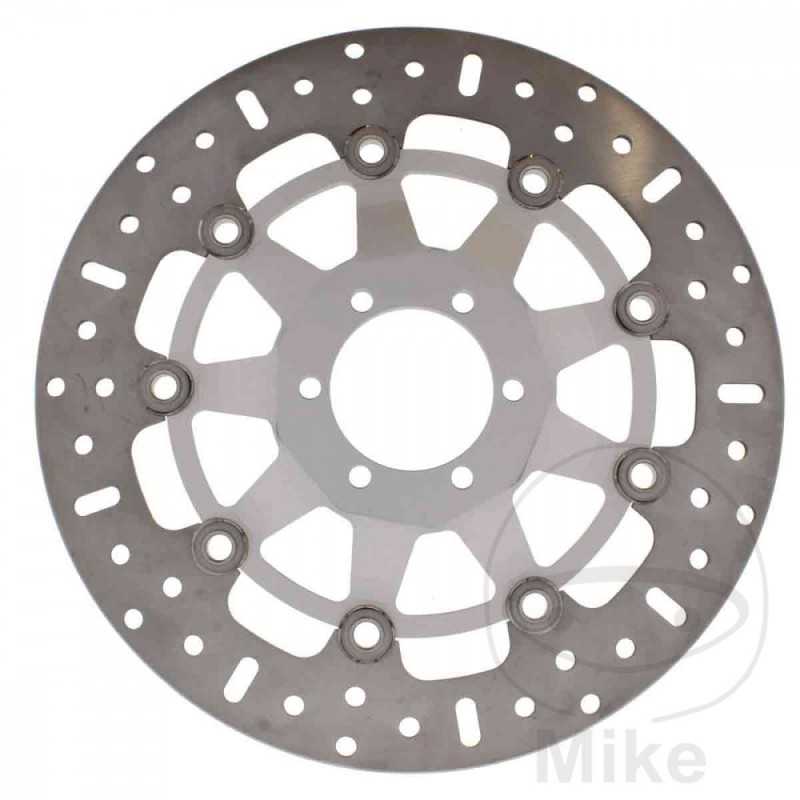

EBC BRAKE DISK 760.00.88

EBC brake discs. MADE IN THE UK.

The objective of the development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Rigid brake disc.

- Made of HPSR laminated steel with low carbon content.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Zinc plated to protect it from corrosion.

- EBC recommends EBC Organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTSIDE DIAMETER: 299MM
INSIDE DIAMETER: 64.2MM
CIRCLE SIZE: 80 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
thickness: 5mm
FILLING: 10MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Victory Boardwalk 1800 90 CV, 66 kw 2cil. - Bastidores: --- 2013-2014
Victory Boardwalk 1800 ABS 88 CV, 65 kw 2cil. - Bastidores: --- 2015
Victory Cross Country 1800 90 CV, 66 kw 2cil. - Bastidores: --- 2011
Victory Cross Country 1800 ABS 84 CV, 62 kw 2cil. - Bastidores: --- 2015-2017
Victory Cross Country 1800 ABS 90 CV, 66 kw 2cil. - Bastidores: --- 2012-2014
Victory Cross Country 1800 Cory Ness 90 CV, 66 kw 2cil. - Bastidores: --- 2011
Victory Cross Country 1800 Cory Ness ABS 90 CV, 66 kw 2cil. - Bastidores: --- 2012
Victory Cross Country 1800 Tour 84 CV, 62 kw 2cil. - Bastidores: --- 2015
Victory Cross Country 1800 Tour ABS 84 CV, 62 kw 2cil. - Bastidores: --- 2016-2017
Victory Cross Country 1800 Tour ABS 90 CV, 66 kw 2cil. - Bastidores: --- 2012-2014
Victory Cross Roads 1800 90 CV, 66 kw 2cil. - Bastidores: --- 2011
Victory Cross Roads 1800 ABS 90 CV, 66 kw 2cil. - Bastidores: --- 2012
Victory Cross Roads 1800 Hard Ball ABS 90 CV, 66 kw 2cil. - Bastidores: --- 2013
Victory Gunner 1800 ABS 88 CV, 65 kw 2cil. - Bastidores: --- 2015-2016
Victory Gunner 1800 ABS 95 CV, 70 kw 2cil. - Bastidores: --- 2017
Victory Hammer 1800 90 CV, 66 kw 2cil. - Bastidores: --- 2010-2011
Victory Hammer 1800 97 CV, 72 kw 2cil. - Bastidores: --- 2009
Victory Hammer 1800 Eight Ball 2cil. - Bastidores: --- 2017
Victory Hammer 1800 Eight Ball 88 CV, 65 kw 2cil. - Bastidores: --- 2015-2016
Victory Hammer 1800 Eight Ball 90 CV, 66 kw 2cil. - Bastidores: --- 2010-2014
Victory Hammer 1800 S 2cil. - Bastidores: --- 2017
Victory Hammer 1800 S 88 CV, 65 kw 2cil. - Bastidores: --- 2015-2016
Victory Hammer 1800 S 90 CV, 66 kw 2cil. - Bastidores: --- 2010-2014
Victory Hammer 1800 S 97 CV, 72 kw 2cil. - Bastidores: --- 2009
Victory Hammer 1800 S LE 90 CV, 66 kw 2cil. - Bastidores: --- 2012-2012
Victory Hammer 1800 S LE 90 CV, 66 kw 2cil. - Bastidores: --- 2014-2014
Victory Judge 1800 90 CV, 66 kw 2cil. - Bastidores: --- 2013-2014
Victory Judge 1800 ABS 88 CV, 65 kw 2cil. - Bastidores: --- 2015-2016
Victory Judge 1800 ABS 95 CV, 70 kw 2cil. - Bastidores: --- 2017
Victory Kingpin 1800 90 CV, 66 kw 2cil. - Bastidores: --- 2010
Victory Kingpin 1800 Eight Ball 90 CV, 66 kw 2cil. - Bastidores: --- 2010-2011
Victory Vegas 1634 Low 85 CV, 63 kw 2cil. - Bastidores: --- 2009
Victory Vegas 1800 2cil. - Bastidores: --- 2017
Victory Vegas 1800 88 CV, 65 kw 2cil. - Bastidores: --- 2016
Victory Vegas 1800 90 CV, 66 kw 2cil. - Bastidores: --- 2010-2012
Victory Vegas 1800 Eight Ball 2cil. - Bastidores: --- 2017
Victory Vegas 1800 Eight Ball 88 CV, 65 kw 2cil. - Bastidores: --- 2015-2016
Victory Vegas 1800 Eight Ball 90 CV, 66 kw 2cil. - Bastidores: --- 2010-2014
Victory Vegas 1800 Jackpot 90 CV, 66 kw 2cil. - Bastidores: --- 2010-2014
Victory Vegas 1800 Jackpot 97 CV, 72 kw 2cil. - Bastidores: --- 2009
Victory Vegas 1800 Jackpot Ness 90 CV, 66 kw 2cil. - Bastidores: --- 2010
Victory Vegas 1800 Zach Ness 90 CV, 66 kw 2cil. - Bastidores: --- 2011-2012
Victory Vision Tour 1800 94 CV, 69 kw 2cil. - Bastidores: --- 2009
Victory Vision Tour 1800 ABS 83 CV, 61 kw 2cil. - Bastidores: --- 2015
Victory Vision Tour 1800 ABS 90 CV, 66 kw 2cil. - Bastidores: --- 2010-2014
Victory Vision Tour 1800 Arlen Ness ABS 90 CV, 66 kw 2cil. - Bastidores: --- 2011-2013
