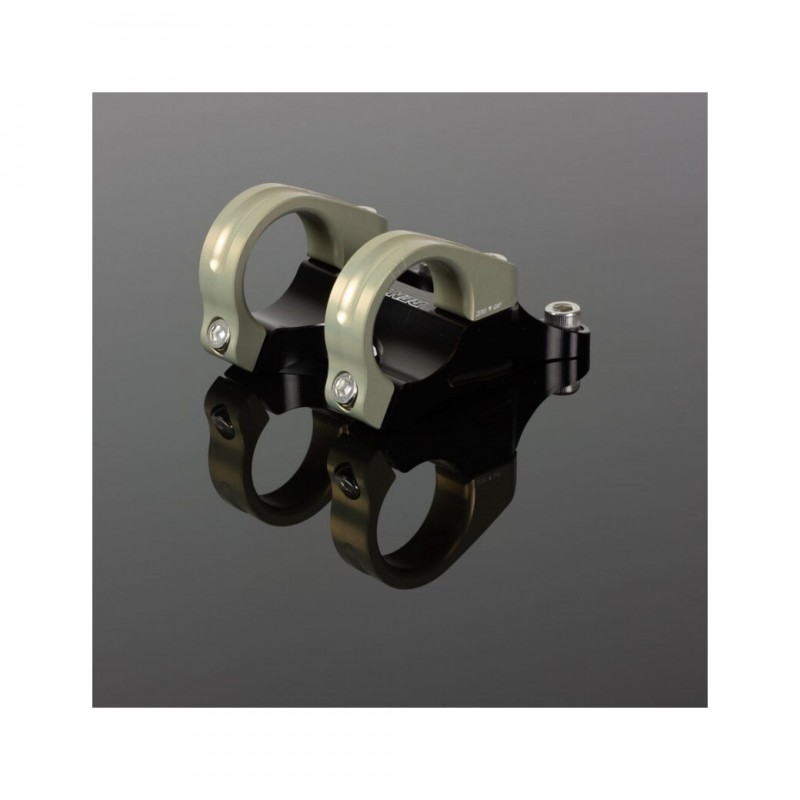

RENTHAL Handlebar stem Ø35 50 MMXH10 MM 1120543

Renthal's revolutionary Integra stem combines high strength with ultra-light weight. The use of two independent C-shaped bar clamps allows the stem body material to be kept to a minimum, while maintaining an incredibly stiff and strong frame.

The large 64mm handlebar clamp area increases torsional rigidity and the use of just 6 bolts greatly reduces overall weight. Additionally, the unbroken clamp at the bottom of the handlebars eliminates stress increases found on competitive ones, which can lead to handlebar failure.

Characteristic:

CNC machined 6082 aluminum body. 7075 aluminum clamps.

Unique 240º C-shaped clamps.

Minimum 6 bolt design.

The U-shaped cradle clamp eliminates handlebar stress increases found on traditional stems.

Ultra-wide clamp clamping area, 64 mm.

Power Specification:

Offset: 50mm

Rise: +10mm

Binding: Boxxer/Fox IS

Clamp diameter: 35mm

Weight: 159 g (including screws)
ANGLE ( ° ): 10
LENGTH (MM): 50
DIAMETER Ø (MM): 35
RECOMMENDED USE: E-BIKE
MTB/BTT
WEIGHT (G): 159
