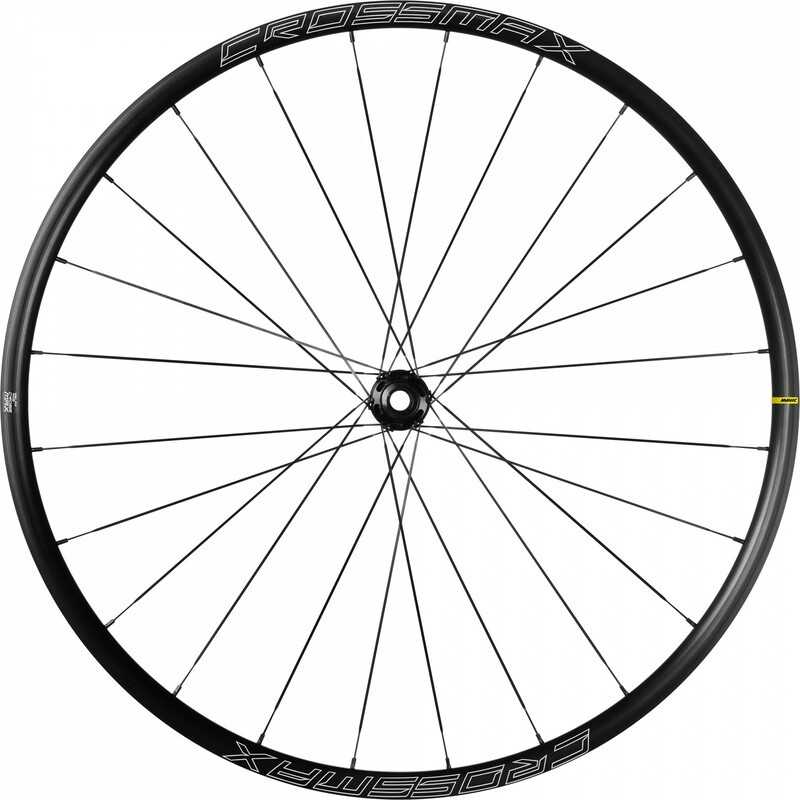

With Infinity hubs, an ID 360 freewheel and Maxtal welded rims, this modern XC wheel lives up to the legendary Crossmax name: strong, reliable and tubeless compatible.

Weight: 1770 grams (Pairs 29")

Weight: 820 grams (Front 29")

Weight: 950 grams (Rear 29")

The Crossmax has a long history in the world of XC racing and cycling, and this new wheelset lives up to its name with many of the same features and technologies as professional XC racing wheels, but at a much lower price. more accessible. One of the key factors is our UST technology, which allows easy setup of Tubeless Ready tires and gives you all the associated benefits like better traction and control, a smoother ride and less risk of punctures. The rim is welded for reliability and features a 25mm internal width with a hookless profile.

The lighter Infinity hub design optimizes lateral stiffness and spoke tension. Our Instant Drive 360 freewheel with a double ratchet system provides fast engagement and maximum reliability. The rear hub is compatible with optional Shimano HG9, Micro Spline and SRAM XD freehubs. The Crossmax is available with Center Lock or 6-bolt brake rotors in 29" and 27", and is compatible with a 15x110 front and 12x148 rear axle. The wheel is supplied with valves, spare spokes and accessories.

MAIN FEATURES

light and durable

Welded rim construction to: create a strong, lightweight rim profile and a perfectly sealed rim

dynamic and agile

24 double butted spokes Infinity hub platform ID 360 double ratchet freewheel system

Tubeless compatible technology

Tubeless rim profile and tubeless rim tape make it easy to use tubeless tires for added comfort and control

Specifications

Rims

Material: Maxtal

Drills: traditional

Valve hole diameter: 6.5mm

Inner width: 25mm

ETRTO size 29": 622x25TSS

Use with Mavic Tubeless Tape rim tape

Asymmetric rim design

UST Tubeless Ready

SUP welded joint technology

SPOKES

Material: Steel

Type: straight, flat, double butted

Nipples: steel, ABS

Quantity: 24 front and rear

Spoke: double crossed front and rear

cubes

Hub available with 6-bolt or center lock (R) brake rotors

Trucks: Front 15x110 Boost; Rear 12x148 Boost

Infinity Hubs

Instant Drive 360 freewheel technology

QRM Auto automatic bearing preload technology

versions

Disc fixing standard: six bolts or Center Lock®

Hub Width - Boost Only (110 Front, 148 Rear)

Free wheel; SRAM XD, Shimano HG, Shimano Micro Spline

COMPATIBILITY

Rear Axle: 12x148 Boost Thru Axle

Freewheel bodies and adapters

Boost - Tightening Caps (LV2374400)

USE

ASTM CATEGORY 3: CROSS-COUNTRY AND TRAIL

For a longer wheel life, Mavic recommends that the total weight supported by the wheels does not exceed 150 kg, bike included

Recommended tire sizes: 50 to 76mm (2.0" to 3.0")

Delivered with

UST valve and accessories

Tubeless rim tape

2 spare spokes with each wheel

USO RECOMENDADO: MTB

TREKKING/ TOURING
