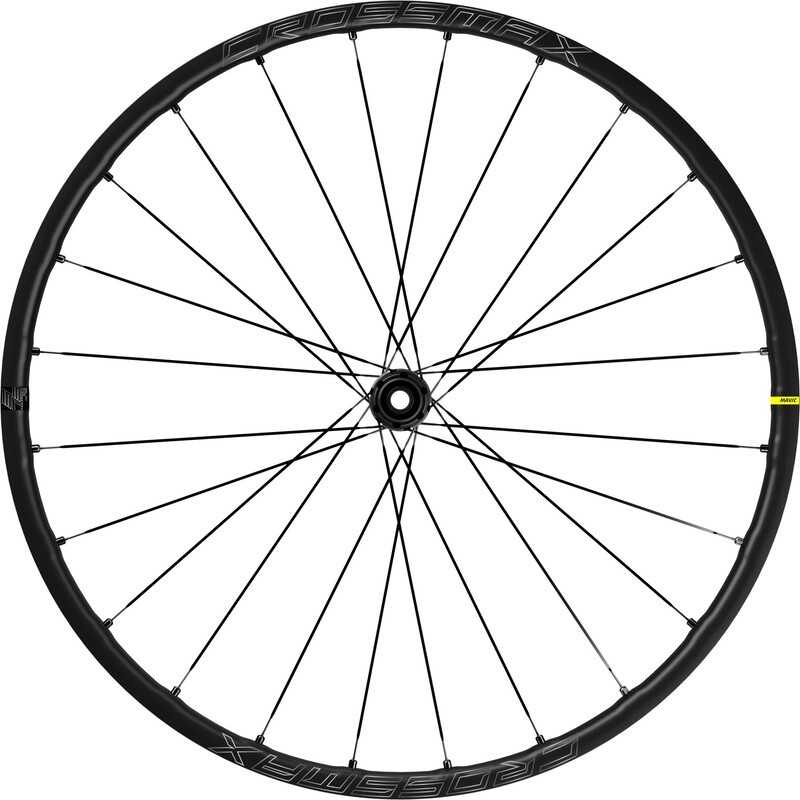

For high-spec cross-country performance, including faster climbing and descending, this premium 29er alloy wheelset offers stiffness, durability and the easiest tubeless system yet.

Weight: 1595 grams (Pair 29")

Weight: 735 grams (Front 29")

Weight: 860 grams (Rear 29")

Cross-country racing places a multitude of demands on a wheelset. Want one that helps you climb with speed and efficiency, descend with greater control, and tackle rough terrain with confidence? The Crossmax SL S is a light alloy wheel that does it all.

Designed with a specific rim profile that combines a 25mm inner width and our proprietary ISM 4D technology, this wheelset can increase your bike''''s performance at an affordable price compared to carbon wheel options. The ISM 4D process machines the rim in areas with less stress to reduce weight without compromising strength. The rim also features our Black Shield technology, which protects against scratches and dents so you can tackle the tough demands of bumpy terrain and rough trails.

The rims are designed with our patented Fore technology, with a fully sealed top rim rim that does not require the use of rim tape. This saves 30 grams per wheel, not to mention the difficulties associated with rim tape when mounting tubeless tires. The new Infinity hub is lighter and features new spokes that increase stiffness for better power transmission, and the Instant Drive 360 dual ratchet freewheel provides fast engagement. The rear hub is compatible with optional Shimano HG9, Micro Spline and SRAM XD freehubs. The Crossmax SL S is available with Center Lock or 6-bolt brake rotors in 29" only. It is compatible with a 15x110 front axle and a 12x148 rear axle, and is supplied with valves, spare spokes and accessories.

MAIN FEATURES

Best-in-class set of XC alloy wheels

ISM 4D rim machining reduces weight to close the gap to carbon rims without compromising strength. The lighter rims result in super low inertia and instant acceleration.

Increased traction and durability

25mm wide flangeless rim profile optimized for lower tire pressure resulting in better grip in all conditions. Optimized for modern XC tubeless tires from 2.1 to 2.3". Black Shield treatment protects rims from impact and scratches.

The easiest tubeless system to use

Fore''''s fully sealed rimless rim technology makes tubeless tires easy to mount and change. The top rim of the rim remains intact, increasing the rim''''s stiffness and durability.

Specifications

Rims

Material: Maxtal

Material: S6000 Aluminum

Lightening: ISM 4D

Tire: UST Tubeless and tubed

Inner width: 25mm

ETRTO size 29": 622x25TSS

Profile without internal tabs (hookless)

Black Shield treatment (protects your rim against impacts and scratches)

Asymmetric rim design

Fore tubeless technology without rim tape

SUP welded joint technology

SPOKES

Material: Steel

Type: straight, flat, double butted

Nipples: Fore integrated in aluminum

Quantity: 24 front and rear

Lacing: double crossed front and rear, non-contact

cubes

Hub available with 6-bolt or center lock (R) brake rotors

Trucks: Front 15x110 Boost; Rear 12x148 Boost

Infinity Hubs

Instant Drive 360 freewheel technology

versions

Disc fixing standard: six bolts or Center Lock®

Hub Width - Boost Only (110 Front, 148 Rear)

Free wheel; SRAM XD, Shimano HG, Shimano Micro Spline

COMPATIBILITY

Freewheel: Shimano HG9, XD or Micro Spline

Rear Axle: 12x148 Boost Thru Axle

Front Axle: 15x110 Boost Thru Axle

Freewheel bodies and adapters

Boost - Tightening Caps (LV2374400)

Shimano ID360 Alloy Freewheel Freehub Body (LV3780100)

Shimano Micro Spline ID360 Alloy Freewheel Freehub Body (LV3990100)

Freehub Body XD ID360 (LV3740100)

USE

ASTM CATEGORY 3: CROSS-COUNTRY AND TRAIL

For a longer wheel life, Mavic recommends that the total weight supported by the wheels does not exceed 120kg, bike included

Recommended tire sizes: 50 to 76mm (2.0" to 3.0")

Delivered with

UST valve and accessories

Multifunction adjustment wrench

2 spare spokes with each wheel

Fore Adjustment Wrench

USO RECOMENDADO: MTB
