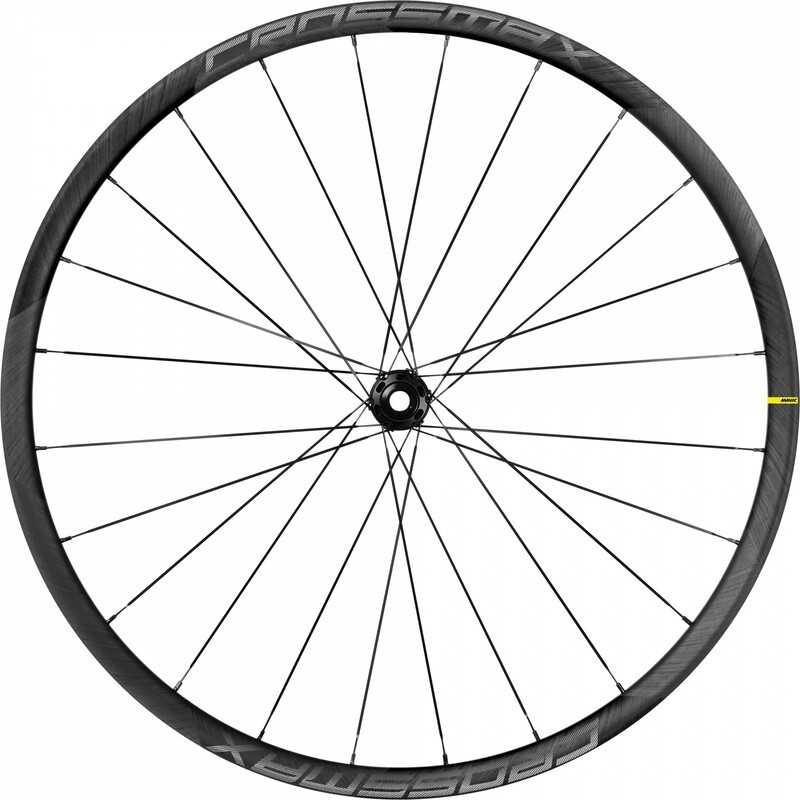

With a 30mm reinforced carbon rim, the Crossmax Carbon XL R is a versatile terrain hunter. From steep climbs to wild descents, this 29" wheel helps you conquer everything the mountain has to offer.

Weight: 1595 grams (Pair 29")

Weight: 735 grams (Front 29")

Weight: 860 grams (Rear 29")

Leg-breaking ascents, exciting descents, heart-stopping landscapes and cold beers at the end of the day. These are the days we dream of and this is the wheelset that will help us make it happen.

The new Crossmax Carbon XL R has everything you need to be your faithful companion in all your terrain explorations. When it comes to carbon MTB wheels, there is something that is too stiff. That''''s why the Crossmax Carbon XL R rim was developed around a low-profile shape that produces just enough vertical compliance to smooth ride quality without compromising the ability to climb and turn efficiently and precisely. The rims feature an asymmetrical shape and 30mm width, designed to perfectly fit and optimize the performance of any modern trail tire. The outer carbon layer features our UD² construction for a distinctive look and increased durability.

We used 24 straight pull spokes to further fine-tune the ideal mix of lateral stiffness and vertical compliance. Infinity hubs feature a stiffer, lighter construction enhanced by the ultra-reliable ID 360 dual ratchet system for fast engagement. Weighing just 1590g, it''''s a wheelset that lets you forget about the road and find your groove. It''''s available with Center Lock or 6-bolt rotor mounts, and is compatible with Shimano HG9, SRAM XD and Micro Spline freewheel freehubs. The Crossmax XL R is available in 29" and comes with UST tubeless valves, spare spokes and accessories.

MAIN FEATURES

Versatile and dynamic trail riding performance

30mm reinforced UD² carbon rim for efficient climbing, plus overall strength for technical terrain.

Increased strength and smooth handling on rough terrain

The low-profile rim shape provides frontal compliance and increased stability on bumpy roads. 30mm rim width optimized for lower tire pressure and an ideal fit with modern 2.3-2.6" trail tires. 24 straight pull spokes for lateral stiffness and vertical compliance.

efficient power transmission

: Lighter, stiffer Infinity hubs with an ultra-reliable ID 360 dual ratchet freewheel system for instant acceleration.

Specifications

Rims

Drills: traditional

Inner width: 30mm

Profile without internal tabs (hookless)

ETRTO size 29": 622x30TSS

Asymmetric rim design

UST Tubeless Ready

SPOKES

Material: Steel

Type: straight, flat, double butted

Nipples: aluminium, ABS

Quantity: 24 front and rear

Lacing: double crossed front and rear, non-contact

cubes

Hub available with 6-bolt or center lock (R) brake rotors

Infinity Hubs

Instant Drive 360 freewheel technology

QRM Auto automatic bearing preload technology

versions

Disc fixing standard: six bolts or Center Lock®

Hub Width - Boost Only (110 Front, 148 Rear)

Free wheel; SRAM XD, Shimano HG, Shimano Micro Spline

COMPATIBILITY

Rear Axle: 12x148 Boost Thru Axle

Front Axle: 15x110 Boost Thru Axle

Boost Trucks: 15x110; 12x148

Freewheel bodies and adapters

Boost - Tightening Caps (LV2374400)

Shimano ID360 Alloy Freewheel Freehub Body (LV3780100)

Shimano Micro Spline ID360 Alloy Freewheel Freehub Body (LV3990100)

Freehub Body XD ID360 (LV3740100)

USE

ASTM CATEGORY 4: ENDURO AND TRAIL

For a longer wheel life, Mavic recommends that the total weight supported by the wheels does not exceed 150 kg, bike included

Recommended tire sizes: 50 to 76mm (2.0" to 3.0")

Delivered with

UST valve and accessories

Tubeless rim tape

Multifunction adjustment wrench

2 spare spokes with each wheel

USO RECOMENDADO: MTB
