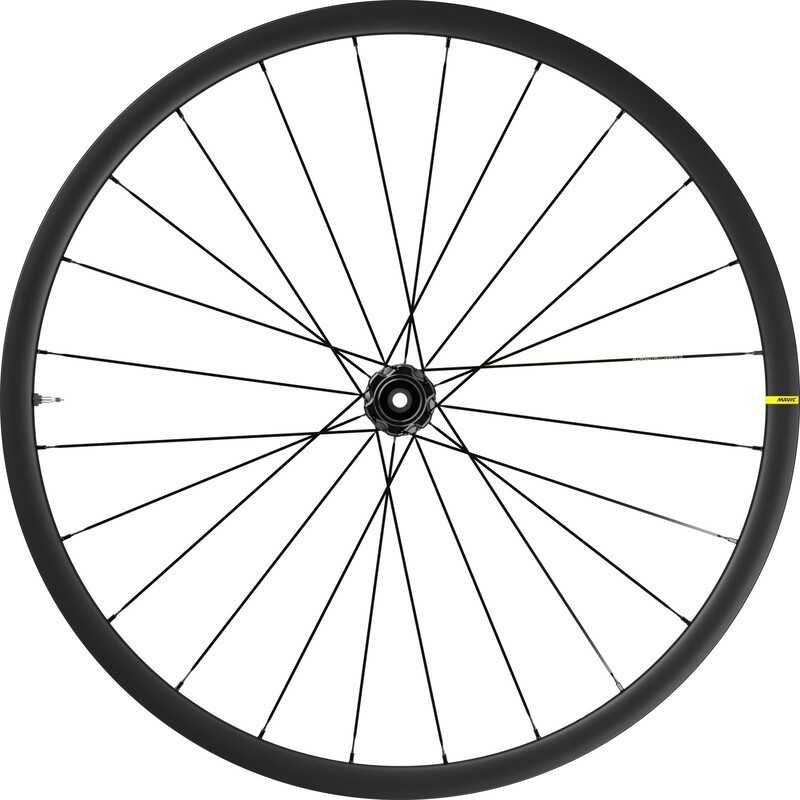

Our high-performance Allroad carbon wheels help you tackle bumpy, cobbled or gravel roads with speed, control and a dynamic ride quality.

Weight: 1445 grams (Couple)

Weight: 670 grams (Front)

Weight: 775 grams (Rear)

From gravel racing to epic adventures on all types of terrain, this superlight carbon wheel combines speed, agility and durability to help you put in more miles with smooth-rolling efficiency.

The Allroad Pro Carbon SL incorporates cutting-edge technologies that combine our proven expertise in building winning road rims and durable, smooth-rolling MTB wheels. The full carbon rims have a 23mm inner width and feature our UST Tubeless technology. This gives them a super dynamic feel and the highest puncture resistance of tubeless tyres. The rims are compatible with a wide range of tires (from 28 to 62mm), giving you the freedom to choose depending on the terrain you find yourself on.

Double butted lightweight steel spokes provide enough vertical compliance to ride on bumpy roads. The wheels feature 24 spokes front and rear to optimize the distribution of braking torque. It''''s everything you need to tackle bumpy roads and gravel or dirt roads with maximum control and speed.

Our Instant Drive 360 freewheel system, along with our automatic bearing preload adjustment (QRM Auto), offers fast engagement and durability. Designed specifically for disc brakes, it''''s compatible with a 12x100 front and 12x142 rear axle, and can be converted to a quick release using the supplied adapters. The front hub can be easily converted to 15mm via an optional axle. It''''s available for Shimano and Sram XD-Road cassettes, and can be converted to Campagnolo via an optional freehub.

Only for Center Lock discs.

MAIN FEATURES

Climb with less effort and accelerate with greater agility

Superlight full carbon rims optimized for impact resistance Lightweight double-butted steel spokes keep weight low and maintain vertical compliance Instant Drive 360 freewheel for fast engagement and reliability

Roll smoother and faster on bumpy roads with less risk of punctures

23mm UST rims and tubeless tires reduce rolling resistance UST Road Tubeless lets you run lower tire pressure for more comfort and control on bumpy roads Compatible with a wide range of tires from 28 to 62 hmm

Powerful and reliable braking reinforces the feeling of confidence and control

24 spokes front and rear to optimize braking torque distribution Compatible with any axle, including 12 or 15mm thru-axles and quick releases Compatible with Center Lock and XD Road brakes with optional hub

Specifications

Rims

Material: 100% unidirectional carbon fiber

Height: 25mm

Drills: traditional

Specific profile for disc brakes

Valve hole diameter: 6.5mm

Tire: UST Tubeless and tubed

Inner width: 23mm

ETRTO Measurement: 622x23TSS Road

Profile without internal tabs (hookless)

Use with Mavic Tubeless Tape rim tape

UST Tubeless Ready

SPOKES

Material: Steel

Type: straight, flat, double butted

Nipples: aluminium, ABS

Quantity: 24 front and rear

Lacing: Double Crossed Front, Isopulse Rear

Isopulse spoke design

cubes

Front and rear core: aluminum

Axle material: aluminum

Front: 12x100 and 15x100 thru-axle and quick release compatible

Rear: Quick release compatible, 12x142 and 12x135

Instant Drive 360 freewheel technology

QRM Auto automatic bearing preload technology

versions

Colour: only black

Disc fixing standard: only Center Lock®

COMPATIBILITY

Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional freehubs

Front Axle: 12x100 thru-axle, easily convertible to quick release with included adapters. Not compatible with 15 thru-axles

Rear Axle: 12mm thru-axle, convertible to quick release with included adapters

Freewheel bodies and adapters

Front adapter from 12 to 9 mm for quick release (LV2680300)

15mm axle (LV2373500)

12x142 rear axle adapters ([LV2510700] - Delivered with the wheel)

Rear adapter 12 to 9 mm for quick release ([LV2510800] - Delivered with the wheel)

12x135 Rear Axle Adapters (LV2510900) with Axle [LV2373400]

Shimano/Sram ID360 Lightweight Freehub Body (LV3850100)

Campagnolo ID360 Freehub Body (LV3440100)

Freehub Body XD ID360 (LV2580100)

Shimano/Sram ID360 Freehub Body ([LV3430100]- Delivered on the wheel)

USE

ASTM CATEGORY 2: road and MTB with jumps less than 15 cm

For a longer wheel life, Mavic recommends that the total weight supported by the wheels does not exceed 120kg, bike included

Recommended tire sizes: 28 to 64 mm (1.1" to 2.5")

Maximum pressure: check the indications on the wheel and tire. If they are different, use the smaller of the two.

Delivered with

Mavic Tire Sealant (rear wheel)

tire sealant syringe

Front quick release adapters

Rear axle quick release adapters with Instant Drive 360

UST valve and accessories

Tubeless rim tape

User guide

RECOMMENDED USE: GRAVEL

CICLOCROSS
