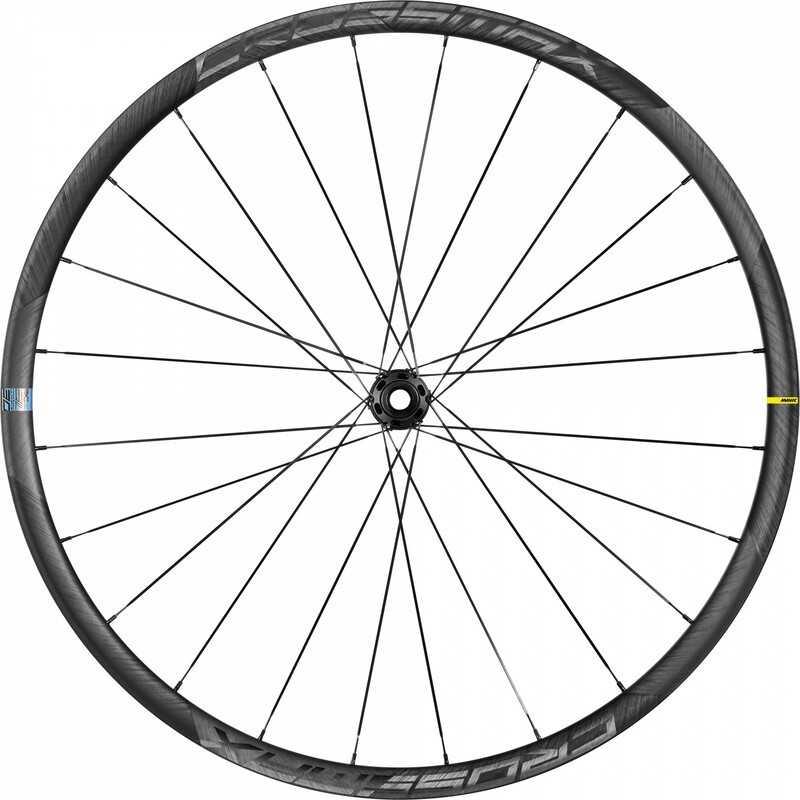

Conceived for Olympic athletes, the new Crossmax SL Ultimate is the most dynamic XC wheelset ever created by Mavic. Lighter, stiffer, faster... all for gold.

Weight: 1380 grams (Pair 29")

Weight: 625 grams (Front 29")

Weight: 755 grams (Rear 29")

At just 1380 grams, this is the wheel that performance-obsessed cross-country racers dream of. Developed with input from top pro cyclists looking for a competitive edge in the World Cups and Olympics, it features an ultralight 29" full carbon rim (360g) for fast acceleration and climbing without compromising stiffness and stability. the durability.

Adaptive Laminate specific carbon layup technology allowed us to hand-engineer these carbon rims with less material between the spokes. The spoke holes are reinforced with strategically placed layers of carbon in a process that minimizes weight without compromising stiffness and strength. A lighter tire means quicker acceleration, more efficient climbing, and immediate response on the ground. The outer carbon layer features our UD² construction for a distinctive look and increased durability.

Extensive field testing with our pro riders determined that a 25mm inner width was ideal for fast, precise ride quality and optimized tire grip on fast tracks. For more technical trails, some prefer a 30mm width for more control, so we''''ve created two options. We leave it to your choice, and you can combine both if you want. You could choose the Crossmax Ultimate 25 for the rear to boost acceleration and efficiency, and the Crossmax Ultimate 30 for the front to add confidence and control on rough trails.

The carbon rim is equipped with 24 double-crossed (same length) double-butted straight pull spokes for maximum power transmission and increased vertical compliance. The new lighter Infinity hub design optimizes lateral stiffness and lacing maximizes power transmission. Our Instant Drive 360 freewheel with a dual ratchet system provides quick engagement and high stiffness to help you get out of corners faster. The rear hub is compatible with optional Shimano HG9, Micro Spline and SRAM XD freehubs.

The Crossmax SL Ultimate 30 is available with Center Lock or 6-bolt brake rotors in 29" only and is compatible with a 15x110 front and 12x148 rear axle. Supplied with valves, spare spokes and MTB wheel covers.

MAIN FEATURES

Fly up the climbs and accelerate faster

New adaptive carbon layup technology saves 70g per rim. The 25mm wide rim only weighs 340g.

Stiff and smooth ride quality

A special carbon rim layup for increased rim stiffness and greater control on the descent. Double butted and double crossed spoke pattern to improve vertical compliance.

efficient power transmission

The new lighter Infinity hub design and 24 straight pull spokes improve stiffness and balance of spoke stresses.

Specifications

Rims

Drills: traditional

Inner width: 30mm

Profile without internal tabs (hookless)

ETRTO size 29": 622x30TSS

Adaptive Carbon Layup Technology

UST Tubeless Ready

SPOKES

Material: Steel

Type: straight, flat, double butted

Nipples: aluminium, ABS

Quantity: 24 front and rear

Lacing: double crossed front and rear, non-contact

cubes

Hub available with 6-bolt or center lock (R) brake rotors

Trucks: Front 15x110 Boost; Rear 12x148 Boost

Infinity Hubs

Instant Drive 360 freewheel technology

QRM Auto automatic bearing preload technology

versions

Disc fixing standard: six bolts or Center Lock®

Hub Width - Boost Only (110 Front, 148 Rear)

Free wheel; SRAM XD, Shimano HG, Shimano Micro Spline

COMPATIBILITY

Rear Axle: 12x148 Boost Thru Axle

Front Axle: 15x110 Boost Thru Axle

Freewheel bodies and adapters

Boost - Tightening Caps (LV2374400)

Shimano ID360 Alloy Freewheel Freehub Body (LV3780100)

Shimano Micro Spline ID360 Alloy Freewheel Freehub Body (LV3990100)

Freehub Body XD ID360 (LV3740100)

USE

ASTM CATEGORY 3: CROSS-COUNTRY AND TRAIL

For a longer wheel life, Mavic recommends that the total weight supported by the wheels does not exceed 150 kg, bike included

Recommended tire sizes: 50 to 76mm (2.0" to 3.0")

Delivered with

UST valve and accessories

Tubeless rim tape

Multifunction adjustment wrench

wheel cover

2 spare spokes with each wheel

USO RECOMENDADO: MTB
