high pressure tester HD GDP 400 BAR 614.21.50

GDP 400 High Pressure Tester

High pressure tester for gasoline engines with direct injection (GDI), with analog pressure gauge

For fast, simple and safe checking of the static and dynamic pressure of the high pressure circuit on GDI* engines.

Max. Working pressure up to 400 bar

For example, it is required

for static test of the pressure pump when starting the engine

for pressure testing of dynamic systems at changing speeds

universally applicable

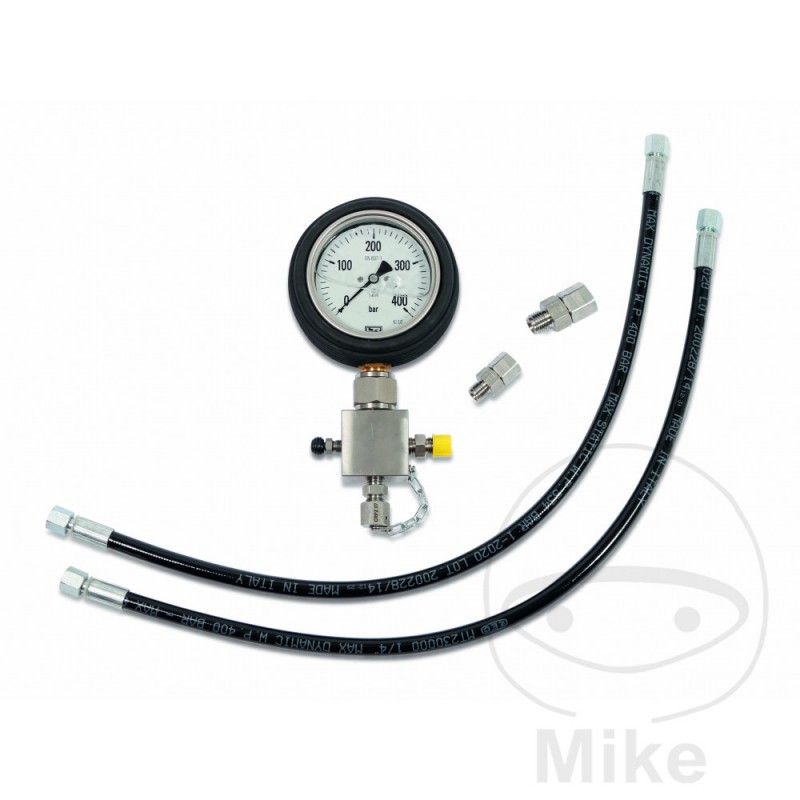

Scope of delivery:

1 test block with pressure gauge and GSK, analogue version: NG 100, measuring range 0...400 bar.

2 flexible pressure lines, 0.70 m long, M14x1.5

2 M12x1.5 adapters

Delivered in a sturdy plastic box
