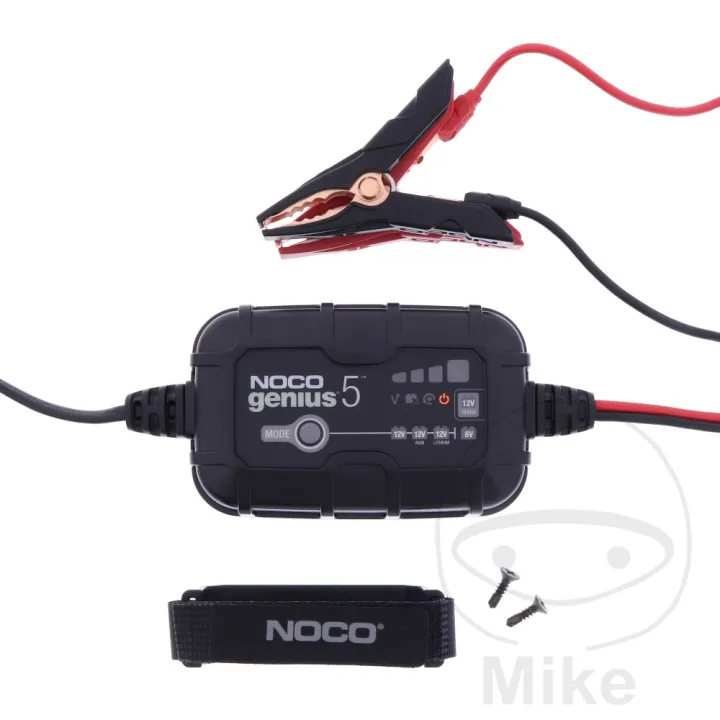

NOCO Battery charger GENIUS 5 EU 6/12 V A 609.03.17

NOCO Genius5 battery charger

Suitable for 6 + 12 volt batteries

Battery types: Wet, Gel, Maintenance Free, AC, EFB, AGM, and Lithium-Ion

· Can be used for cars, motorcycles, motor homes, boats, lawn mowers, etc.

Charging of batteries with a capacity of up to 120 Ah

The integrated temperature sensor measures the ambient temperature and regulates the charging process.

Overcharge protection: the device can remain permanently connected to the battery

reverse polarity protection

Pulse maintenance charge

Force mode: charge deeply discharged batteries from just 1V

Repair mode: Sulfated batteries recovery mode

· Battery terminals have removable grommets for permanent mounting on battery.

Technical specifications:

Charging voltage: 6V, 12V

Charge current: 5A (6V), 5A (12V)

Battery capacity: up to 120 Ah (12V)

Low voltage detection: 1V (6V), 1V (12V)

Back discharge current: <0.5 ma

Ambient temperature: -20 ° C to + 40 ° C

Battery Chemicals: Flooded, Gel, Maintenance Free, AC, EFB, AGM, and Lithium-Ion Batteries

Housing protection: IP65

Cooling: natural convection

Dimensions (LxWxH): 161x74x48mm

Power cable length: 1,420 mm.

Charging cable length: 2,170 mm.

Weight: 0.68kg

Delivery scope:

genius10 battery charger

Load clips with built-in eyelets

mounting bracket with straps

User's guide

Approximate charging times:

Battery size 6V 12V

20Ah 3.0h 3.0h

40Ah 6.0h 6.0h

80Ah 12.0h 12.0h

100 Ah 15.0 hrs 15.0 hrs

230 Ah 18.0 hrs 18.0 hrs
