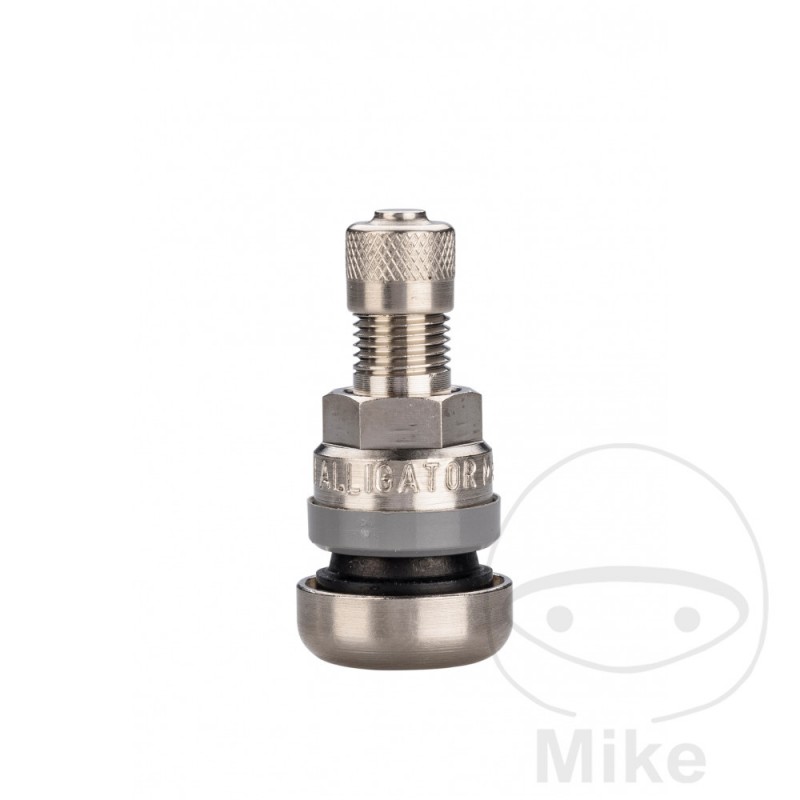

METAL VALVE 40MS / 11.3 Quick adjustment
In the sealing concept, the clamping forces are introduced directly into the metal of the rim
The seal can fulfill its task without being affected by external forces.
Has a continuous sleeve thread, slotted foot for holding tool
KF washer firmly pre-mounted
The cover can be mounted on the metal valve cover
The valve foot is manufactured according to ETRTO.
The valve is tested for function and tightness after the manufacturing process
No valve movement under centrifugal force.
increased tension
Technical data:
MATERIAL: METAL
Wrench Size: 12mm
Wheel hole: 11.3mm + - 0.4mm
Rim thickness: 1.2mm - 5mm.
Length: 31.5mm.
Maximum working pressure: 20 bar
Maximum tightening torque: 4-6 Nm
no speed limit
736.40.01
10 Items
