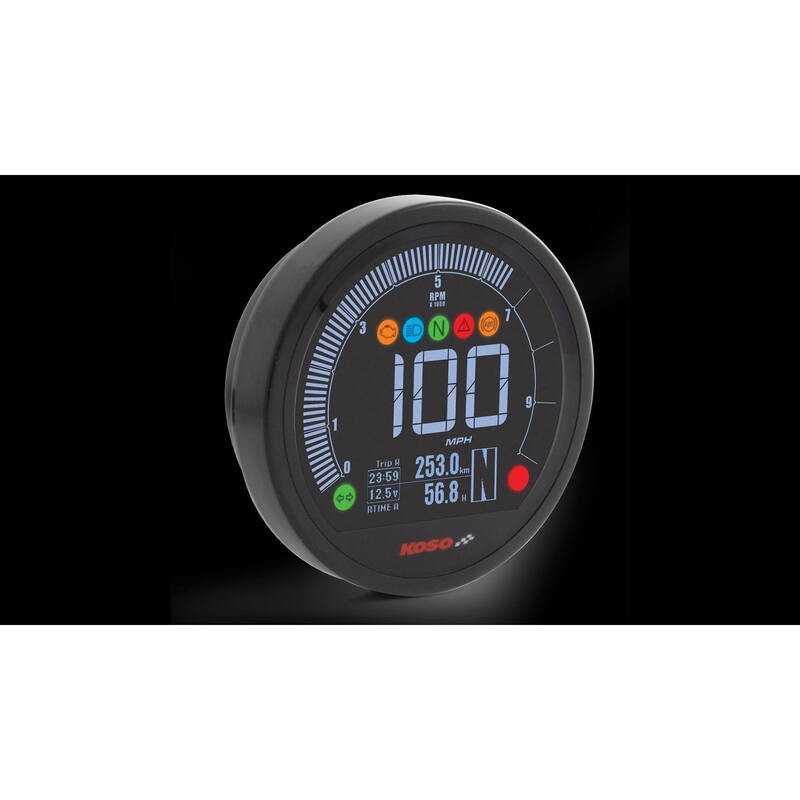

Vehicle-specific DL-04 digital rev counter with speed indicator and certain extras in black. Thanks to matching plugs, a suitable plug & play solution for the BMW R nineT®.

DL-04 meter product information:

Speedometer:

Display unit: 0 - 360 km/h (0-225 MPH) switchable

Display unit: 1 km/h (MPH)

total odometer:

Display indication: 0 - 99,999 km (mile)

Display unit: 1 km (mile)

Trip meter:

Display: 0 - 9,999.9 km (mile)

Display unit: 0.1 km (mile)

Tripmeter OR:

Range to oil change

Display indication: 0 - 9,999.9 km (mile)

Display unit: 0.1 km (mile)

Tripmeter A:

Range to service

Display: 0 - 9,999.9 km (mile)

Display unit: 0.1 km (mile)

Oil change interval:

Adjustment range: 3,000 - 16,000 km (300 - 10,000 miles)

Setting unit: 100 km (mile)

Gear indicator:

Display indication: N, 1 - 6

Maximum speed warning:

Adjustment range: 30 - 360 km/h (18 - 225 MPH)

Setting unit: 1 km/h (MPH)

Tachometer:

Display indication: 0 - 10,000 RPM / 0 -15,000 RPM

Tachometer warning light:

Adjustment range: 5,000 - 15,900 RPM

Setting unit: 100 RPM

Temperature:

Display reading: 0 - 250 °C (32 - 482 °F).

Temperature warning:

Adjustment range: 60 - 250 °C (140 - 482 °F)

Setting unit: 1°C (1°F)

Voltmeter:

Display indication: 8.0 - 18.0 V

Low voltage warning:

Adjustment range: 8.0V - 12.5V

Setting unit: 0.1V

Operating hours counter:

Display unit: 0.0 - 9999.9 hours

Display unit: 0.1 hour (6 minutes)

Hour counter 1 - 2:

Display indication: 0.0 - 9999.9 hours

Display unit: 0.1 hour (6 minutes)

Low oil level indicator A:

Display indication: 0.0 - 9999.9 hours

Display unit: 0.1 hour (6 minutes)

Record of maximum values:

highest speed

Display unit: 0 - 360 km/h (0 - 225 MPH)

highest speed

Display unit: 0 - 15,000 RPM

highest temperature

Display indication: 0 - 250 °C (32 - 482 °F)

highest voltage

Display indication: 8.0 - 18V

highest gear

Display indication: N / 1 - 6

Clock:

Adjustment range: 12/24 hour system

Background Brightness:

Setting range: 1-5 (darker) - 5-5 (brighter)

Voltage:

DC 12V

Temperature range:

-10 - +60°C

Specifications:

JIS D 0203 (S2)

Size:

diameter 96mm

WEIGHT:

approx. 194.5g

Warning lights:

indicator (green)

Check engine light (yellow)

High beam (Blue)

Neutral (Green)

Warning light (red)

ABS (yellow)

Speed flash (red)

Scope of delivery: 1 piece
VOLTAJE: 12V


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW R NINE T /5 1200 2020
BMW R NINE-T ABS (0J01) 1200 2017-2022
BMW R NINE-T PURE ABS (0J11) 1200 2017-2022
BMW R NINE-T RACER ABS (0J21) 1200 2017-2020
BMW R NINE-T SCRAMBLER ABS (0J31) 1200 2017-2022
BMW R NINE-T URBAN G/S ABS (0J41) 1200 2017-2022
