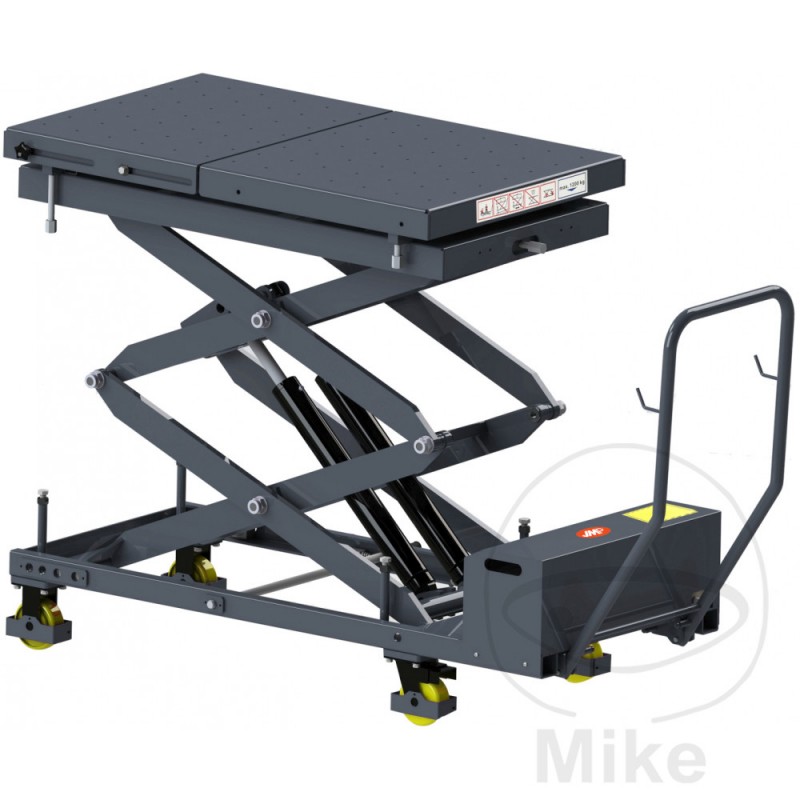

MOBIL Scissor lift ROX 1200 H 674.02.80

JMP Rox 1200 H Mobile scissor lift table

Electrohydraulic drive, universally applicable, for the disassembly and assembly of motors, reducers, high voltage batteries.

The mounting platform is provided with tapped holes for the use of field adaptations

Thanks to the large 360° swivel wheels, easy maneuvering is possible even when loaded

Picking platform tiltable longitudinally and transversely, 200 mm extendable

continuous descent

Technical data:

Load capacity: 1,200 kg

Height (mm) min: 570

Height (mm) max: 2,050

Color (RAL 7016)

Engine (kW): 1.1

Electrical connection (volts) 230
