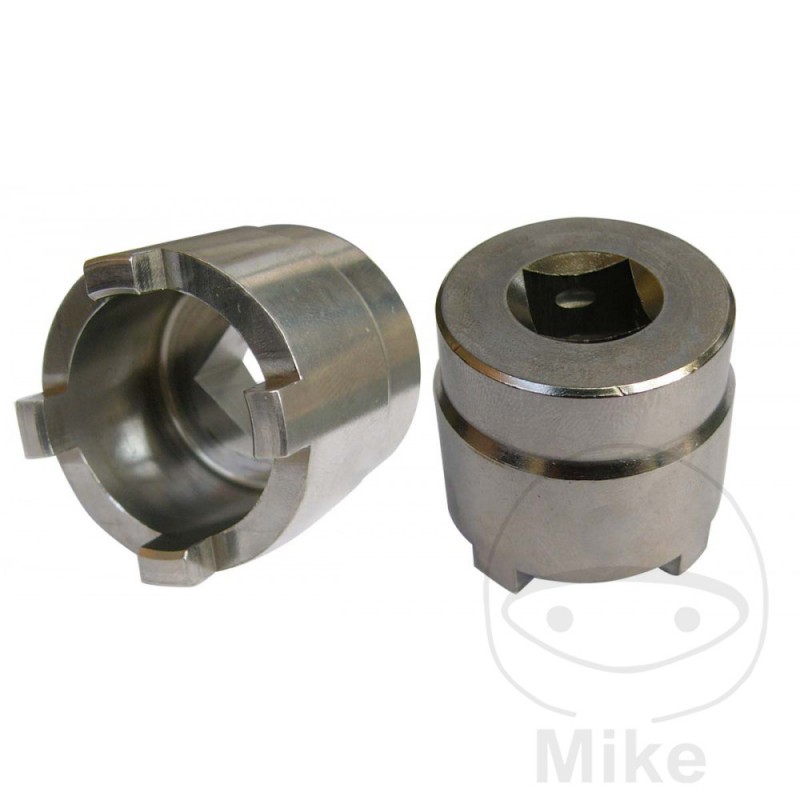

JMP slotted nut wrench 28.5 MM 722.80.60

JMP Locknut Wrench

p. eg to remove the swingarm axle nut

4 pins / cones 4.2 x 6.8 mm

- Outer Ø: 37 mm

- inner Ø: 28.5 mm
INSIDE DIAMETER: 28.5MM
OUTER DIAMETER: 37MM
QUANTITY OF PINS: 4
PIN WIDTH: 4.2 MM
PIN HEIGHT: 4.6 MM
SHAPE OF THE PINS: ANGULAR
OVERALL HEIGHT: 35.2MM
DRIVE: 1/2"


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki Z 1000 B 125 CV, 92 kw 4cil. ZRT00BBA 7F Bastidores: ZRT00BBA henceforth00001-ZRT00BBA henceforth15000 2007
Kawasaki Z 1000 B 125 CV, 92 kw 4cil. ZRT00BBA 8F Bastidores: ZRT00BBA henceforth15001-ZRT00BBA henceforth29000 2008
Kawasaki Z 1000 B 125 CV, 92 kw 4cil. ZRT00BBA 9F Bastidores: ZRT00BBA henceforth29001-ZRT00BBA-999999 2009
Kawasaki Z 1000 B 98 CV, 72 kw 4cil. ZRT00BBA 7F Bastidores: ZRT00BBA henceforth00001-ZRT00BBA henceforth15000 2007
Kawasaki Z 1000 B 98 CV, 72 kw 4cil. ZRT00BBA 8F Bastidores: ZRT00BBA henceforth15001-ZRT00BBA henceforth29000 2008
Kawasaki Z 1000 B 98 CV, 72 kw 4cil. ZRT00BBA 9F Bastidores: ZRT00BBA henceforth29001-ZRT00BBA-999999 2009
Kawasaki Z 1000 C ABS 125 CV, 92 kw 4cil. ZRT00BCA 7F Bastidores: ZRT00BCA henceforth00001-ZRT00BCA henceforth15000 2007
Kawasaki Z 1000 C ABS 125 CV, 92 kw 4cil. ZRT00BCA 8F Bastidores: ZRT00BCA henceforth15001-ZRT00BCA henceforth29000 2008
Kawasaki Z 1000 C ABS 125 CV, 92 kw 4cil. ZRT00BCA 9F Bastidores: ZRT00BCA henceforth29001-ZRT00BCA-999999 2009
Kawasaki Z 1000 C ABS 98 CV, 72 kw 4cil. ZRT00BCA 7F Bastidores: ZRT00BCA henceforth00001-ZRT00BCA henceforth15000 2007
Kawasaki Z 1000 C ABS 98 CV, 72 kw 4cil. ZRT00BCA 8F Bastidores: ZRT00BCA henceforth15001-ZRT00BCA henceforth29000 2008
Kawasaki Z 1000 C ABS 98 CV, 72 kw 4cil. ZRT00BCA 9F Bastidores: ZRT00BCA henceforth29001-ZRT00BCA-999999 2009
Kawasaki Z 750 J 110 CV, 81 kw 4cil. ZR750JJA 1H Bastidores: ZR750JJA henceforth00001-ZR750JJA henceforth25000 2004
Kawasaki Z 750 J 110 CV, 81 kw 4cil. ZR750JJA 2H Bastidores: ZR750JJA henceforth25001-ZR750JJA henceforth57000 2005
Kawasaki Z 750 J 110 CV, 81 kw 4cil. ZR750JJA 6F Bastidores: ZR750JJA henceforth57001-ZR750JJA-999999 2006
Kawasaki Z 750 J 34 CV, 25 kw 4cil. ZR750JJA 1H Bastidores: ZR750JJA henceforth00001-ZR750JJA henceforth25000 2004
Kawasaki Z 750 J 34 CV, 25 kw 4cil. ZR750JJA 2H Bastidores: ZR750JJA henceforth25001-ZR750JJA henceforth57000 2005
Kawasaki Z 750 J 34 CV, 25 kw 4cil. ZR750JJA 6F Bastidores: ZR750JJA henceforth57001-ZR750JJA-999999 2006
Kawasaki Z 750 J 98 CV, 72 kw 4cil. ZR750JJA 1H Bastidores: ZR750JJA henceforth00001-ZR750JJA henceforth25000 2004
Kawasaki Z 750 J 98 CV, 72 kw 4cil. ZR750JJA 2H Bastidores: ZR750JJA henceforth25001-ZR750JJA henceforth57000 2005
Kawasaki Z 750 J 98 CV, 72 kw 4cil. ZR750JJA 6F Bastidores: ZR750JJA henceforth57001-ZR750JJA-999999 2006
Kawasaki Z 750 L 106 CV, 78 kw 4cil. ZR750LLA 7F Bastidores: ZR750LLA henceforth00001-ZR750LLA henceforth24000 2007
Kawasaki Z 750 L 106 CV, 78 kw 4cil. ZR750LLA 8F Bastidores: ZR750LLA henceforth24001-ZR750LLA henceforth58000 2008
Kawasaki Z 750 L 106 CV, 78 kw 4cil. ZR750LLA 9F Bastidores: ZR750LLA henceforth58001-ZR750LLA henceforth90000 2009
Kawasaki Z 750 L 106 CV, 78 kw 4cil. ZR750LLA AF Bastidores: ZR750LLA henceforth90001-ZR750LLA-115000 2010
Kawasaki Z 750 L 34 CV, 25 kw 4cil. ZR750LLA 7F Bastidores: ZR750LLA henceforth00001-ZR750LLA henceforth24000 2007
Kawasaki Z 750 L 34 CV, 25 kw 4cil. ZR750LLA 8F Bastidores: ZR750LLA henceforth24001-ZR750LLA henceforth58000 2008
Kawasaki Z 750 L 34 CV, 25 kw 4cil. ZR750LLA 9F Bastidores: ZR750LLA henceforth58001-ZR750LLA henceforth90000 2009
Kawasaki Z 750 L 34 CV, 25 kw 4cil. ZR750LLA AF Bastidores: ZR750LLA henceforth90001-ZR750LLA-115000 2010
Kawasaki Z 750 L 98 CV, 72 kw 4cil. ZR750LLA 7F Bastidores: ZR750LLA henceforth00001-ZR750LLA henceforth24000 2007
Kawasaki Z 750 L 98 CV, 72 kw 4cil. ZR750LLA 8F Bastidores: ZR750LLA henceforth24001-ZR750LLA henceforth58000 2008
Kawasaki Z 750 L 98 CV, 72 kw 4cil. ZR750LLA 9F Bastidores: ZR750LLA henceforth58001-ZR750LLA henceforth90000 2009
Kawasaki Z 750 L 98 CV, 72 kw 4cil. ZR750LLA AF Bastidores: ZR750LLA henceforth90001-ZR750LLA-115000 2010
Kawasaki Z 750 M ABS 106 CV, 78 kw 4cil. ZR750LMA 7F Bastidores: ZR750LMA henceforth00001-ZR750LMA henceforth24000 2007
Kawasaki Z 750 M ABS 106 CV, 78 kw 4cil. ZR750LMA 8F Bastidores: ZR750LMA henceforth24001-ZR750LMA henceforth58000 2008
Kawasaki Z 750 M ABS 106 CV, 78 kw 4cil. ZR750LMA 9F Bastidores: ZR750LMA henceforth58001-ZR750LMA henceforth90000 2009
Kawasaki Z 750 M ABS 106 CV, 78 kw 4cil. ZR750LMA AF Bastidores: ZR750LMA henceforth90001-ZR750LMA-999999 2010
Kawasaki Z 750 M ABS 106 CV, 78 kw 4cil. ZR750LMA AS Bastidores: ZR750LMA henceforth90001-ZR750LMA-999999 2010
Kawasaki Z 750 M ABS 106 CV, 78 kw 4cil. ZR750LMA BF Bastidores: ZR750LMA-115001-ZR750LMA-127000 2011
Kawasaki Z 750 M ABS 106 CV, 78 kw 4cil. ZR750LMA CF Bastidores: ZR750LMA-127001-ZR750LMA-999999 2012-2014
Kawasaki Z 750 M ABS 34 CV, 25 kw 4cil. ZR750LMA 7F Bastidores: ZR750LMA henceforth00001-ZR750LMA henceforth24000 2007
Kawasaki Z 750 M ABS 34 CV, 25 kw 4cil. ZR750LMA 8F Bastidores: ZR750LMA henceforth24001-ZR750LMA henceforth58000 2008
Kawasaki Z 750 M ABS 34 CV, 25 kw 4cil. ZR750LMA 9F Bastidores: ZR750LMA henceforth58001-ZR750LMA henceforth90000 2009
Kawasaki Z 750 M ABS 34 CV, 25 kw 4cil. ZR750LMA AF Bastidores: ZR750LMA henceforth90001-ZR750LMA-999999 2010
Kawasaki Z 750 M ABS 34 CV, 25 kw 4cil. ZR750LMA AS Bastidores: ZR750LMA henceforth90001-ZR750LMA-999999 2010
Kawasaki Z 750 M ABS 34 CV, 25 kw 4cil. ZR750LMA BF Bastidores: ZR750LMA-115001-ZR750LMA-127000 2011
Kawasaki Z 750 M ABS 34 CV, 25 kw 4cil. ZR750LMA CF Bastidores: ZR750LMA-127001-ZR750LMA-999999 2012-2014
Kawasaki Z 750 M ABS 98 CV, 72 kw 4cil. ZR750LMA 7F Bastidores: ZR750LMA henceforth00001-ZR750LMA henceforth24000 2007
Kawasaki Z 750 M ABS 98 CV, 72 kw 4cil. ZR750LMA 8F Bastidores: ZR750LMA henceforth24001-ZR750LMA henceforth58000 2008
Kawasaki Z 750 M ABS 98 CV, 72 kw 4cil. ZR750LMA 9F Bastidores: ZR750LMA henceforth58001-ZR750LMA henceforth90000 2009
Kawasaki Z 750 M ABS 98 CV, 72 kw 4cil. ZR750LMA AF Bastidores: ZR750LMA henceforth90001-ZR750LMA-999999 2010
Kawasaki Z 750 M ABS 98 CV, 72 kw 4cil. ZR750LMA AS Bastidores: ZR750LMA henceforth90001-ZR750LMA-999999 2010
Kawasaki Z 750 M ABS 98 CV, 72 kw 4cil. ZR750LMA BF Bastidores: ZR750LMA-115001-ZR750LMA-127000 2011
Kawasaki Z 750 M ABS 98 CV, 72 kw 4cil. ZR750LMA CF Bastidores: ZR750LMA-127001-ZR750LMA-999999 2012-2014
Kawasaki Z 750 R 106 CV, 78 kw 4cil. ZR750NNA NCF Bastidores: ZR750NNA henceforth09001-ZR750NNA-999999 2012-2014
Kawasaki Z 750 R 34 CV, 25 kw 4cil. ZR750NNA NCF Bastidores: ZR750NNA henceforth09001-ZR750NNA-999999 2012-2014
Kawasaki Z 750 R 98 CV, 72 kw 4cil. ZR750NNA NCF Bastidores: ZR750NNA henceforth09001-ZR750NNA-999999 2012-2014
Kawasaki Z 750 R ABS 106 CV, 78 kw 4cil. ZR750NPA PBF Bastidores: ZR750NPA henceforth00001-ZR750NPA henceforth09000 2011
Kawasaki Z 750 R ABS 106 CV, 78 kw 4cil. ZR750NPA PCF Bastidores: ZR750NPA henceforth09001-ZR750NPA-999999 2012-2014
Kawasaki Z 750 R ABS 34 CV, 25 kw 4cil. ZR750NPA PBF Bastidores: ZR750NPA henceforth00001-ZR750NPA henceforth09000 2011
Kawasaki Z 750 R ABS 34 CV, 25 kw 4cil. ZR750NPA PCF Bastidores: ZR750NPA henceforth09001-ZR750NPA-999999 2012-2014
Kawasaki Z 750 R ABS 98 CV, 72 kw 4cil. ZR750NPA PBF Bastidores: ZR750NPA henceforth00001-ZR750NPA henceforth09000 2011
Kawasaki Z 750 R ABS 98 CV, 72 kw 4cil. ZR750NPA PCF Bastidores: ZR750NPA henceforth09001-ZR750NPA-999999 2012-2014
Kawasaki Z 750 S 110 CV, 81 kw 4cil. ZR750JKA K1H Bastidores: ZR750JKA henceforth25001-ZR750JKA henceforth57000 2005
Kawasaki Z 750 S 110 CV, 81 kw 4cil. ZR750JKA K6F Bastidores: ZR750JKA henceforth57001-ZR750JKA-999999 2006
Kawasaki Z 750 S 34 CV, 25 kw 4cil. ZR750JKA K1H Bastidores: ZR750JKA henceforth25001-ZR750JKA henceforth57000 2005
Kawasaki Z 750 S 34 CV, 25 kw 4cil. ZR750JKA K6F Bastidores: ZR750JKA henceforth57001-ZR750JKA-999999 2006
Kawasaki Z 750 S 98 CV, 72 kw 4cil. ZR750JKA K1H Bastidores: ZR750JKA henceforth25001-ZR750JKA henceforth57000 2005
Kawasaki Z 750 S 98 CV, 72 kw 4cil. ZR750JKA K6F Bastidores: ZR750JKA henceforth57001-ZR750JKA-999999 2006
Kawasaki ZX-6R 636 B Ninja 118 CV, 87 kw 4cil. ZX636BBA 1H Bastidores: ZX636BBA henceforth00001-ZX636BBA henceforth23000 2003
Kawasaki ZX-6R 636 B Ninja 118 CV, 87 kw 4cil. ZX636BBA 2H Bastidores: ZX636BBA henceforth23001-ZX636BBA-999999 2004
Kawasaki ZX-6R 636 B Ninja 34 CV, 25 kw 4cil. ZX636BBA 1H Bastidores: ZX636BBA henceforth00001-ZX636BBA henceforth23000 2003
Kawasaki ZX-6R 636 B Ninja 34 CV, 25 kw 4cil. ZX636BBA 2H Bastidores: ZX636BBA henceforth23001-ZX636BBA-999999 2004
Kawasaki ZX-6R 636 B Ninja 98 CV, 72 kw 4cil. ZX636BBA 1H Bastidores: ZX636BBA henceforth00001-ZX636BBA henceforth23000 2003
Kawasaki ZX-6R 636 B Ninja 98 CV, 72 kw 4cil. ZX636BBA 2H Bastidores: ZX636BBA henceforth23001-ZX636BBA-999999 2004
Kawasaki ZX-6RR 600 K Ninja 113 CV, 83 kw 4cil. ZX600KKA 1H Bastidores: ZX600KKA henceforth00001-ZX600KKA-999999 2003
Kawasaki ZX-6RR 600 M Ninja 117 CV, 86 kw 4cil. ZX600KMA 1H Bastidores: ZX600KMA henceforth07001-ZX600KMA-999999 2004
Kawasaki ZZR 1200 C 152 CV, 112 kw 4cil. ZXT20CCA 1H Bastidores: ZXT20CCA henceforth00001-ZXT20CCA henceforth10000 2002
Kawasaki ZZR 1200 C 152 CV, 112 kw 4cil. ZXT20CCA 2H Bastidores: ZXT20CCA henceforth10001-- 2003-2004
Kawasaki ZZR 1200 C 152 CV, 112 kw 4cil. ZXT20CCA 4H Bastidores: ZXT20CCA henceforth18001-- 2005
Kawasaki ZZR 1200 C 98 CV, 72 kw 4cil. ZXT20CCA 1H Bastidores: ZXT20CCA henceforth00001-ZXT20CCA henceforth10000 2002
Kawasaki ZZR 1200 C 98 CV, 72 kw 4cil. ZXT20CCA 2H Bastidores: ZXT20CCA henceforth10001-- 2003-2004
Kawasaki ZZR 1200 C 98 CV, 72 kw 4cil. ZXT20CCA 4H Bastidores: ZXT20CCA henceforth18001-- 2005
