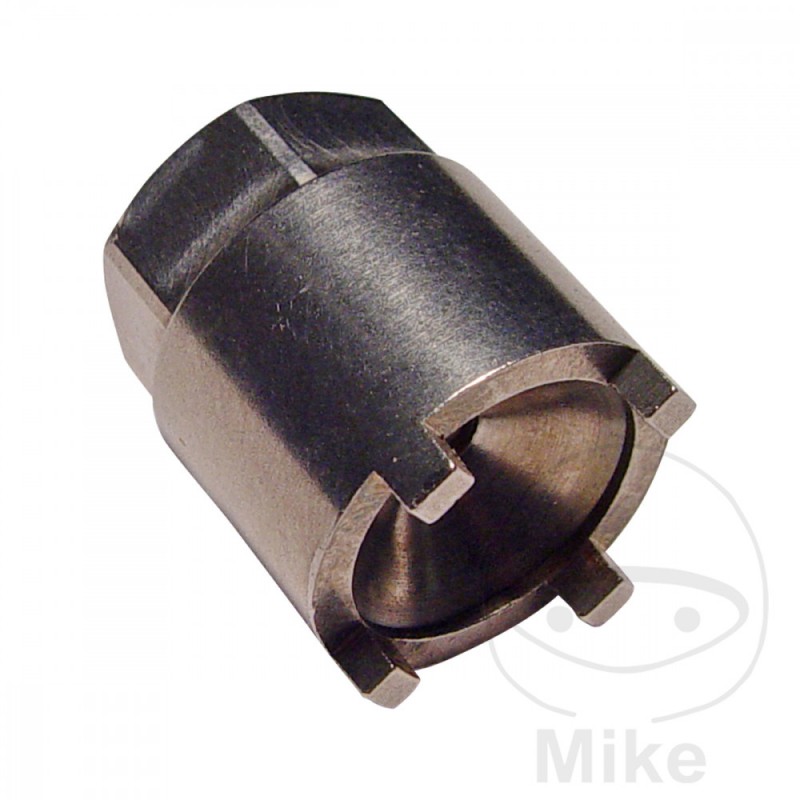

JMP slotted nut wrench 15/19 MM 722.01.40

JMP Locknut Wrench

To remove locknuts in the clutch basket of KTM 50 SX models.

- Number of pins: 4

- Outer diameter: 19mm

- Inner diameter: 15mm

- Length: 23.5mm

- 3/8 "or SW 15mm key
INSIDE DIAMETER: 14.8MM
Outer diameter: 19 mm
QUANTITY OF PINS: 4
PIN WIDTH: 1.9 MM
PIN HEIGHT: 2.7 MM
SHAPE OF THE PINS: ANGULAR
OVERALL HEIGHT: 28.5MM
DRIVE: 16 MM KEY


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM SX 50 Junior 5 CV, 3,7 kw 1cil. - Bastidores: --- 2000-2001
KTM SX 50 LC 1cil. - Bastidores: --- 2006-2007
KTM SX 50 LC 1cil. - Bastidores: --- 2017-2017
KTM SX 50 LC 10,5 CV, 7,7 kw 1cil. - Bastidores: --- 2009-2016
KTM SX 50 LC 11 CV, 8,1 kw 1cil. - Bastidores: --- 2008
KTM SX 50 LC Mini 1cil. - Bastidores: --- 2017
KTM SX 50 LC Pro-Junior 10 CV, 7,4 kw 1cil. - Bastidores: --- 2002-2005
KTM SX 50 LC Pro-Senior 12 CV, 8,8 kw 1cil. - Bastidores: --- 2002-2005
KTM SX 50 Senior 6 CV, 4,4 kw 1cil. - Bastidores: --- 2000-2001
