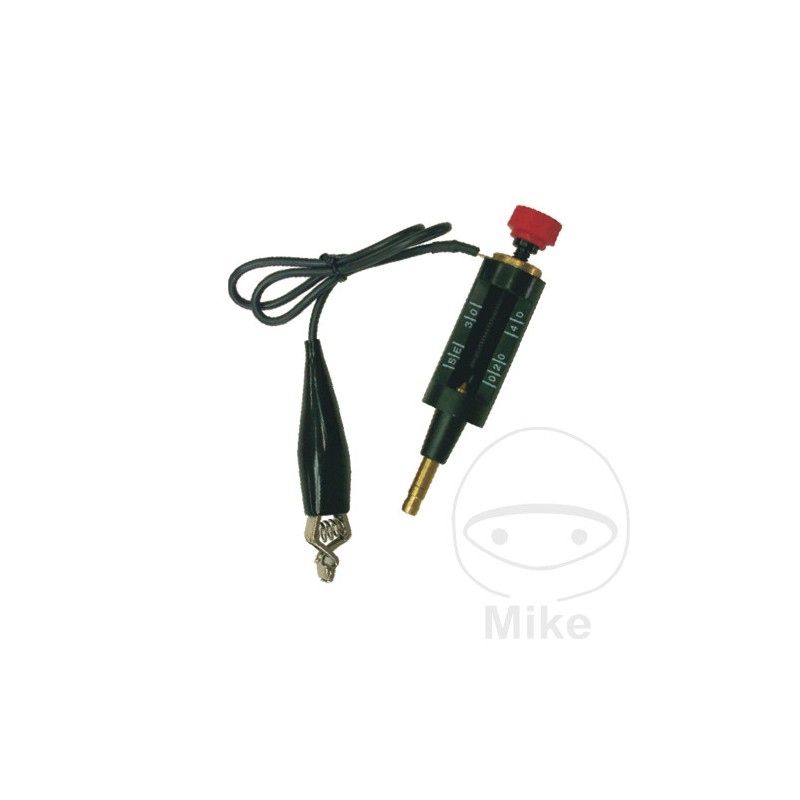

JMP ignition spark tester 722.52.87

JMP ignition system tester

- Measuring range: 0 to 40,000 volts

Suitable for ignition control and performance.

Performance can be measured by adjusting the installed screw.

App:

- Remove the spark plug and insert the spark tester.

If necessary, the adapter can be screwed out -y.

Attach ground clamp -

- Adjust the screw to approximately 10mm from a (an intact ignition system should cause a skip gap of approximately 15mm)

- Make sure the spark tester cannot get close to grounding out.

- The engine can be started

IMPORTANT:

- On multi-cylinder engines, the remaining spark plug must be grounded (which otherwise leads to damage to ignition parts)

- In case of being enlarged, take into account that spark plugs mixed with explosives may leak through the candle openings.

- The adjustment of the radio connection on the screw must only be carried out with the engine off

- When the ignition is neither the ignition system nor the Zündfunkentester can touch
