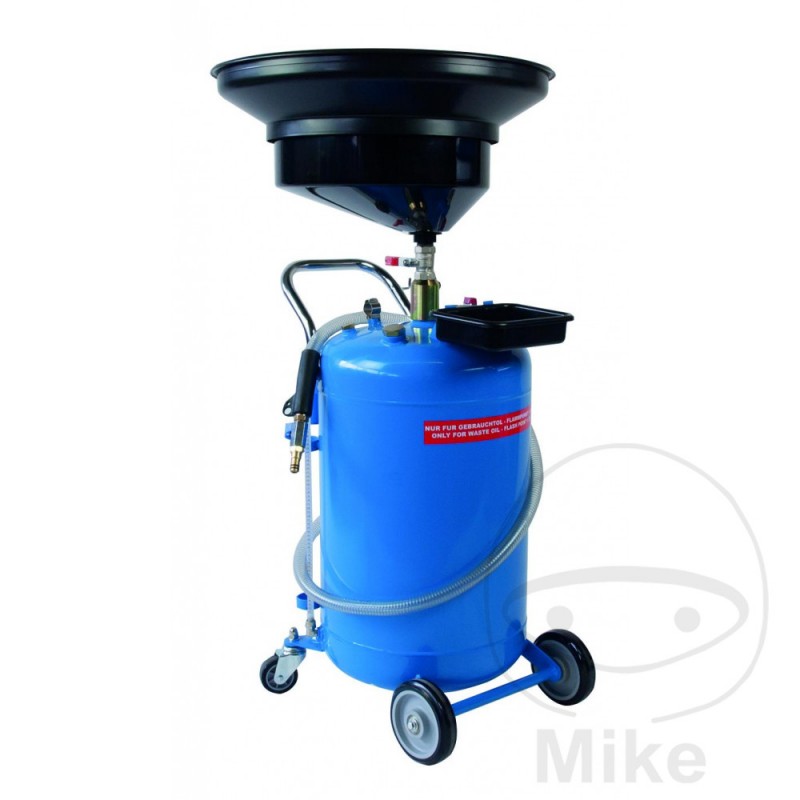

used oil drum 650.50.10

Fast Mobile Used Oil Receiver AOG 1003/3

Simple height-adjustable used oil collection device, for collecting used oil / used oil GF AIII VbF under tail lifts. Emptying by compressed air (pneumatic discharge).

Description:

With 4 wheels, including 2 swivel wheels with steering bracket

2 m spiral delivery hose (transparent fabric hose, also serves as a level indicator)

Level indicator with measurement scale.

Stopcock and clamping screw for pressure relief

Pressure reducer (pressure regulator), set at 0.8 bar.

Round collecting funnel Ø 600 mm

Security valve

Technical data:

Container volume: 80 liters.

Working pressure: 0.8 bar

Min. working height: 1200 mm

Maximum working height: 1600 mm.

Ø collecting container: 600 mm

Suction / Dispense Hose: 2000mm

Dimensions (LxWxH): 500 x 500 x 1250mm

Weight: 35 kilograms
