Analog engine compression gauge XL 21BAR 614.61.03

Busching XL analog compression gauge 21 bar

For a quick and accurate check of the compression pressure in gasoline engines.

The pressure gauge is equipped with a rubber protection cap and a drain valve (vent valve).

The adapter connection is made using the quick coupling

in plastic box

Thread Sizes:

M10 x 1.0mm, length 38mm

M12 x 1.25mm, length 40mm

M14 x 1.25mm, length 46mm

M16 x 1.5mm, length

M18 x 1.5mm, length 33mm

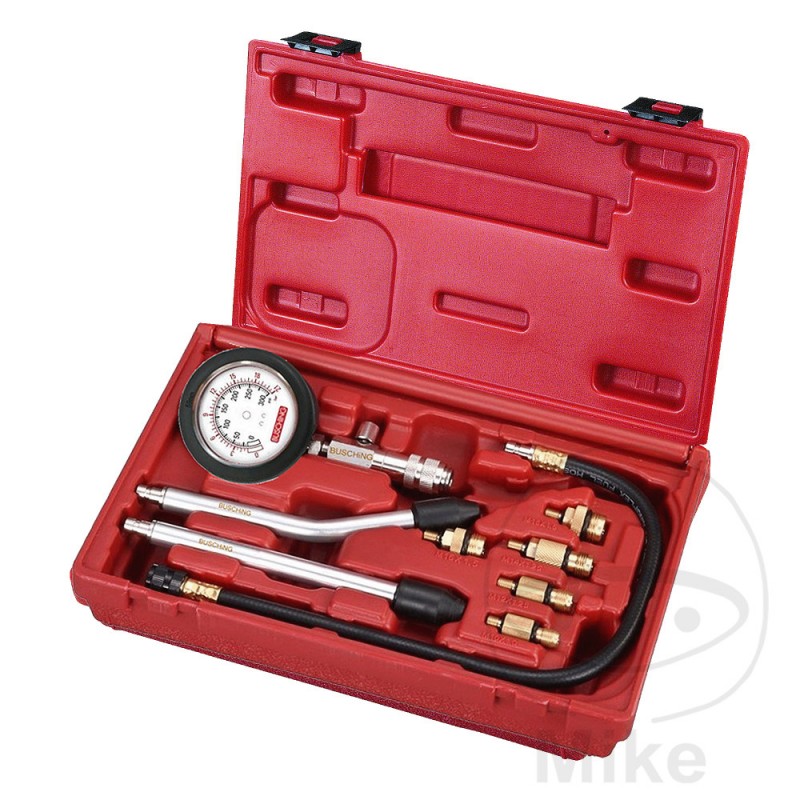

Scope of supply:

1x pressure gauge ø 76mm with pressure release valve, total length 145mm

5x thread adapter

1x Straight pressure tube, length 186mm

1x Pressure tube angled, length 186mm

1x extension hose with quick coupling, length 460 mm

1x Plastic case
